VL AFTERMARKET TANK LEVEL IND. - - SINGLE SCALE - 0 - 1/1 - 3-180 OHM - DOUBLE LENS - ROUND WHITE BEZEL - A2C59514184

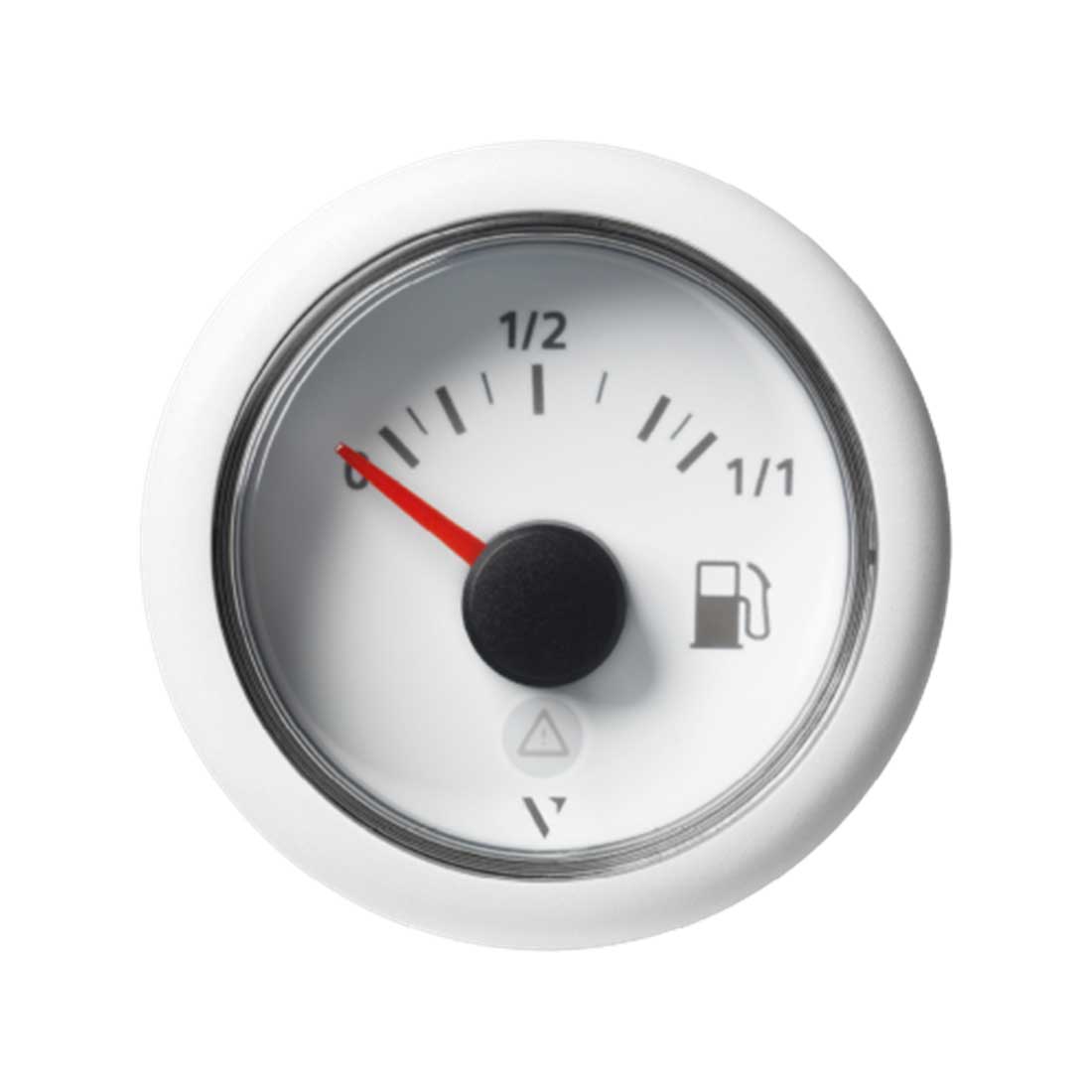

Veratron VL Fuel Level Gauge

• Dial Scale Outer: 0 - 1⁄2 - 1⁄1
• Ohm Range: 3-180Ω
• Function: Fuel level
• Installation Dimension: 2 1⁄16" (52mm)
• Series: ViewLine

Highlights

• 8 pole Tyco / Hirschmann MQS plug
• +/- 3.6° angle degree accuracy over the entire display range
• Operating voltage 8 - 32 V
• Integrated warning alarm
• Input signal: standard values
• Optional make point switch can be connected
• Reverse polarity protection
• Anti-fog double lens
• Front side protection rating IP67
• installation diameter
• 50 mm installation depth
