Lauderdale Speedometer & Compass

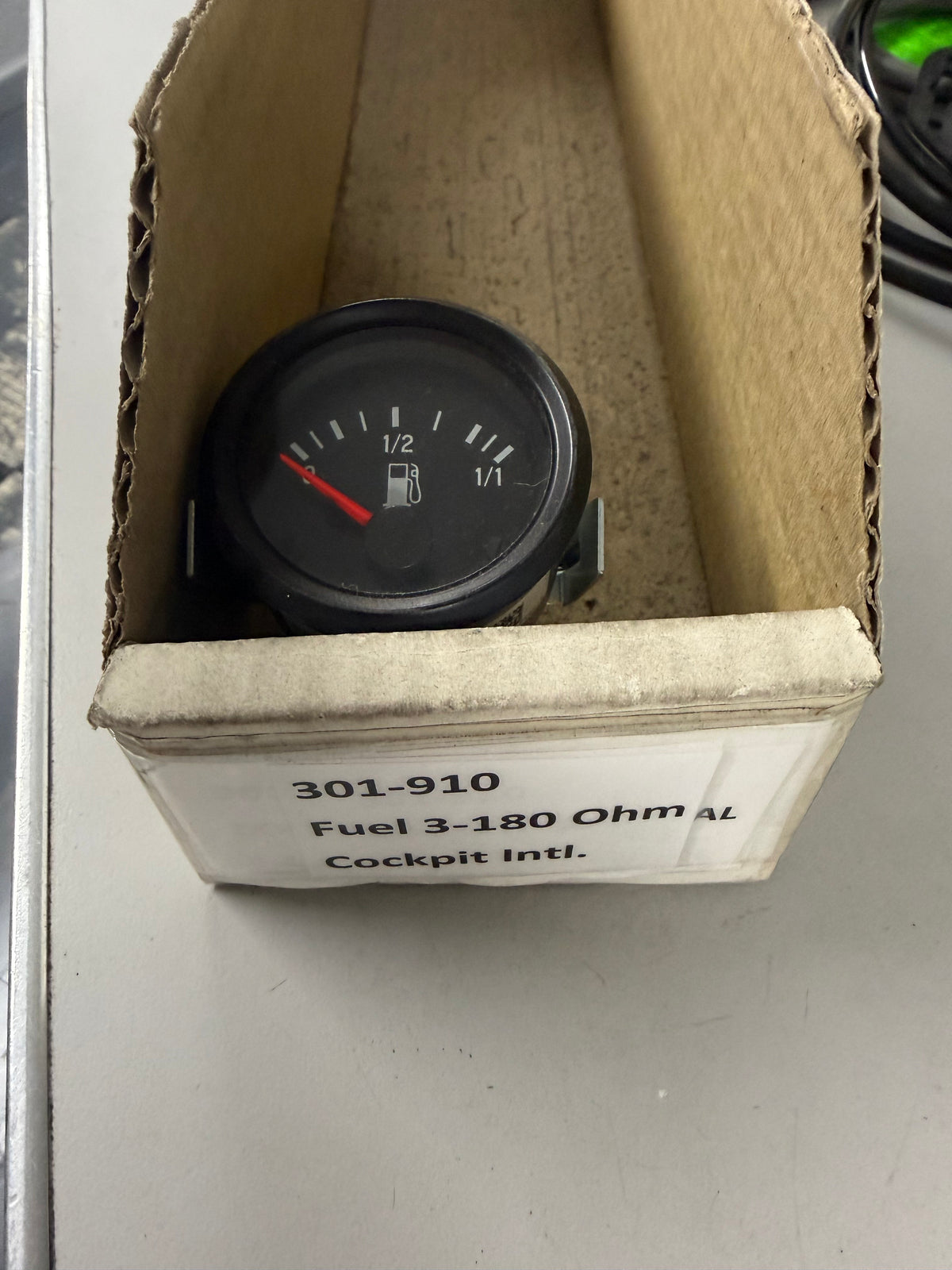

VDO 301-910 Cockpit International Series Electrical Fuel Level Gauge designed for highly accurate tank tracking
VDO 301-910 Cockpit International Series Electrical Fuel Level Gauge designed for highly accurate tank tracking
No reviews
Regular price
$65.00 USD
Regular price
Sale price
$65.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Core Technical Specifications
- Series: Cockpit International
- Gauge Type: Electrical Fuel Level (Short Sweep Analog Layout)
- Ohmic Calibration: 10Ω (Empty) to 180Ω / 184Ω (Full)—calibrated specifically for standard universal VDO resistive level senders.
- Diameter Size: Standard 2-1/16 inches (52mm metric diameter cutout).
- Operating Voltage: 12V DC.
- Electrical Connection: .250" Male spade terminals (as opposed to standard M4 metric metal screw studs), providing rapid pull-and-plug connection paths during dash integration.
- Cockpit Styling Profile: Traditional flat matte black dial face, crisp high-contrast white indexing graphics (Empty – 1/2 – Full), an illuminated solid red pointer needle, and a signature rugged black-painted brass bezel.
- Housing Construction: Heavy-duty zinc-plated metal body matched to a single-pane mineral glass lens, earning an IP64 water- and dust-resistance barrier built to isolate internal mechanics from extreme vibration.
- Mounting Type: Installs securely using a rear metal U-bracket mounting assembly.
