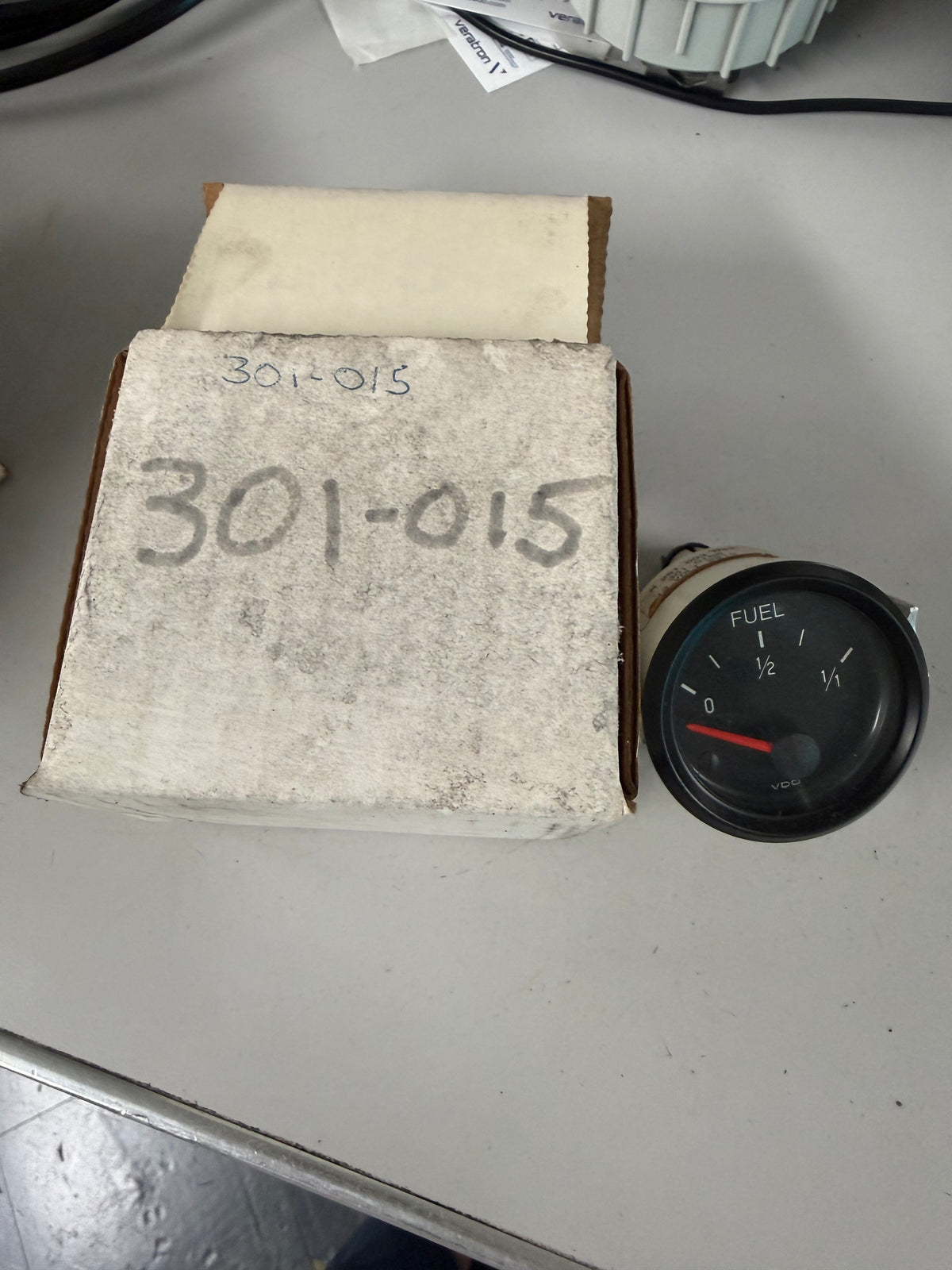

VDO 301-015 Cockpit Series Electrical Fuel Level Gauge
VDO 301-015 Cockpit Series Electrical Fuel Level Gauge
No reviews
Regular price
$39.00 USD
Regular price
Sale price
$39.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Core Technical Specifications
- Series: Cockpit
- Gauge Type: Electrical Fuel Level
- Ohmic Operating Range: 10Ω (Empty) to 180Ω / 184Ω (Full)—calibrated specifically for standard VDO resistive fuel level sending units.
- Diameter Size: Standard 2-1/16 inches (52mm metric panel cutout).
- Display Range: Short-sweep analog layout reading Empty – 1/2 – Full (0 - 1/2 - 1/1).
- Operating Voltage: 12V DC.
- Electrical Connection: Rear .250" male spade terminals.
- Advanced Mounting: Equipped with VDO's patented Spin-Lok™ mounting hardware, utilizing a spin-on clamp ring that delivers a full 360 degrees of uniform pressure to securely anchor the housing without warping the dash panel.
- Cockpit Styling Profile: A sleek, flat matte black dial face, crisp white graphics, an illuminated deep red pointer needle, and a clean classic black bezel.
