Lauderdale Speedometer & Compass

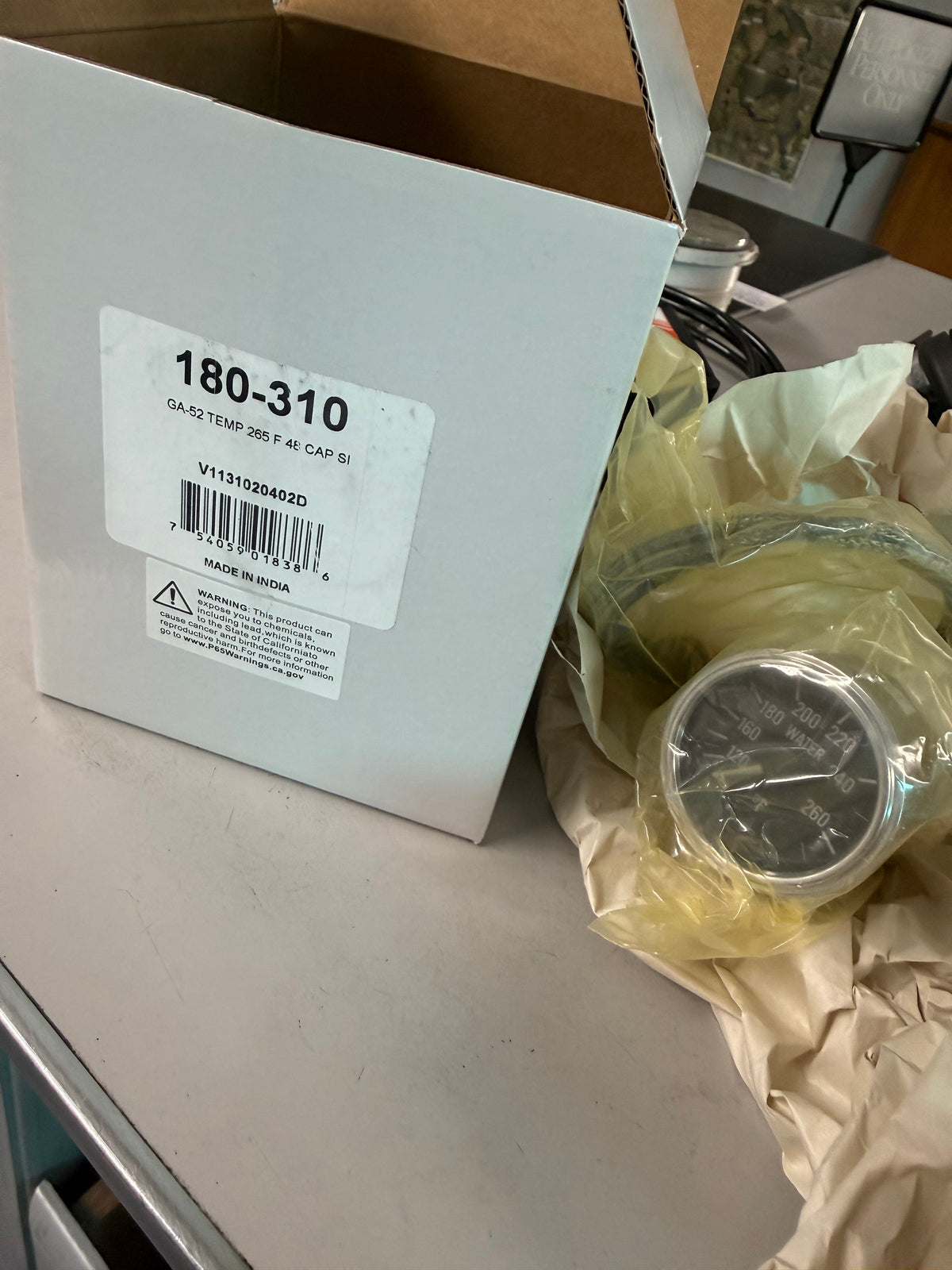

VDO 180-310 Series 1 (S1) Mechanical Water Temperature Gauge designed with a compact capillary line
VDO 180-310 Series 1 (S1) Mechanical Water Temperature Gauge designed with a compact capillary line
No reviews
Regular price
$97.50 USD
Regular price
Sale price
$97.50 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Core Technical Specifications
- Series: Series 1 (S1) [1, 2]
- Measurement Scale: 110°F to 265°F (Full 270-degree sweep layout) [1, 2, 3]
- Capillary Tube Length: Compact 48 inches (4 feet) [1, 2]
- Diameter Size: Standard 2-1/16 inches (52mm metric diameter cutout) [1, 2]
- Fitting Connection: 1/2"-14 NPT thread pitch [1, 2]
- Operating Voltage: 12V DC (strictly used for traditional incandescent white flood backlighting) [1, 2]
- Retro Aesthetics: Styled with a matte black dial face, crisp white graphics, a solid white pointer needle, and the signature stepped chrome-plated brass bezel. [1, 2]
-
Housing & Protection:
Rugged zinc-plated steel housing built with a single glass lens, yielding an IP64 water-resistance rating. It installs securely using a standard metal rear U-bracket. [1, 2, 3]
