Lauderdale Speedometer & Compass

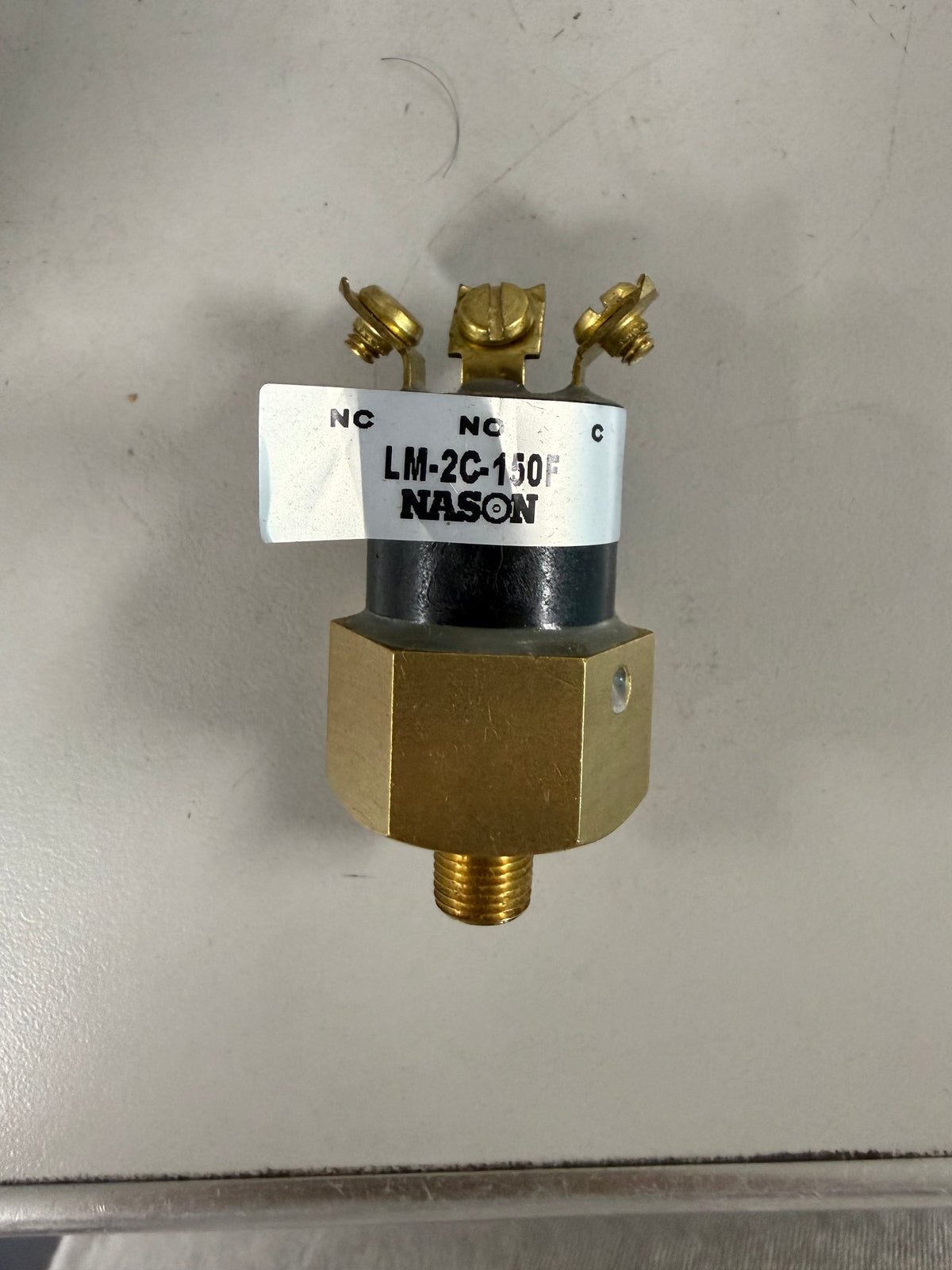

Nason LM-2C-150F is a factory-preset, heavy-duty mechanical low-pressure switch calibrated for demanding pneumatic and hydraulic systems
Nason LM-2C-150F is a factory-preset, heavy-duty mechanical low-pressure switch calibrated for demanding pneumatic and hydraulic systems
No reviews
Regular price
$123.49 USD
Regular price
Sale price
$123.49 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Core Technical Specifications
- Media Connection: 1/8"-27 NPT Male (Standard Brass base)
- Circuit Form: SPDT (Single Pole Double Throw — includes both Normally Open and Normally Closed configurations)
- Fixed Set Point: 150 PSI, Falling direction
- Electrical Rating: 10 A @ 125/250 VAC / 5 A @ 30 VDC
- Maximum Operating Pressure: 2,000 PSI (137 Bar)
- Proof Pressure: 6,000 PSI (413 Bar)
- Diaphragm Material: Long-life Elastomer / Buna Nitrile
- Environmental Protection: NEMA 4 and NEMA 13 weatherproofin
