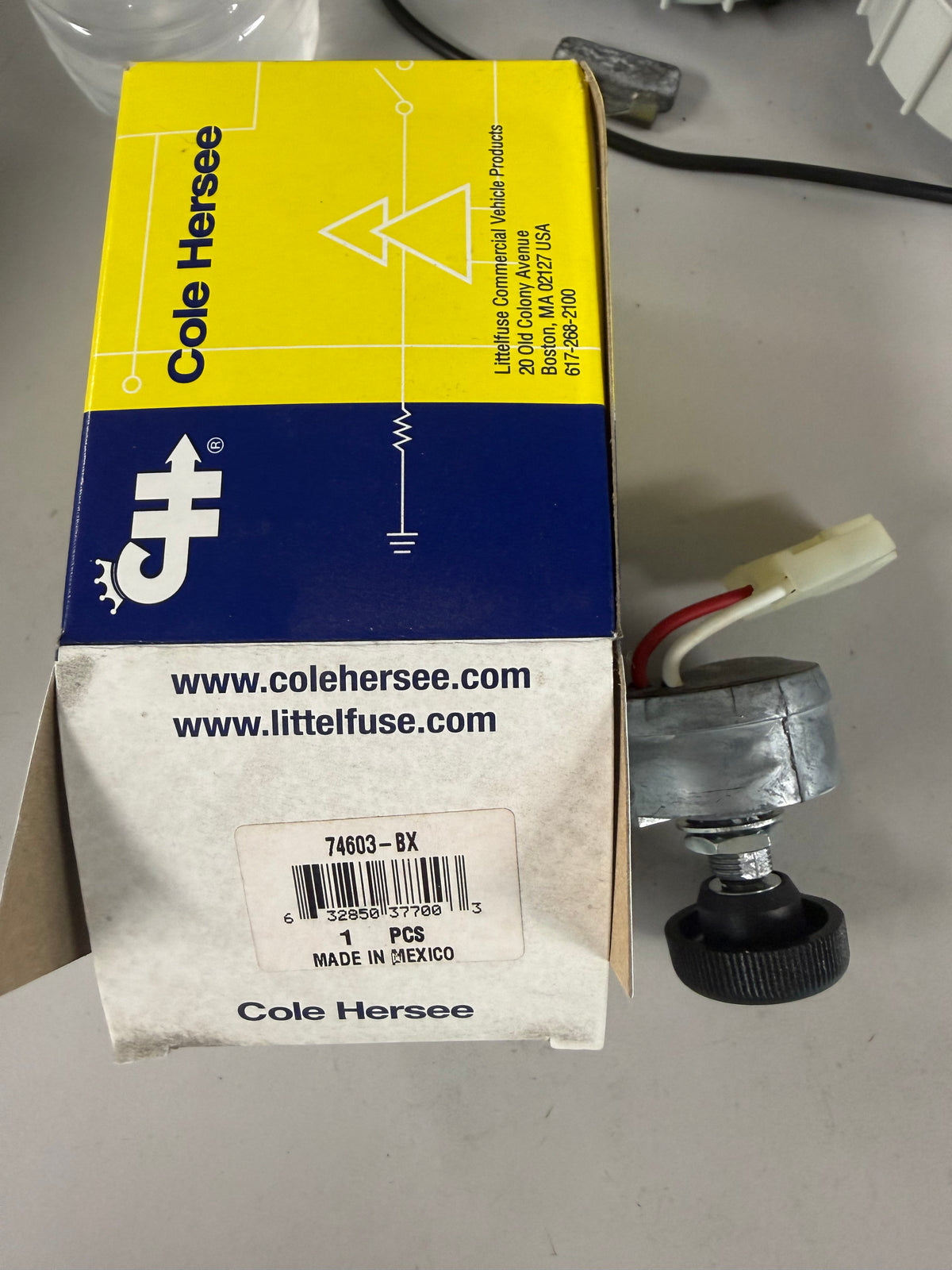

Cole Hersee 74603-BX heavy-duty 12V DC Electronic Rotary Dimmer Switch
Cole Hersee 74603-BX heavy-duty 12V DC Electronic Rotary Dimmer Switch
No reviews
Regular price
$58.46 USD
Regular price
Sale price
$58.46 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Core Specs
- Application: Variable intensity control for vehicle interior and dashboard lighting
- Voltage Rating: Engineered for 12V DC negative ground systems (14.7V DC maximum)
- Current Rating: 6 Amps continuous capacity
- Duty Cycle: 1% to 99% operational spectrum
- Housing: Diecast case measuring 1-9/16" (39.7mm) in diameter and 0.88" (22.4mm) long, equipped with an O-ring seal
- Mounting Stem: 7/16"-28 thread mounting stem, 0.45" (11.4mm) long
- Knob: Black plastic knob with a metal insert and set screw, imprinted with the white SAE variable intensity symbol
- Wiring Terminals: Two wire leads (Load and Battery) measuring 2" (50.8mm) long, terminated with AMP connectors (Load: 480054-3, Battery: 480053-3)
