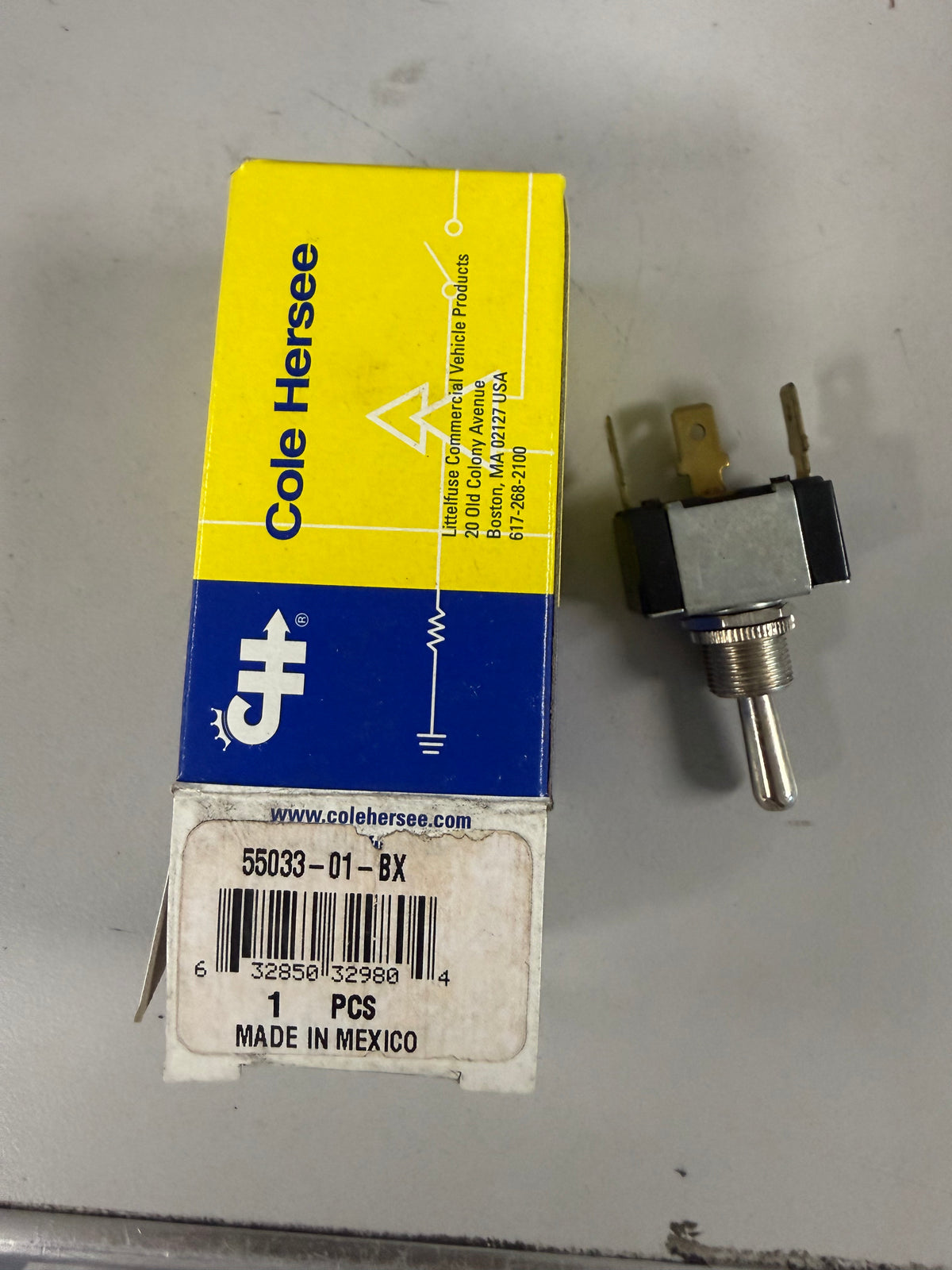

Cole Hersee 55033-01-BX heavy-duty Single-Pole, Double-Throw (SPDT) Momentary Toggle Switch

Cole Hersee 55033-01-BX heavy-duty Single-Pole, Double-Throw (SPDT) Momentary Toggle Switch

$12.37 USD
$12.37 USD
Sale Sold out
Shipping calculated at checkout.
Core Specs

  • Circuitry: Single-Pole, Double-Throw (SPDT) [1]
  • Switch Action: Momentary On - Off - Momentary On [1]
  • Electrical Ratings: Robust multi-voltage capacity:
    • 25A at 12V DC
    • 15A at 24V DC
    • 10A at 36V DC [1]
  • Terminals: 3 blade terminals (0.250" quick-connect layout) [1, 2]
  • Contacts: High-conductivity silver contacts resist corrosion and arcing. [1, 2]
  • Housing & Construction: Moisture-resistant phenolic housing with a plated steel cap. [1, 2]
  • Actuator: Standard 11/16" (17.5mm) long nickel-plated brass handle. [1, 2]
  • Mounting: 15/32"-32 thread nickel-plated brass mounting stem (15/32" / 11.9mm long) with a keyway; fits panels up to 1/4" (6.4mm) to 9/32" (7.1mm) thick
