Lauderdale Speedometer & Compass

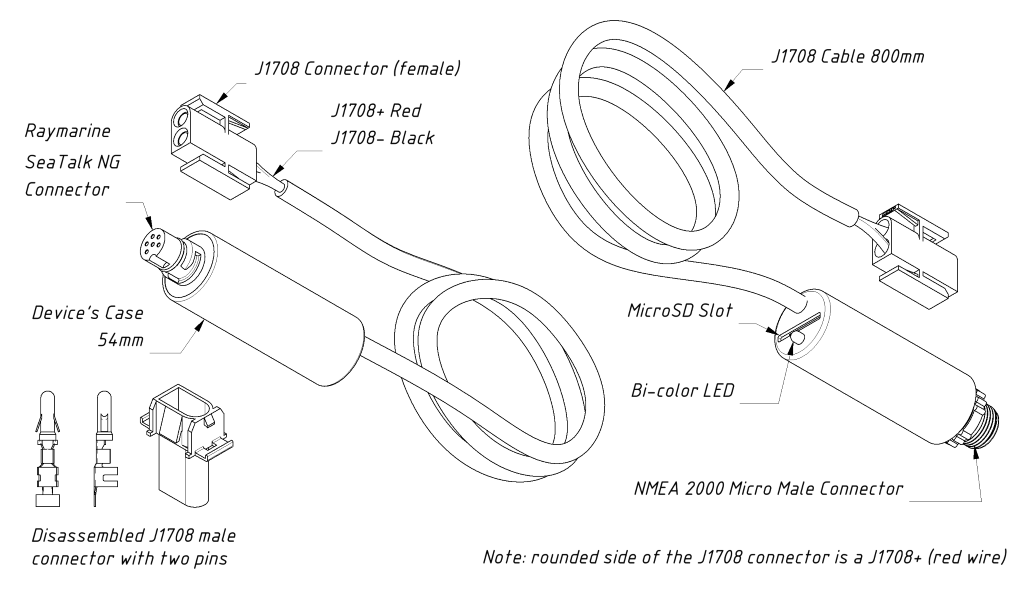

Yacht Device J1587/J1708 Gateway - YDES-04

Yacht Device J1587/J1708 Gateway - YDES-04

Precio habitual $289.99 USD
Precio habitual Precio de oferta $289.99 USD
Oferta Agotado
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.

Convert older engines from J1587 or J1708 to NMEA2000. These gateways have been tested on a wide range of engines and the capabilities keep expanding.

If you have Caterpillar, Cummins, DDEC displays, Volvo Penta with EDC1 or 2 you can use these gateways to convert those motors to NMEA2000. Tested so far on the field from 1996 and up engines.

This gateway can be configured before being shipped for engine 1 or 2. Make sure to contact us to make that configuration for you. Current parameters available listed below.

 N2K PGN N2K Parameter Name J1587 KAD
 127488 Engine speed (RPM) yes yes
Engine boost pressure yes yes
Engine tilt/trim
 127489 Engine oil pressure yes (substitute)
Engine oil temperature yes (substitute)
Engine coolant temp yes yes
Alternator potential yes yes
Fuel rate yes yes
Total engine hours yes yes
Engine coolant pressure yes (substitute)
Fuel pressure yes (substitute)
Engine discrete status (alarms) yes (user only)
Percent engine load yes (no)
Percent engine torque yes
 127493 Transmission gear yes (yes)
Transm. oil pressure yes (substitute)
Transm. oil temperature yes (substitute)
Transmission status (alerts) yes
 127498 Rated engine speed yes yes
VIN (engine serial number) yes yes
Software ID (model number) yes yes
 127505 Fuel Type (yes)
Fuel Level yes
Tank capacity (yes)
 127508 Battery Potential yes yes
Battery current yes
Battery case temperature
