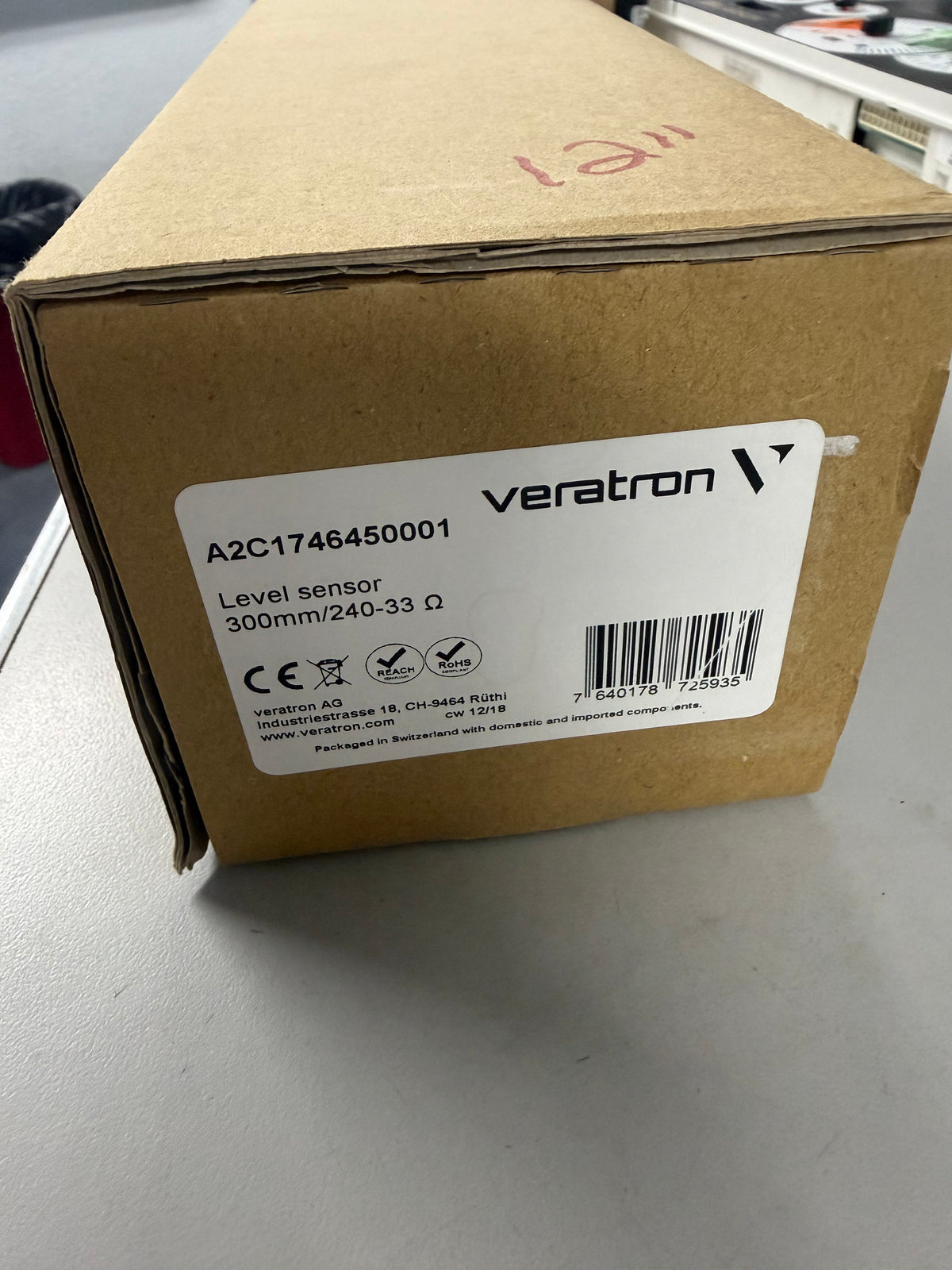

Veratron A2C1746450001 high-precision, heavy-duty 300mm tubular liquid level sensor
Veratron A2C1746450001 high-precision, heavy-duty 300mm tubular liquid level sensor
No reviews
Precio habitual
$59.00 USD
Precio habitual
Precio de oferta
$59.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Key Specifications
| Feature | Specification | Detail / Purpose |
|---|---|---|
| Part Number | A2C1746450001 | Official manufacturer SKU |
| Sensor Length | 300 mm | Best for shallow tanks (requires at least a 4mm bottom clearance) |
| Resistance / Calibration | 240–33 Ω | Standard ABYC American marine protocol (Full to Empty) |
| Tube Diameter | 38 mm | Compact vertical profile |
| Material | Stainless Steel | Resists corrosion from fuel, oil, petroleum, diesel, gasoline, and water |
| Connector Type | TE Superseal 2-Pole | Waterproof marine-grade connection plug |
| Protection Rating | IP67 | Dust-tight and highly water-resistant |
| Operating Temp Range | -25°C to 65°C (-13°F to 149°F) | Stable across severe temperature extremes |
| Operating Voltage | 6 to 24 VDC | Compatible with standard 12V and 24V marine systems |
