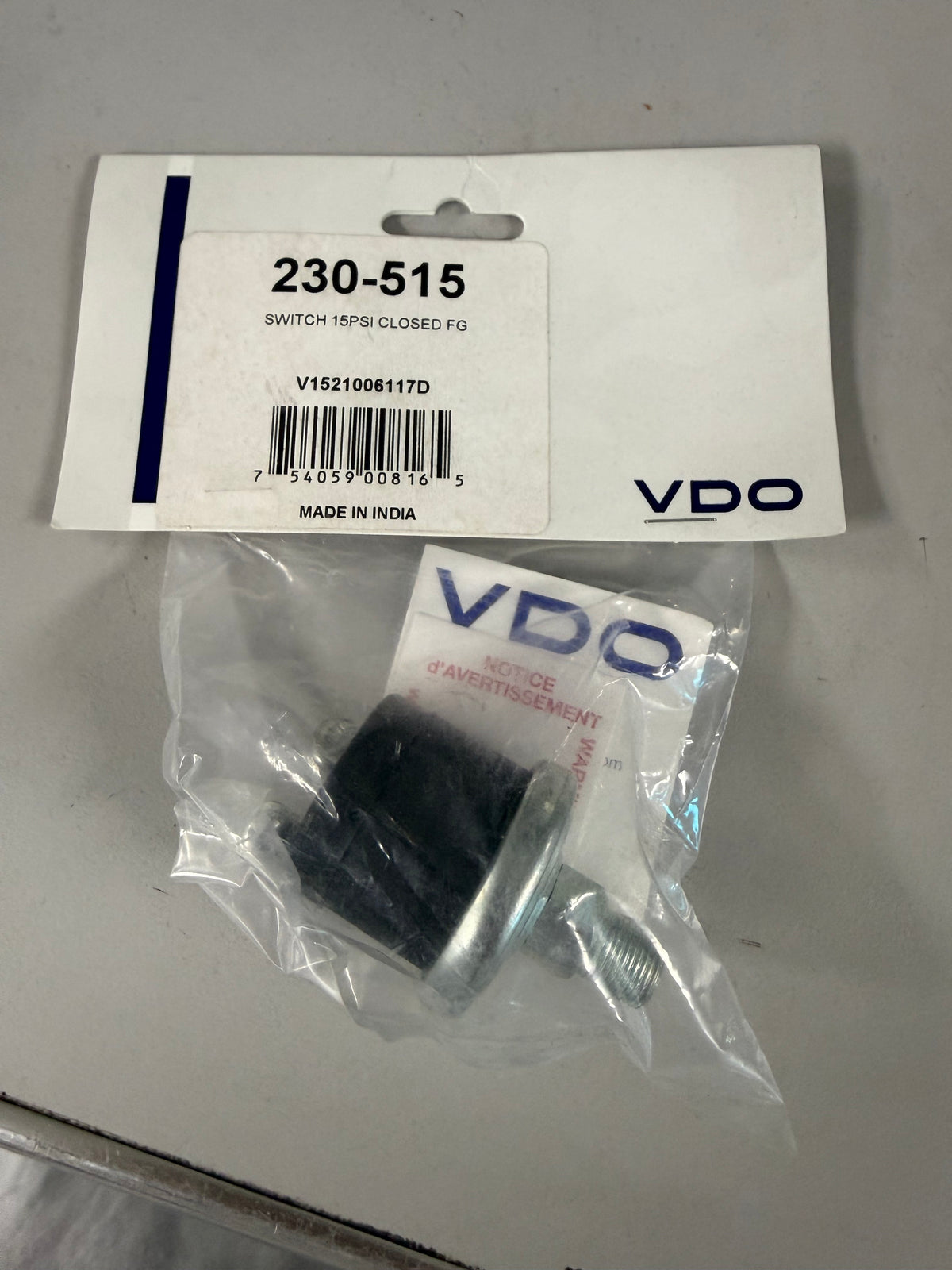

VDO heavy-duty, single-circuit oil/fluid pressure safety switch configured with a 15 PSI contact point #230-515
VDO heavy-duty, single-circuit oil/fluid pressure safety switch configured with a 15 PSI contact point #230-515
No reviews
Precio habitual
$13.99 USD
Precio habitual
Precio de oferta
$13.99 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Key Technical Specifications
- Circuit Type: Normally Closed (N.C.) — The internal contacts remain closed when there is zero pressure, completing the circuit to ground or power. Once the system pressure rises above 15 PSI, the contacts snap open to break the circuit. [1, 2]
- Grounding: Floating ground with 2 screw terminals (#8-32 thread size). Because it is floating, it isolates the electrical circuit from the engine block. [1, 2]
- Thread Fitting: Standard 1/8"-27 NPT male pipe thread. [1]
-
Electrical Capacity: Built with highly robust silver alloy contacts rated across a 6V to 24V DC range.
[1, 2]
