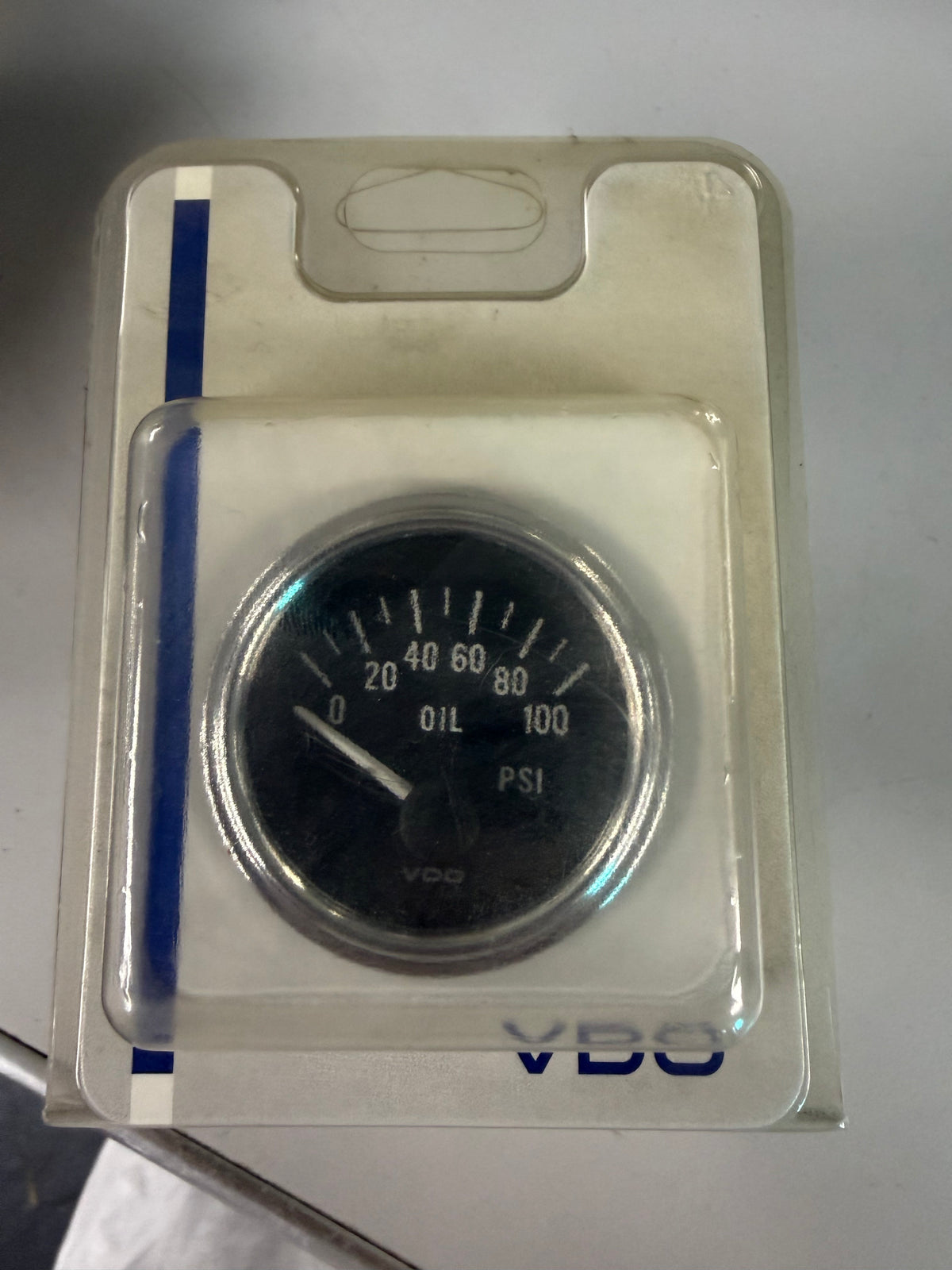

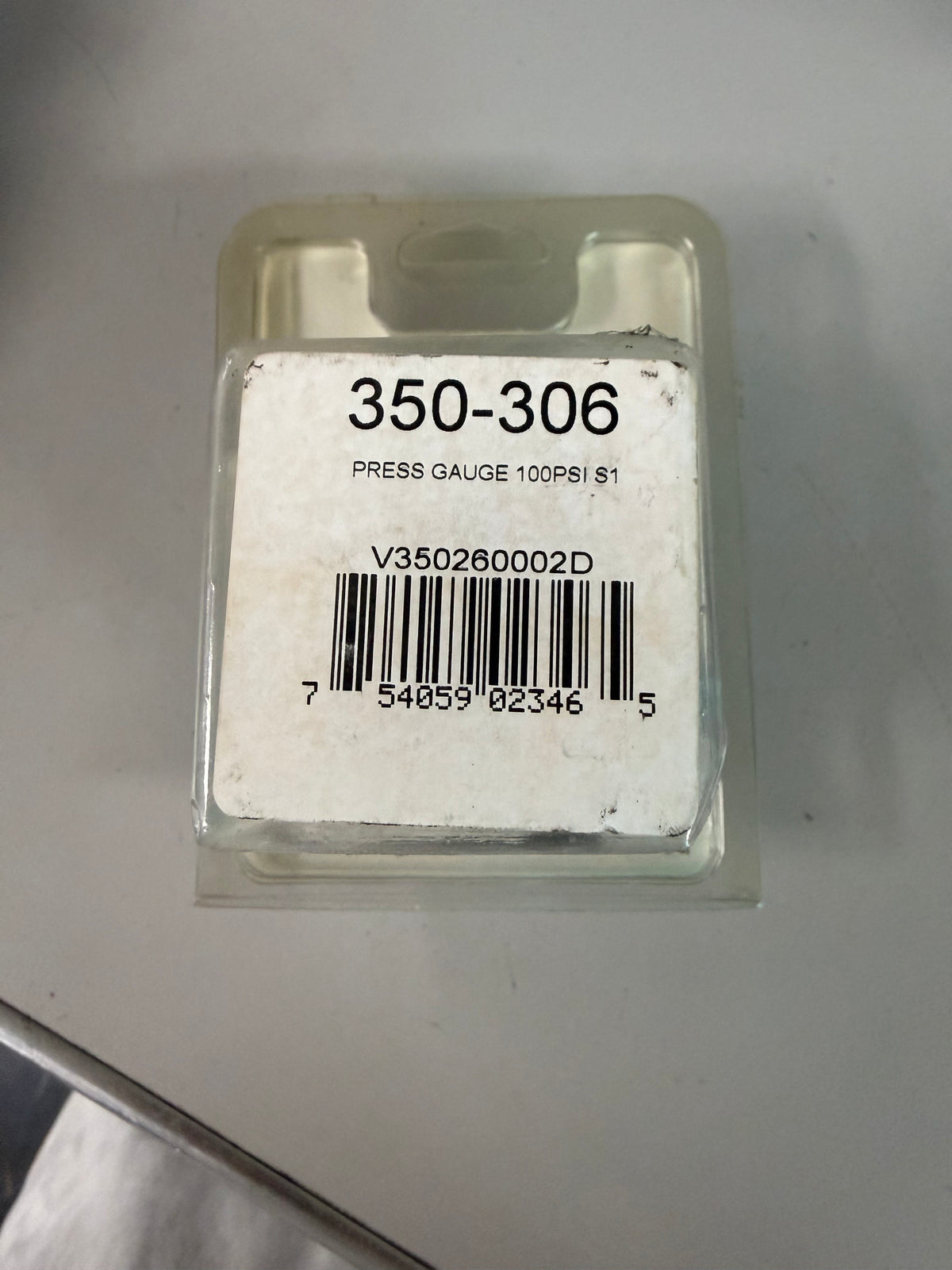

VDO 350-306 Series 1 (S1) Electrical Oil Pressure Gauge
VDO 350-306 Series 1 (S1) Electrical Oil Pressure Gauge
No reviews
Precio habitual
$59.00 USD
Precio habitual
Precio de oferta
$59.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Technical Specifications
- Series: Series 1 (S1) [1]
- Gauge Type: Electrical Oil Pressure [1]
- Pressure Scale: 0 to 100 PSI (Short sweep analog layout) [1, 2]
- Ohmic Signal Range: 10Ω (0 PSI) to 180Ω (100 PSI) [1]
- Diameter Size: Standard 2-1/16 inches (52mm metric cutout) [1, 2]
- Operating Voltage: 12V DC [1]
- Vintage Design Profile: Styled with a matte black dial face, high-contrast white numerals, a solid white pointer needle, and a signature stepped chrome-plated bezel. [1, 2]
-
Housing & Connections: Rugged zinc-plated steel housing built with rigid M4 stud-type electrical connectors and a metal rear U-bracket mounting solution.
[1, 2]
