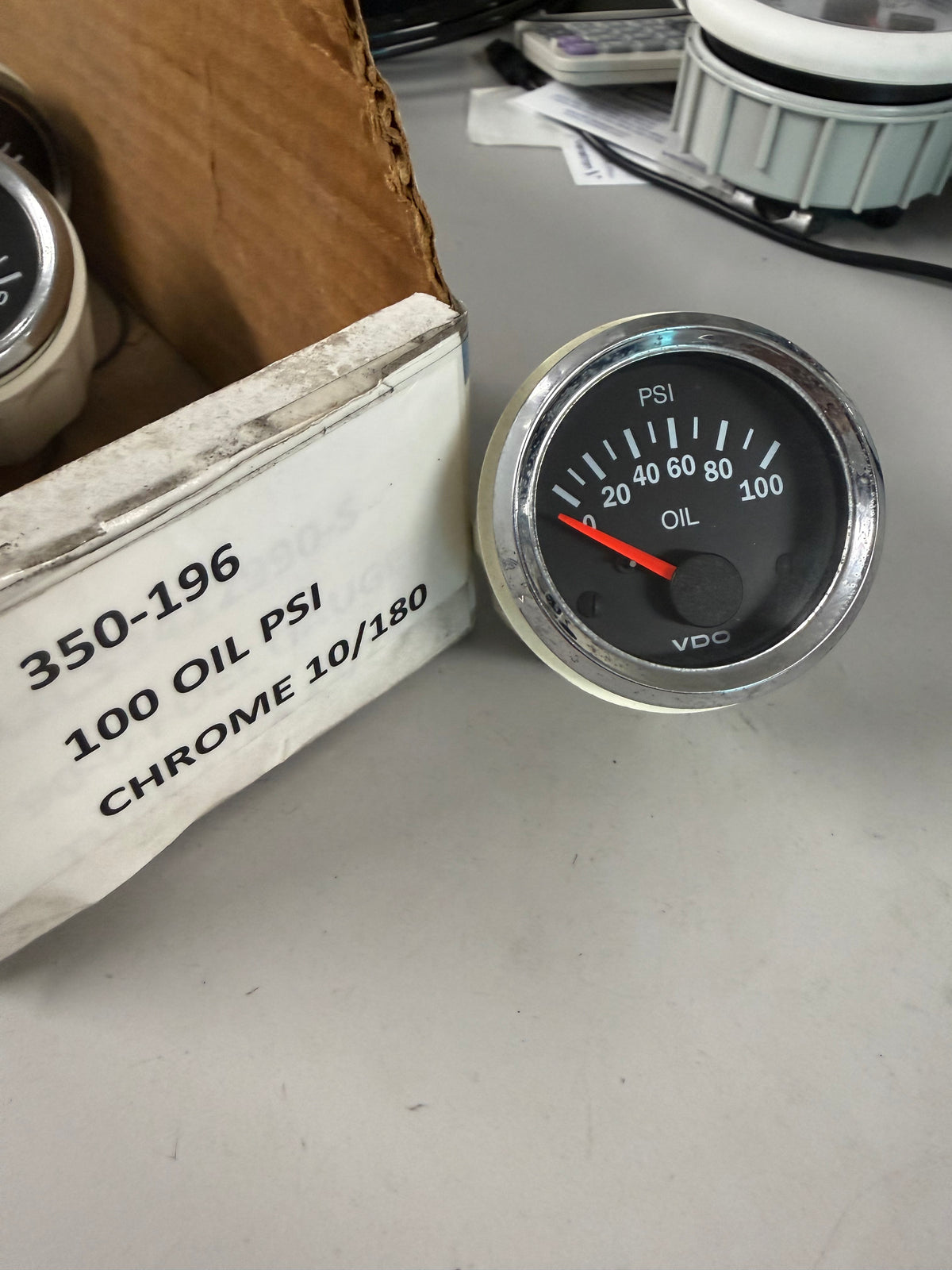

VDO 350-196 Vision Chrome Series Electrical Oil Pressure Gauge
VDO 350-196 Vision Chrome Series Electrical Oil Pressure Gauge
No reviews
Precio habitual
$47.50 USD
Precio habitual
Precio de oferta
$47.50 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Technical Specifications
- Series: Vision Chrome
- Gauge Type: Electrical Oil Pressure
- Pressure Scale: 0 to 100 PSI (Short sweep analog layout)
- Ohmic Signal Range: Calibrated specifically for the standard 10Ω to 180Ω VDO resistance curve.
- Diameter Size: Standard 2-1/16 inches (52mm metric diameter cutout).
- Operating Voltage: 12V DC.
- Premium Vision Aesthetics: Styled with a clean matte black dial face, crisp clear white indexing numbers, a translucent red pointer needle, and a striking polished chrome bezel.
- Advanced Illumination: Features Tri-Optic through-dial fiber optic backlighting. Standard retail packaging includes colored diffuser clips that fit over the rear bulb socket, letting you instantly shift the nighttime lighting theme from soft white to Red or Green.
- Spin-Lok™ Mounting: Uses VDO's patented spin-on clamp ring hardware. This collar eliminates the need for old-school metal U-brackets and nuts, applying 360 degrees of uniform pressure to securely anchor the instrument housing without warping the dash panel.
- Electrical Connection: Standard .250" rear male spade terminals.
