Lauderdale Speedometer & Compass

VDO 333-965 Cockpit International Series Electrical Programmable Tachometer

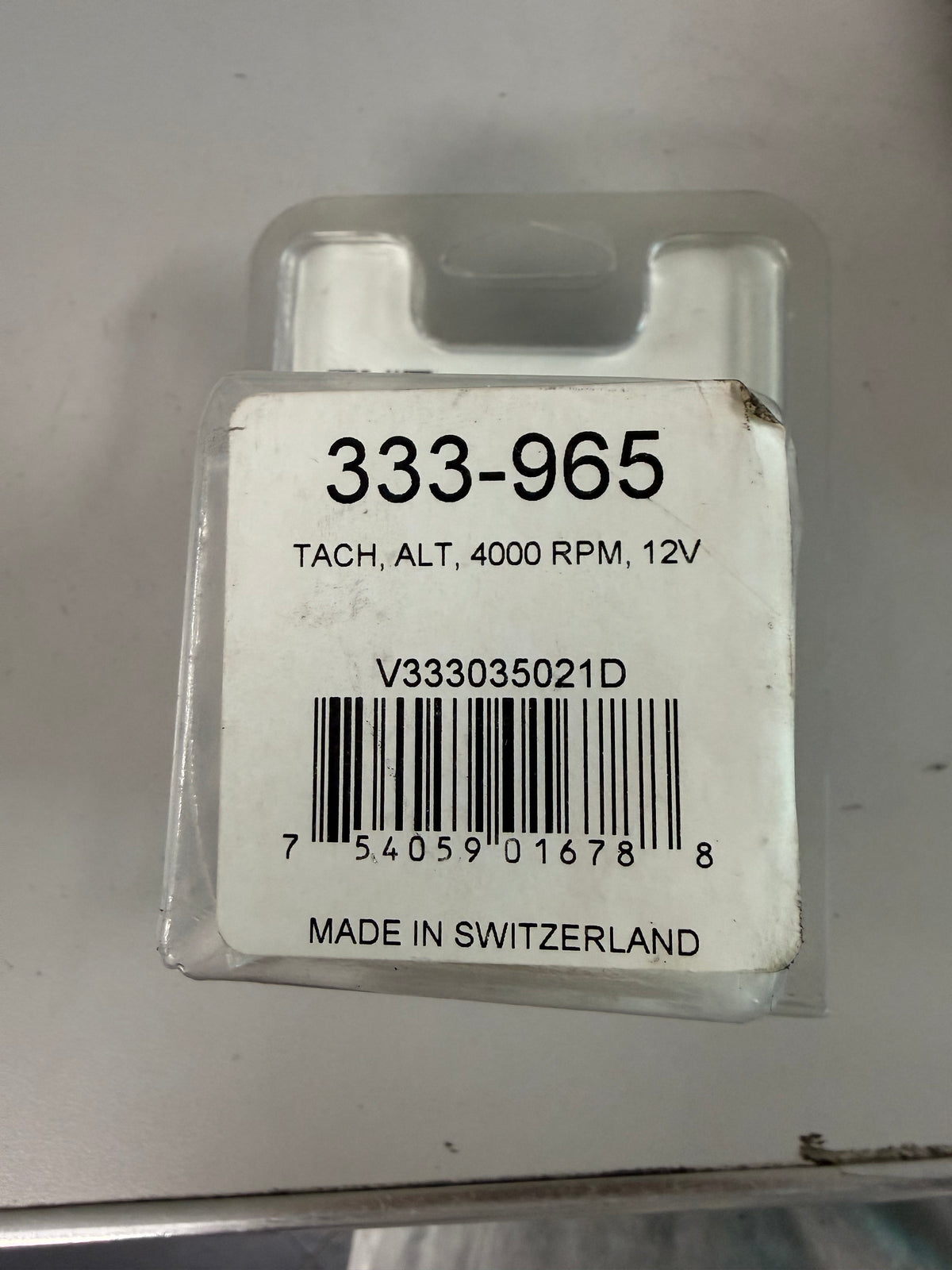

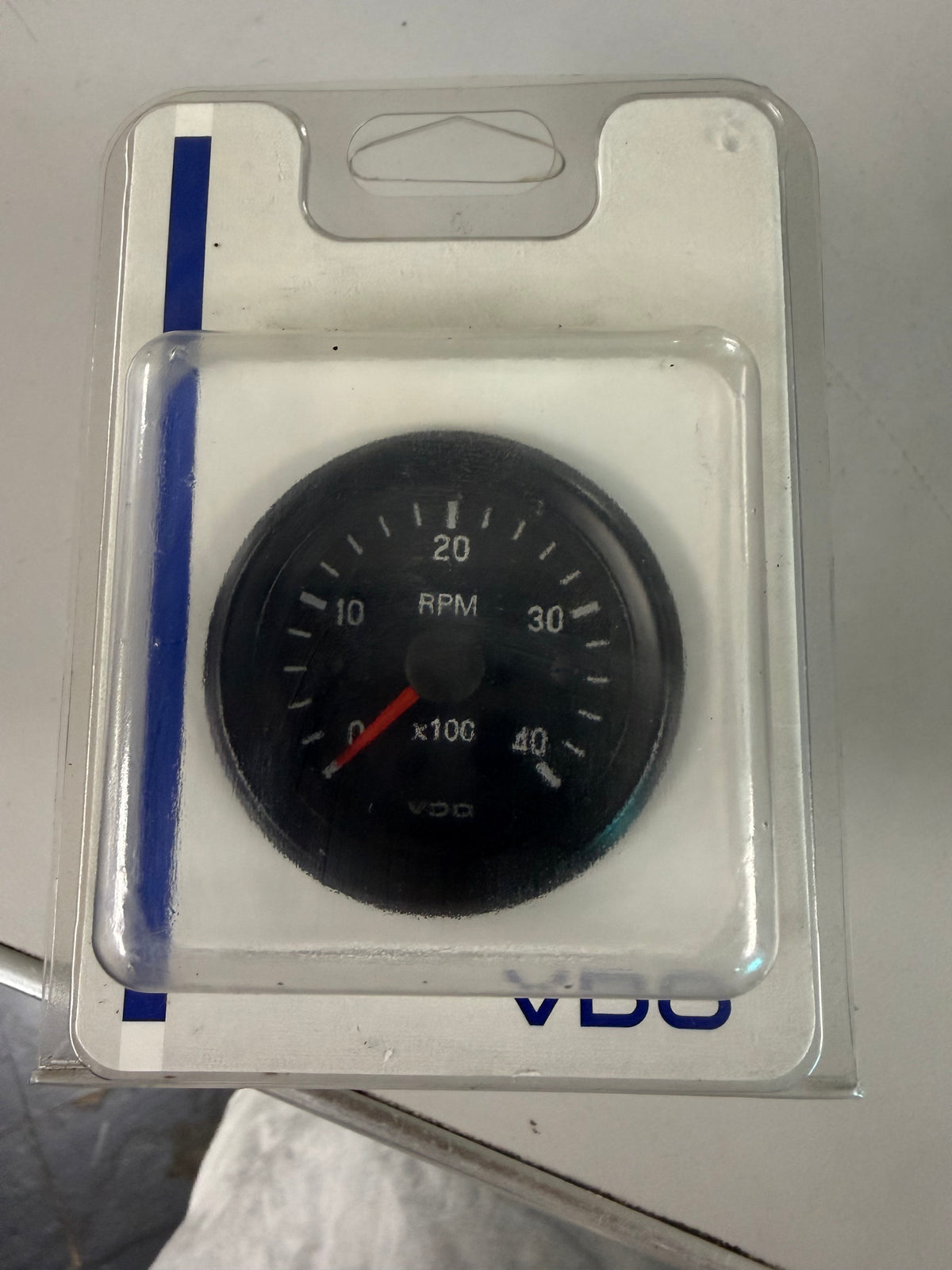

VDO 333-965 Cockpit International Series Electrical Programmable Tachometer

$170.13 USD
$170.13 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Core Technical Specifications
  • Series: Cockpit International [1]
  • Gauge Type: Electrical Programmable Tachometer (Without Hourmeter) [1, 2]
  • Measurement Scale: 0–4,000 RPM (Dial reads RPM x100) [1, 2]
  • Diameter Size: Standard 2-1/16 inches (52mm metric cutout diameter) [1]
  • Universal Signal Input: Programmed to accept electronic signals from:
    • Alternators configured with a "W" tachometer terminal connection
    • Conventional ignition coils on 4, 5, 6, or 8-cylinder engines
    • Standard square-wave electronic ignition control or PCM outputs [1, 2]
  • Operating Voltage: 12V DC [1]
  • Cockpit Styling Profile: Flat matte black dial face, high-contrast white graphics, a solid red pointer needle, and a clean black-painted brass bezel. [1, 2]
  • Illumination Type: Standard incandescent bulb flood backlighting (White). [1]
  • Housing & Durability: Built with a zinc-plated steel case and a single glass lens. It holds an IP64 water- and dust-resistance rating to handle high-vibration applications. [1]
  • Wiring & Mounting: Features traditional .250" rear male spade connectors and secures to panels using a standard metal U-bracket assembly. [1, 2]
Ver todos los detalles
