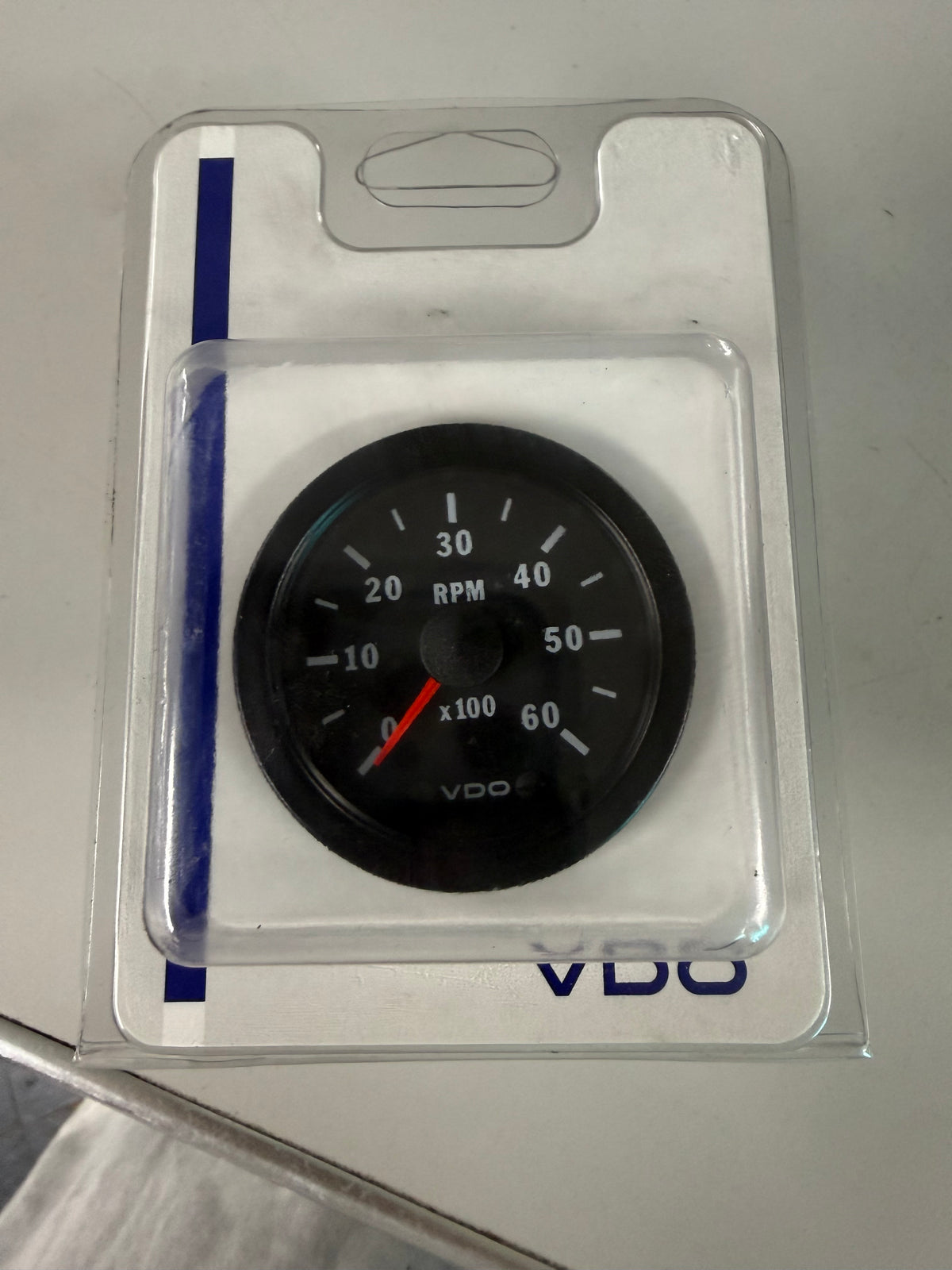

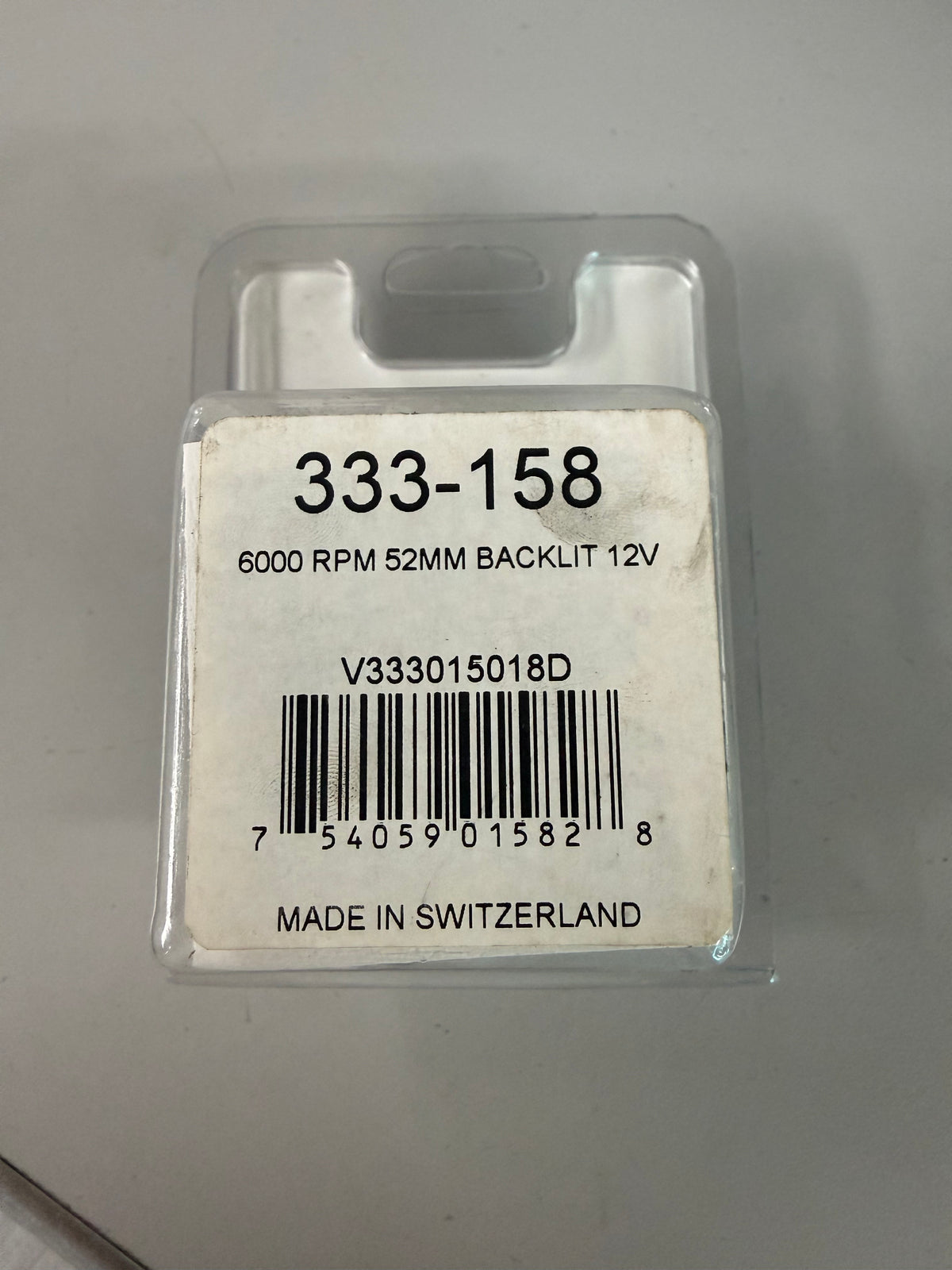

VDO 333-158 Vision Black Series Electrical Programmable Tachometer
VDO 333-158 Vision Black Series Electrical Programmable Tachometer
No reviews
Precio habitual
$153.79 USD
Precio habitual
Precio de oferta
$153.79 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Technical Specifications
- Series: Vision Black [1]
- Gauge Type: Electrical Programmable Tachometer [1]
- Measurement Scale: 0–6,000 RPM (Full 270-degree sweep layout) [1]
- Diameter Size: Standard 2-1/16 inches (52mm metric cutout diameter) [1]
-
Versatile Signal Compatibility: Can read input signals from:
- 4, 5, 6, or 8-cylinder engines running standard coil ignitions
- Most square-wave electronic control ignitions utilizing a dedicated tachometer output terminal
- Alternators configured with a "W" tachometer terminal connection [1]
- Operating Voltage: 12V DC [1]
- Vision Aesthetics: Designed with a crisp matte black dial face, low-profile black bezel, high-contrast clear white graphics, and a computer-balanced translucent red pointer needle. [1]
- Tri-Optic Fiber Illumination: Employs through-dial lighting technology. Included green and red bulb diffuser caps allow you to instantly flip your dashboard's night theme from soft white to a glowing Red or Green. [1]
- Spin-Lok™ Mounting: Uses VDO's patented spin-on clamp ring, securing the gauge with 360 degrees of uniform locking force to eliminate panel warping and stop gauge rotation. [1]
- Electrical Contacts: Standard .250" male spade terminals for simplified wiring.
