Lauderdale Speedometer & Compass

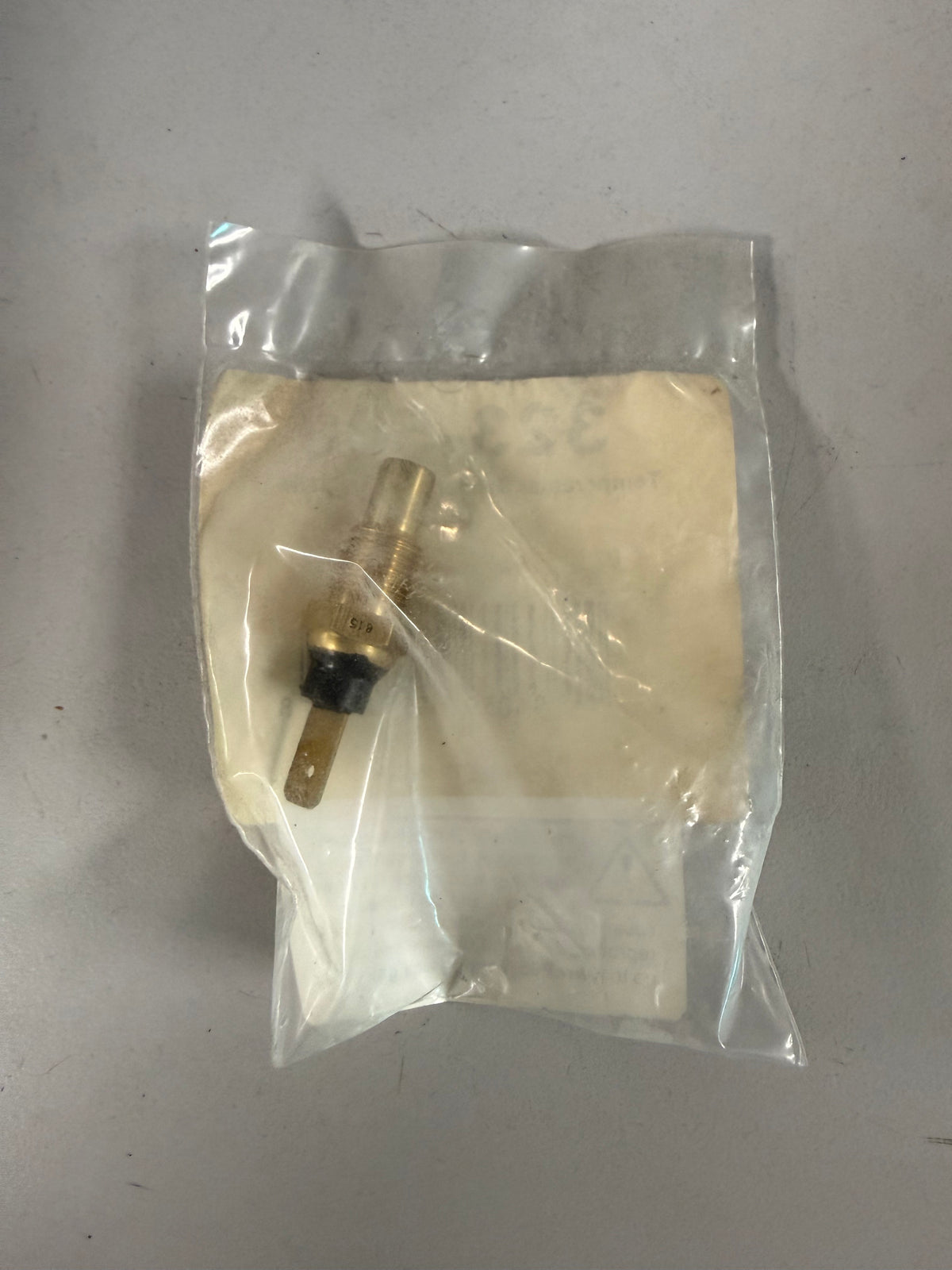

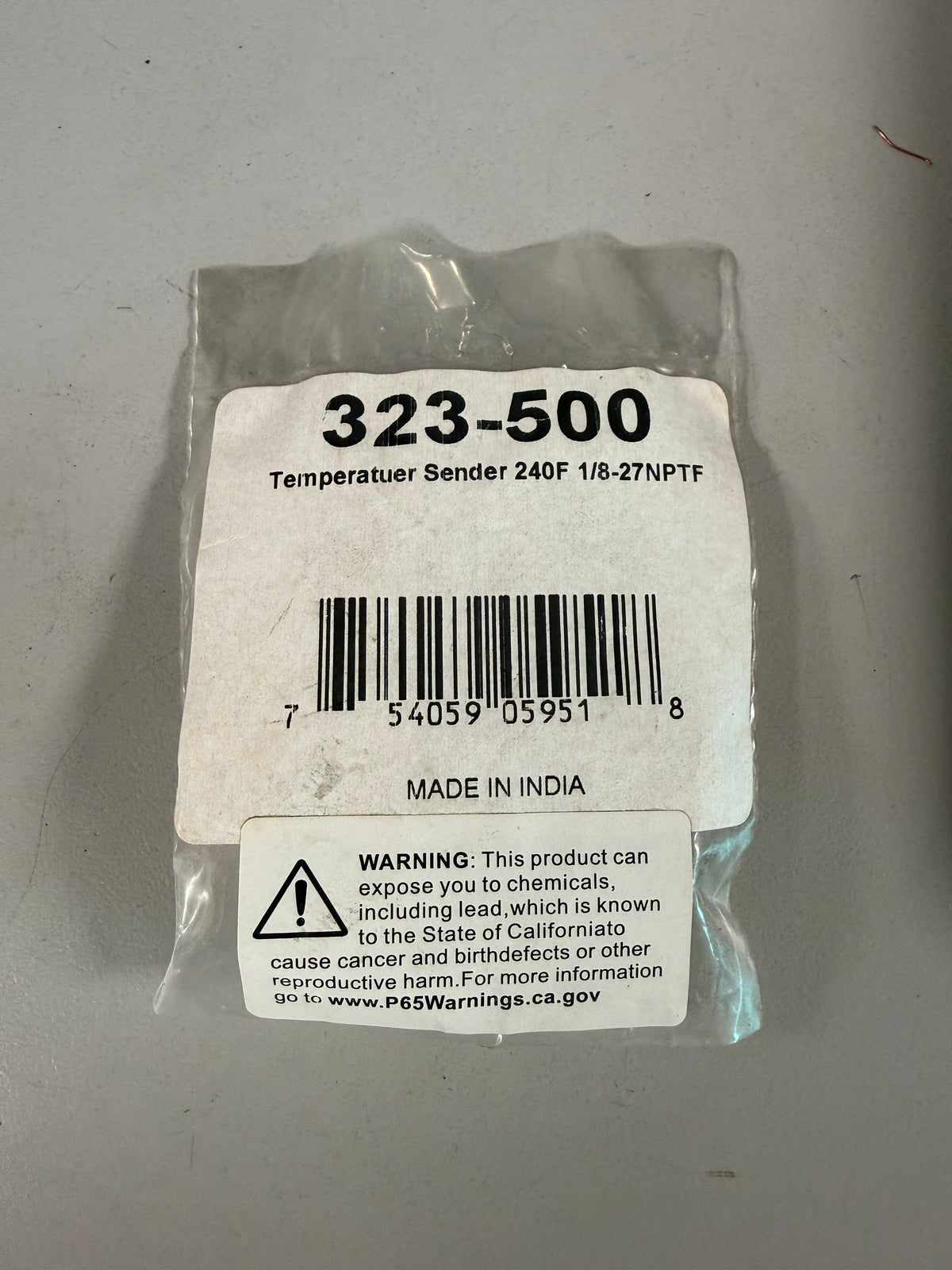

VDO 323-500 electrical water temperature sending unit
VDO 323-500 electrical water temperature sending unit
No reviews
Precio habitual
$13.25 USD
Precio habitual
Precio de oferta
$13.25 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Technical Specs
- Thread Size: 1/8"-27 NPTF (Tapered Thread)
- Temperature Range: Up to 240°F / 115°C
- Electrical Connection: Single 1-pin spade / #8-32 screw stud
- Resistance Curve: 450 Ω (at low scale) to 29 Ω (at max scale) (Note: This curve is specifically designed to match standard VDO 240°F/250°F dashboard dials).
- Grounding: Standard chassis grounding through the sensor's brass body
