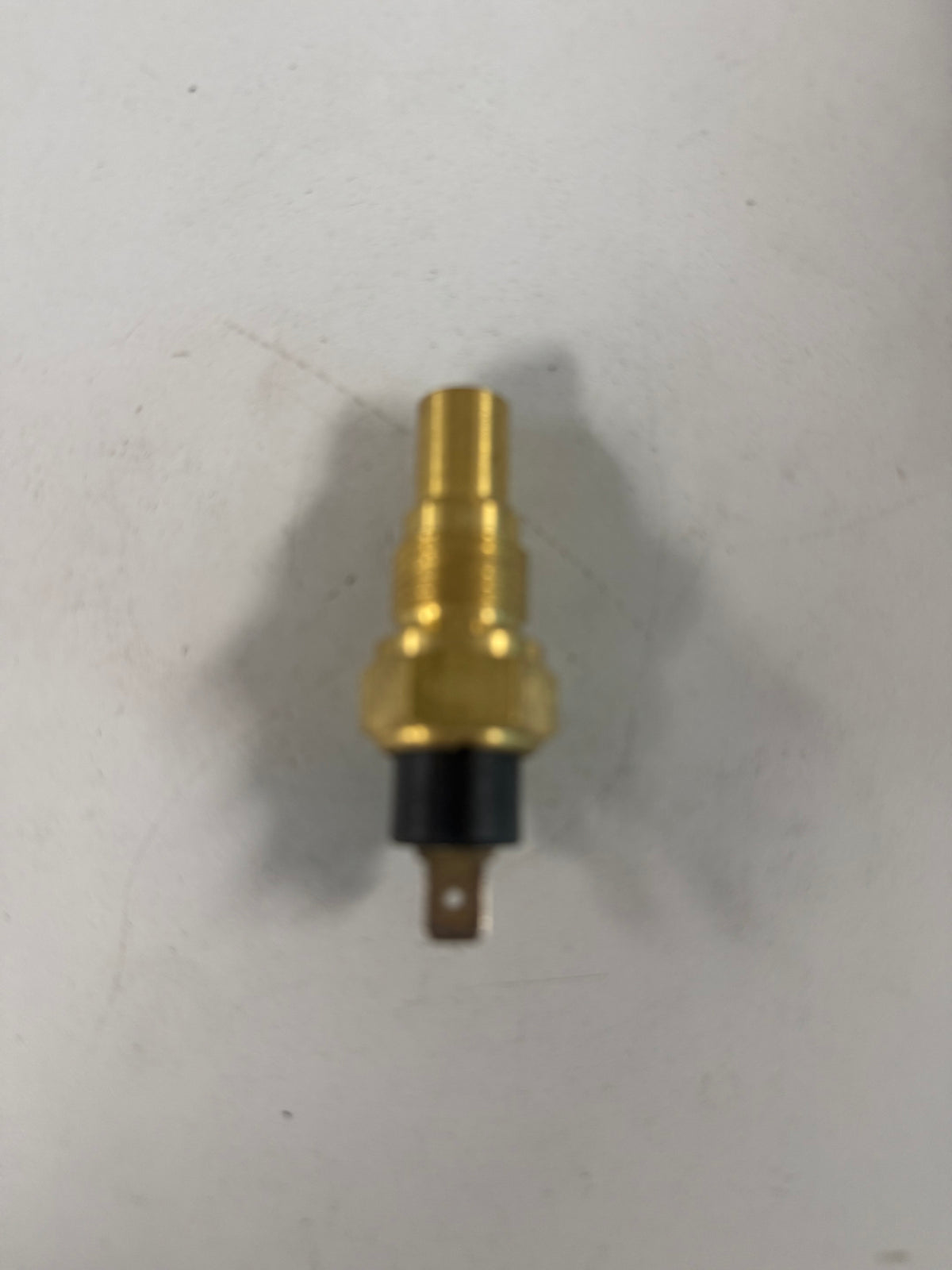

VDO 323-483 electrical fluid temperature sending unit built with a floating ground (insulated return)
VDO 323-483 electrical fluid temperature sending unit built with a floating ground (insulated return)
No reviews
Precio habitual
$59.34 USD
Precio habitual
Precio de oferta
$59.34 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Technical Specs
- Thread Size: 5/8"-18 UNF (Straight Thread)
- Temperature Range: Up to 250°F / 120°C
- Electrical Connection: Single 1-pin .250" Male Spade terminal
- Resistance Curve: 287.4 Ω (low scale) to 22.7 Ω (max scale), calibrated exclusively to match standard 250°F short-sweep VDO gauges.
- Grounding: Floating Ground (Insulated)
- Operating Voltage: 6V to 24V
