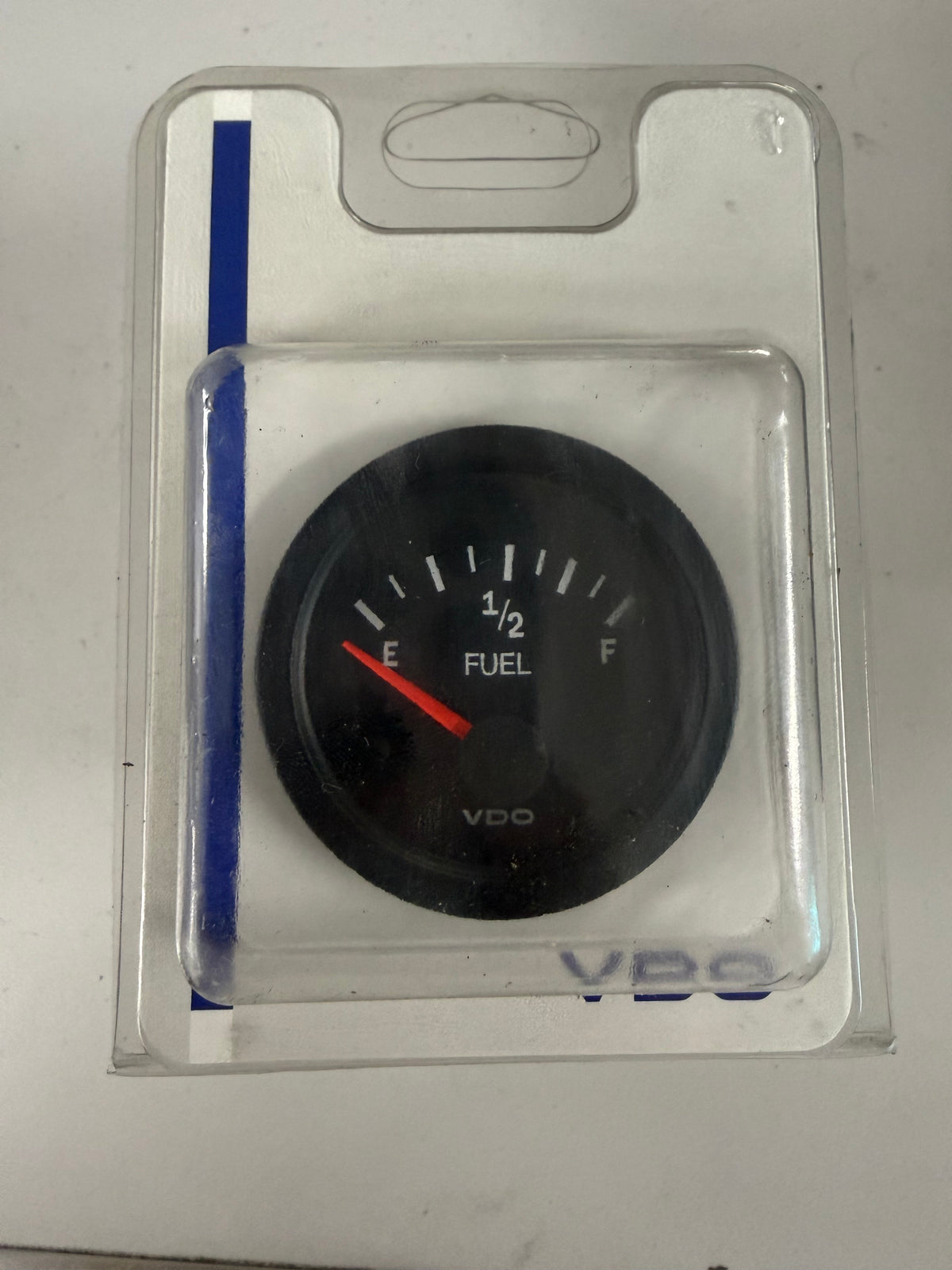

VDO 301-107 Vision Black Series Electrical Fuel Level Gauge designed specifically for VDO tube-type sending units
VDO 301-107 Vision Black Series Electrical Fuel Level Gauge designed specifically for VDO tube-type sending units
No reviews
Precio habitual
$59.69 USD
Precio habitual
Precio de oferta
$59.69 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Technical Specifications
- Series: Vision Black
- Gauge Type: Electrical Fuel Level (Analog Short Sweep)
- Ohmic Calibration: 90Ω (Empty) to 0Ω (Full)
- Sender Compatibility: Strictly configured to communicate with vertical aluminum VDO Tube-Type Fuel Senders.
- Diameter Size: Standard 2-1/16 inches (52mm panel cutout).
- Operating Voltage: 12V DC.
- Vision Aesthetics: Modern matte black dial face, flat glass lens, high-contrast white graphics, a matching low-profile black bezel, and a translucent, computer-balanced red pointer needle.
- Tri-Optic Illumination: Features advanced through-dial fiber optic lighting. Red and green slip-on diffuser caps are included, letting you customize your nighttime instrumentation color scheme.
- Advanced Mounting: Ships with VDO's patented Spin-Lok™ mounting hardware. This spin-on collar applies a uniform 360-degree clamp force to secure the instrument without distorting your dashboard panels.
- Electrical Termination: Standard .250" rear male spade terminals. [1, 2, 3]
