Lauderdale Speedometer & Compass

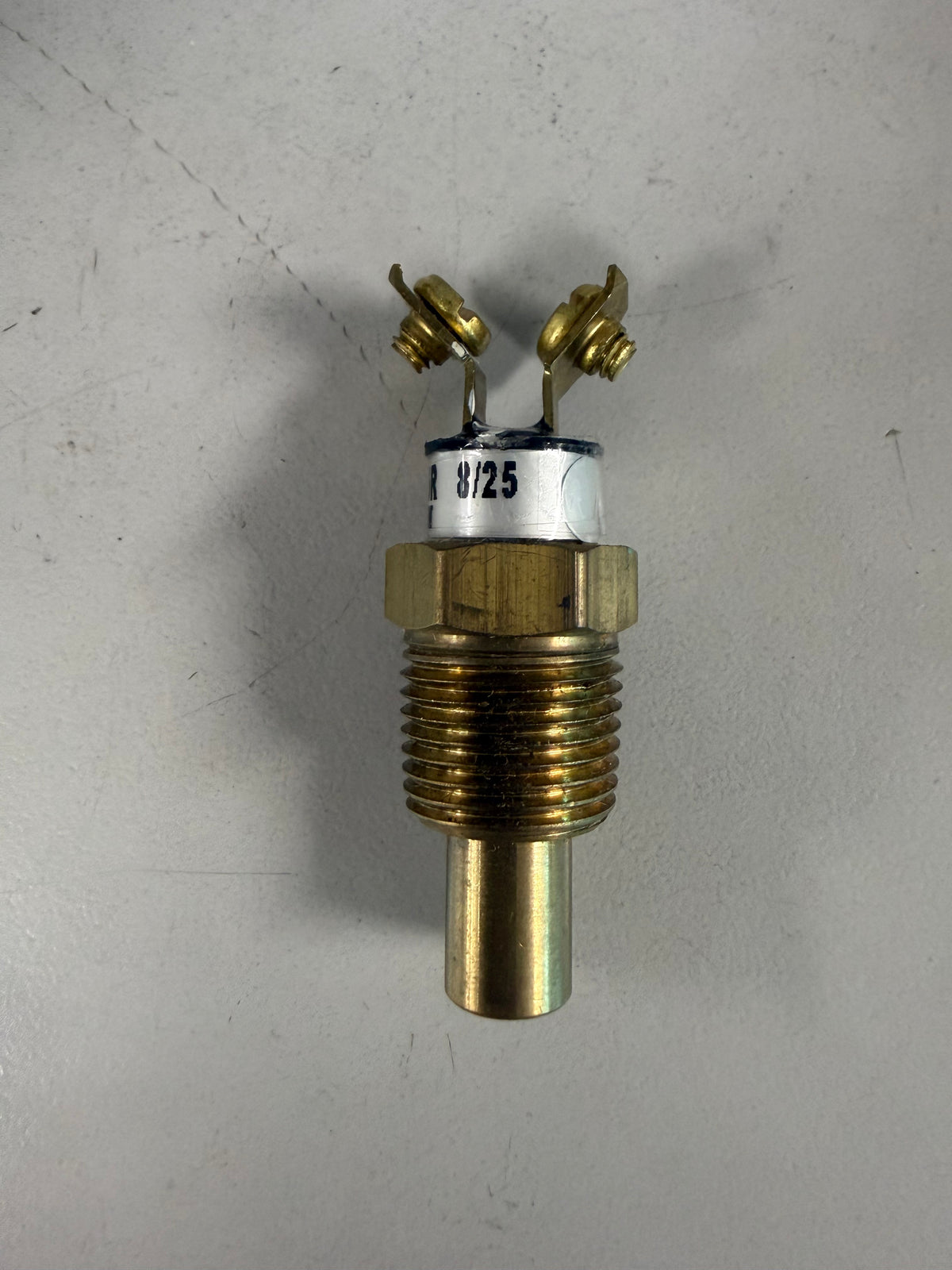

Nason TT-D2B-225R is a factory-preset, bimetal immersion temperature switch
Nason TT-D2B-225R is a factory-preset, bimetal immersion temperature switch
No reviews
Precio habitual
$79.00 USD
Precio habitual
Precio de oferta
$79.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
- Model (TT): Factory-set, bimetal immersion temperature switch engineered with gold-diffused, fine silver contacts for stable conductivity in low-current control circuits.
- Probe Length (D): Built with a compact 1/2" probe length to fit easily into shallow or restricted fluid blocks.
- Media Connection (2): Standard 3/8" NPT male thread process connection.
- Circuit Form (B): SPST, Normally Closed (NC) circuit structure. The switch keeps the electrical contacts closed during standard operations and snaps open when the temperature limit is reached.
- Fixed Set Point (225): Factory preset to trigger at 225°F (107.2°C) with a standard manufacturing tolerance of ±5°F.
- Set Point Direction (R): Rising. The switch activates on ascending temperatures as system heat climbs to the 225°F threshold.
