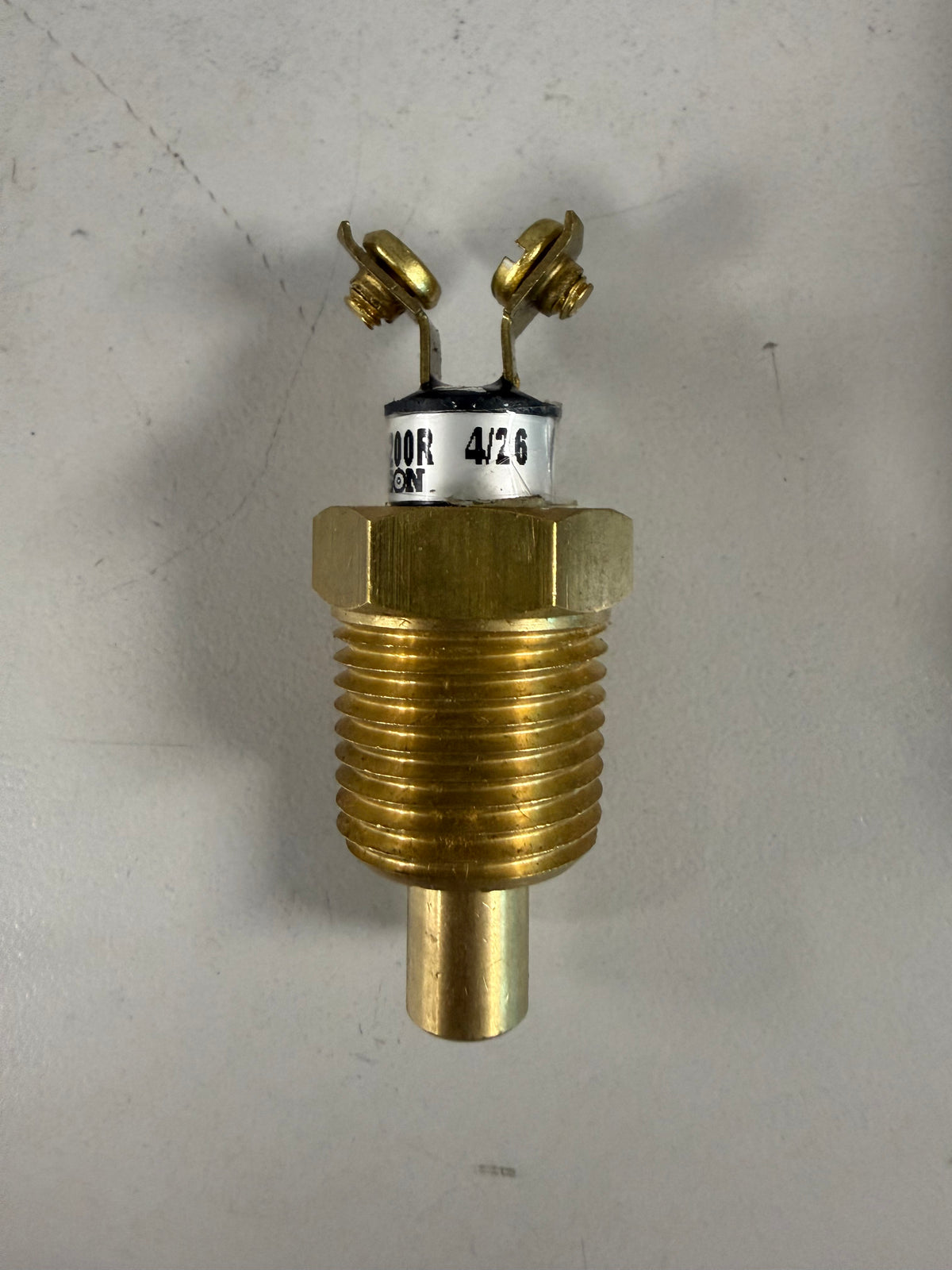

Nason TT-D1B-200R is a bimetal immersion temperature switch
Nason TT-D1B-200R is a bimetal immersion temperature switch
No reviews
Precio habitual
$83.20 USD
Precio habitual
Precio de oferta
$83.20 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
- Model (TT): Factory-set, bimetal immersion temperature switch with gold-diffused, fine silver contacts to guarantee high-reliability connectivity in low-current systems. [1, 2]
- Probe Length (D): Features a shorter 1/2" probe length (compared to the "F" variant which designates a 1" probe). [1, 2, 3]
- Media Connection (1): Standard 1/2" NPT male thread process connection. [1, 2]
- Circuit Form (B): SPST, Normally Closed (NC) circuit logic. The switch keeps the circuit closed at base operating levels and opens it once the preset temperature limit is breached. [1, 2]
- Fixed Set Point (200): Factory preset to trigger exactly at 200°F (93.3°C) with a tight standard manufacturing tolerance of ±5°F. [1]
- Set Point Direction (R): Rising. The switch actuates dynamically as system temperatures ascend toward the 200°F threshold. [1, 2]
