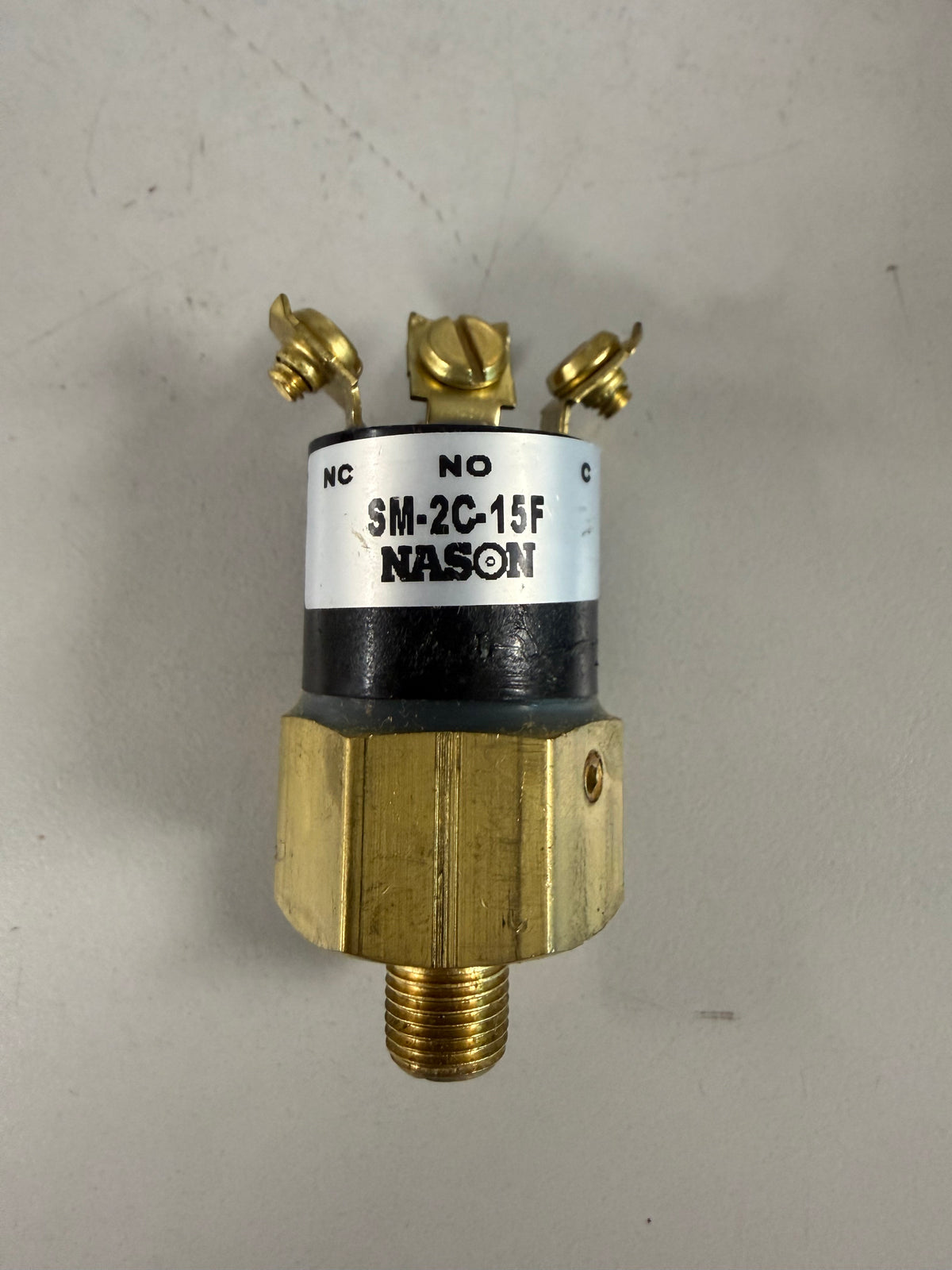

Nason SM-2C-15F is a factory-preset, low-pressure snap-action switch
Nason SM-2C-15F is a factory-preset, low-pressure snap-action switch
No reviews
Precio habitual
$88.00 USD
Precio habitual
Precio de oferta
$88.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Technical Specifications
- Media Connection: 1/8"-27 NPT Male (Standard Brass)
- Circuit Form: SPDT (Single Pole Double Throw — includes both Normally Open and Normally Closed contacts)
- Fixed Set Point: 15 PSI, Falling direction
- Electrical Connection: #8-32 Screw Terminal
- Electrical Rating: 5 A @ 125/250 VAC / 5 A @ 30 VDC
- Maximum Operating Pressure: 250 PSI (17 Bar)
- Diaphragm Material: Standard Buna Nitrile (366y)
- Environmental Rating: NEMA 4, 13 weather protection
- Operating Temperature: -20°F to +220°F
