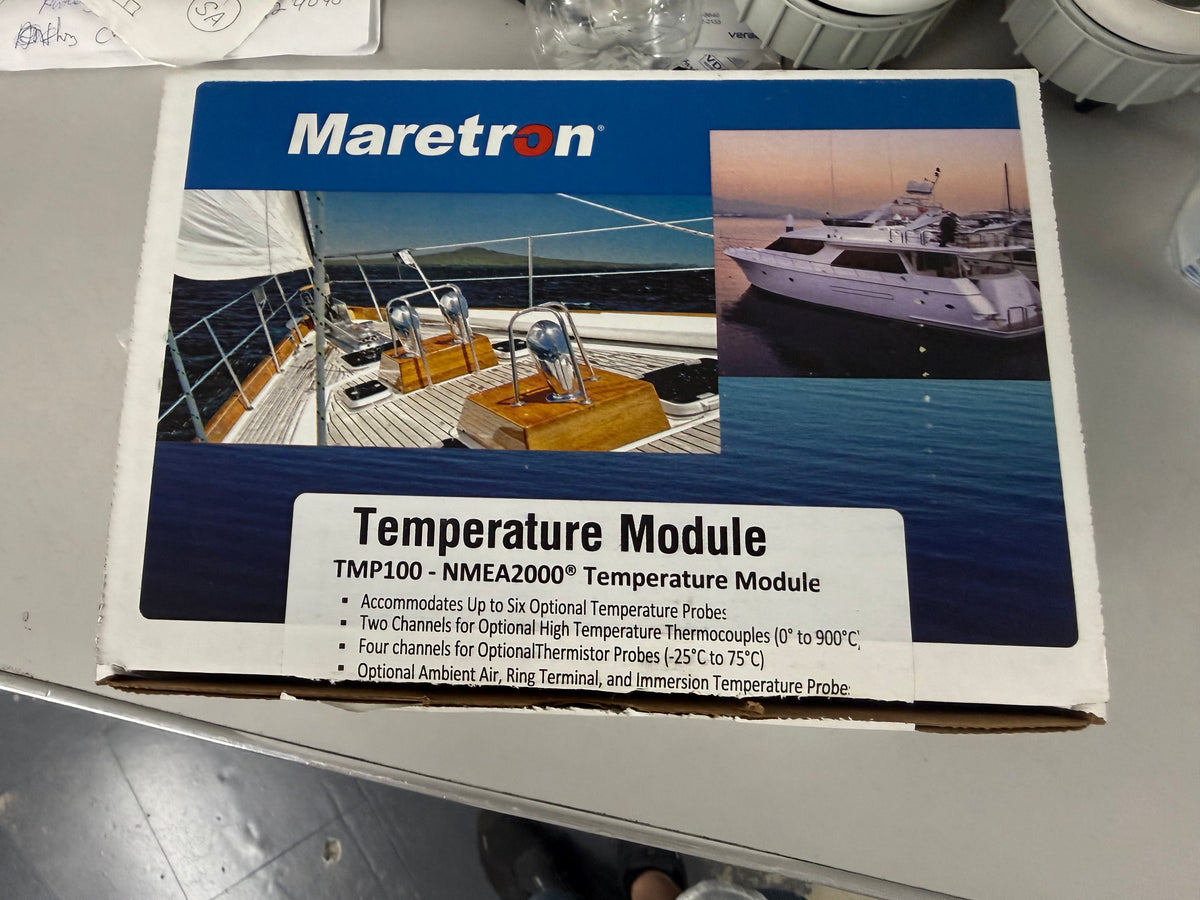

Maretron TMP100 Temperature Module specialized marine monitoring device designed to measure data from up to six external temperature probes and broadcast it simultaneously over an NMEA 2000 network
Maretron TMP100 Temperature Module specialized marine monitoring device designed to measure data from up to six external temperature probes and broadcast it simultaneously over an NMEA 2000 network
No reviews
Precio habitual
$345.00 USD
Precio habitual
Precio de oferta
$345.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Key Technical Specifications
-
Input Channels: 6 total channels, divided into:
- 4 Thermistor Channels: Typically used for ambient/moderate ranges (-20°C to 80°C / -4°F to 176°F) such as engine rooms, cabins, refrigerators, or tank fluids.
- 2 Thermocouple Channels: Specifically built for high-temperature applications (0°C to 900°C / 32°F to 1652°F), most notably monitoring Exhaust Gas Temperature (EGT) for fuel management. [1, 2, 3]
- Power Requirements: Operates on a 9–32V DC power supply directly through the NMEA 2000 network bus, pulling a low current of 50mA (1 LEN). [1]
- Environmental Rating: Standard IP64 splash-proof/dust-resistant enclosure, operational between -25°C to 55°C
