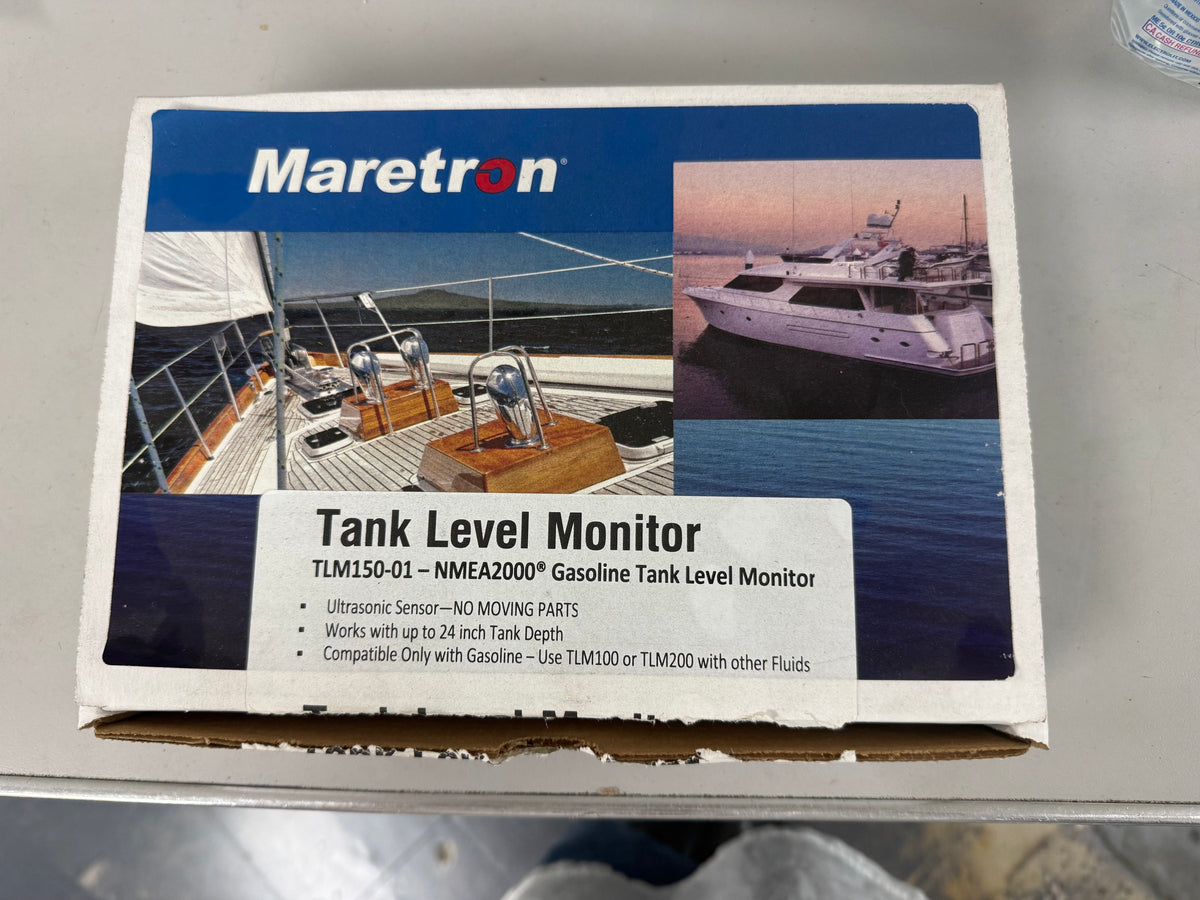

Maretron TLM150 Tank Level Monitor TLM150-01) is an ultrasonic sensor designed to measure gasoline/petrol levels in marine tanks and broadcast data over an NMEA 2000 network
Maretron TLM150 Tank Level Monitor TLM150-01) is an ultrasonic sensor designed to measure gasoline/petrol levels in marine tanks and broadcast data over an NMEA 2000 network
No reviews
Precio habitual
$260.00 USD
Precio habitual
Precio de oferta
$260.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Key Specifications & Features
- Application: Strictly for gasoline/petrol tanks (do not use with diesel, water, or oil).
- Tank Depth: Supports tanks up to 24 inches (0.61 meters) deep.
- Technology: Ultrasonic sound waves measure fluid distance from the top of the tank, eliminating physical probes that can foul or corrode.
- Calibration: Supports 16-point calibration for irregular tank shapes (not just rectangular).
- Mounting Options: SAE J1810 5-hole pattern, 1.5-inch NPT, or 1.25-inch BSP threaded openings (with adapters).
- Network: NMEA 2000 certified; viewable on compatible displays like the Maretron DSM250 or DSM410.
- Power: 9–16V DC voltage, draws under 100mA.
- Environment: IP67 waterproof protection, operating temperature range of -25°C to 55°C
