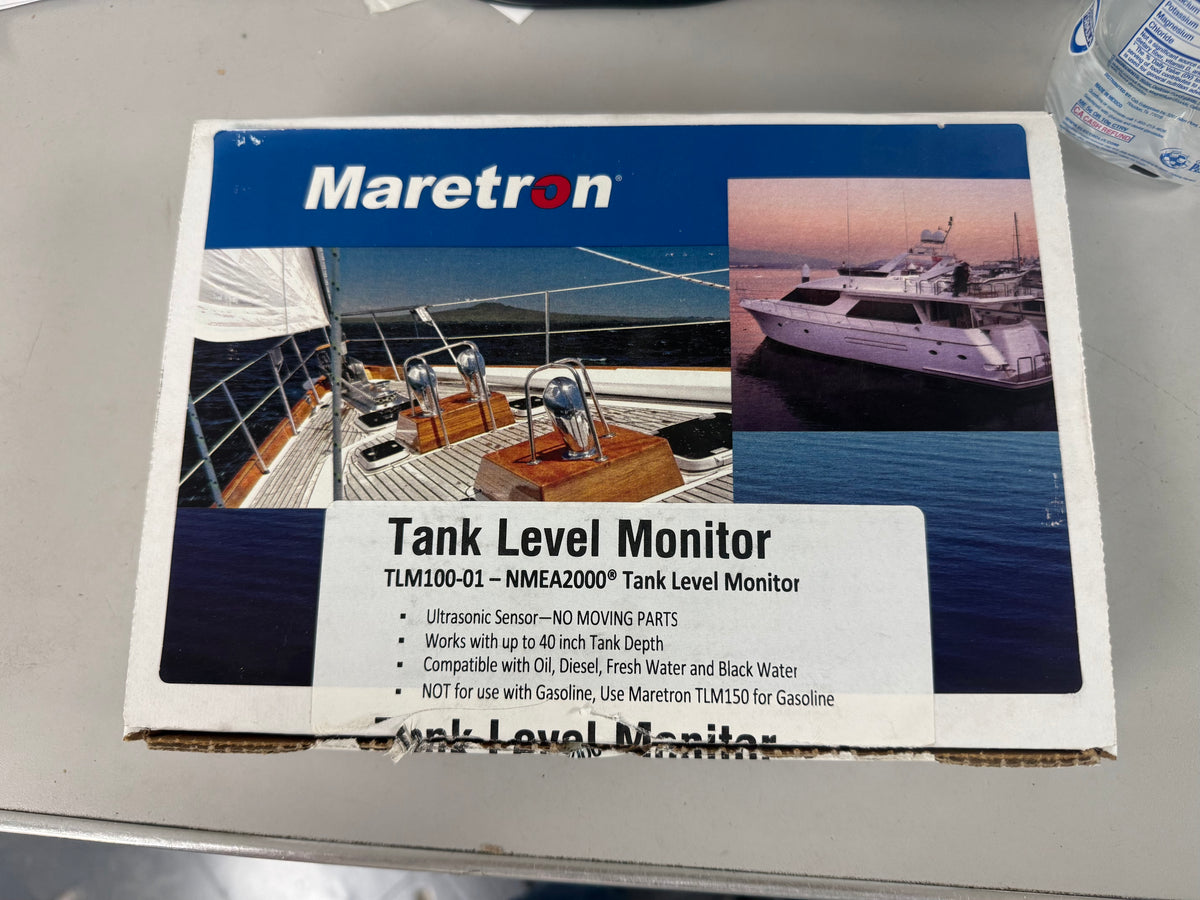

Maretron TLM100-01 ultrasonic tank level monitor designed for marine use on the NMEA 2000 network
Maretron TLM100-01 ultrasonic tank level monitor designed for marine use on the NMEA 2000 network
No reviews
Precio habitual
$225.00 USD
Precio habitual
Precio de oferta
$225.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Key Specifications & Features
- Technology: Uses ultrasonic sound waves to measure fluid level without internal probes that can foul or corrode.
- Maximum Depth: Senses tanks up to 40 inches (1.02 meters) in depth.
- Compatible Fluids: Diesel, fresh water, grey water, black water, and oil (not rated for gasoline/gas).
- Tank Shapes: Calibratable for irregular or non-rectangular tank geometries.
- Mounting Options: SAE J1810 5-hole mounting pattern, or 1.5” NPT / 1.25” BSP threaded openings via adapters.
- Network: NMEA 2000 certified, allowing level data to display on compatible instruments like the Maretron DSM250 or N2KView systems.
- Configuration: Requires a configuration device such as a Maretron DSM570, DSM410, USB100, or IPG100
