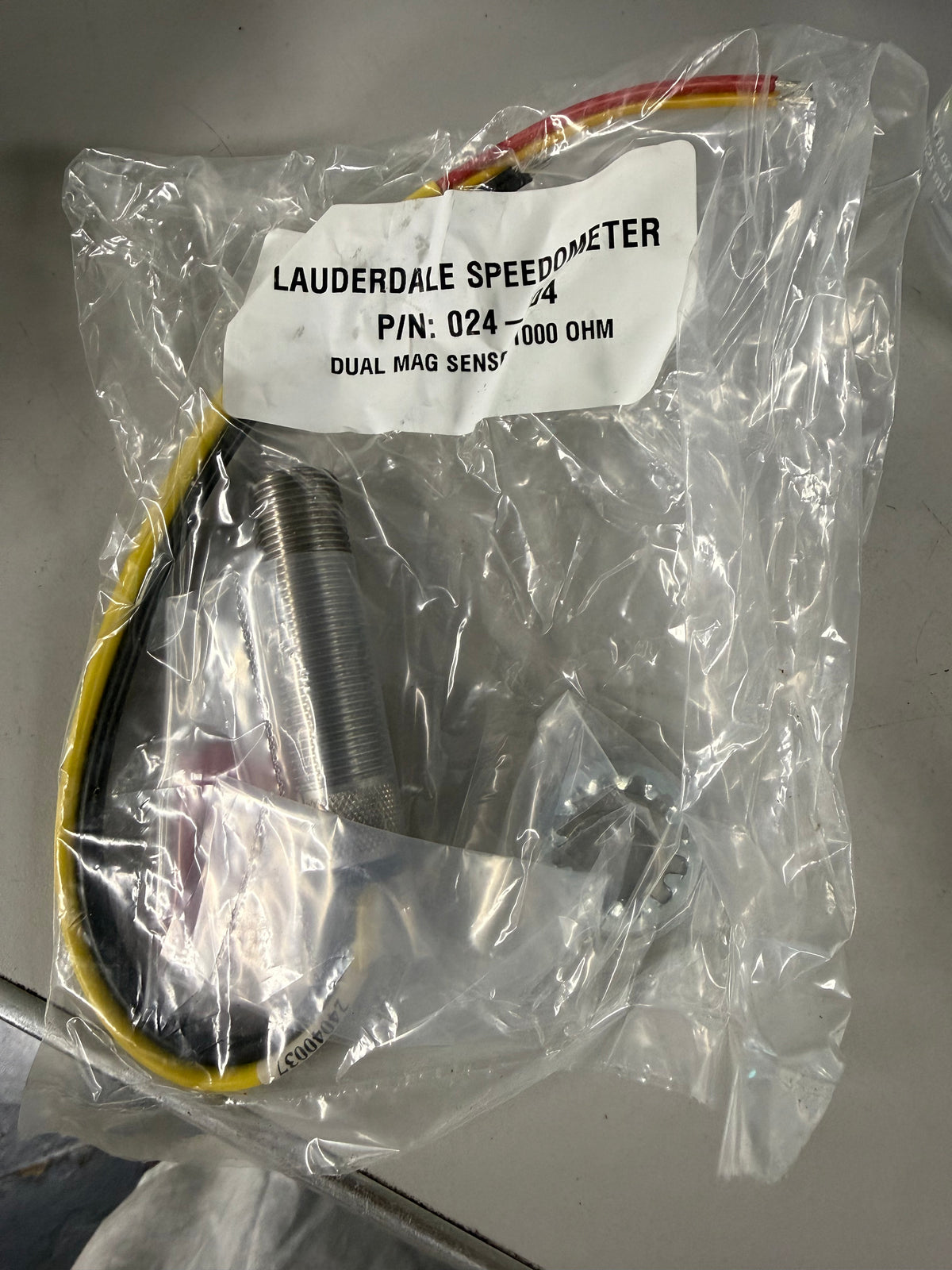

Hewitt Industries 024-604 dual-output magnetic pickup speed sensor used primarily for tachometers and speed switches
Hewitt Industries 024-604 dual-output magnetic pickup speed sensor used primarily for tachometers and speed switches
No reviews
Precio habitual
$153.89 USD
Precio habitual
Precio de oferta
$153.89 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Key Specifications
- Type: Dual output, 1000 Ohm magnetic pickup (variable reluctance sensor)
- Thread Size: 3/4-16 UNF
- Body Length: 3 inches
- Housing Material: T304 stainless steel (or brass variant depending on exact sub-model)
- Lead Wires: Dual lead setup (e.g., black and yellow lines with specific lengths)
- Recommended Gap: 0.050" (3/4 turn back from contact with the flywheel/target)
- Maximum Installation Torque: 30 ft-lbs
- Application: Flywheel sensing for marine or industrial engines, tachometers, and redundant pulse/speed monitoring.
