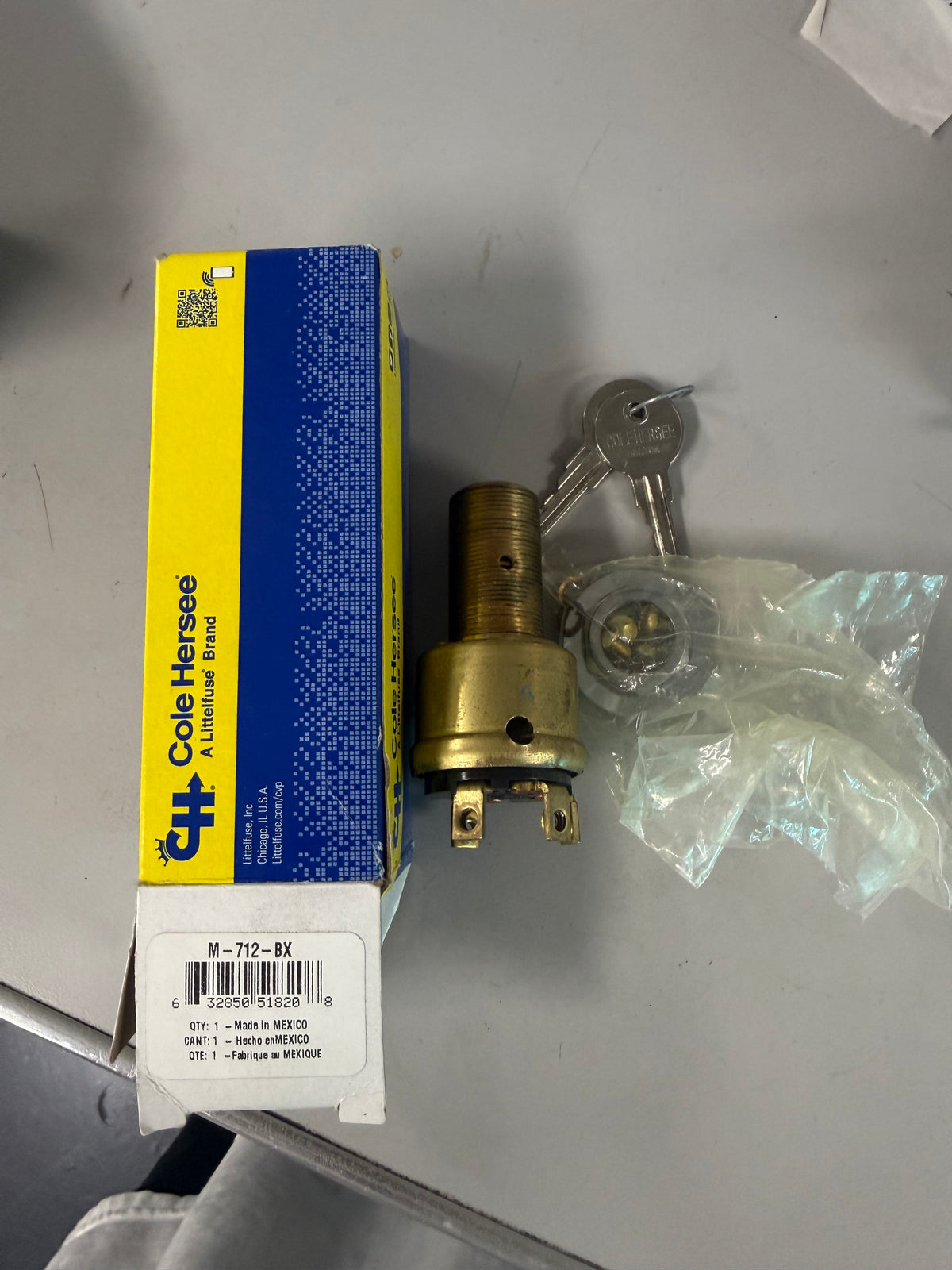

Cole Hersee M- 712-BX Marine Ignition Switch
Cole Hersee M- 712-BX Marine Ignition Switch
No reviews
Precio habitual
$69.00 USD
Precio habitual
Precio de oferta
$69.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Key Specifications
- Positions (4): Accessory — Off — Ignition/Accessory — Start (with spring return to Ignition/Accessory) [1]
- Electrical Ratings (12V DC): 10A Accessory, 5A Ignition, 5A Start [1]
- Terminals: 4 brass screw terminals [1, 2]
- Housing Material: Brass case and mounting stem with a chrome-plated brass face nut [1, 2]
- Mounting Stem: 13/16"-24 thread diameter x 1-7/32" length (fits panels up to 1" thick) [1, 2]
- Actuator: Coded tumbler lock (includes 2 brass keys; key is removable only in the Off position) [1, 2]
- Sealing: O-ring seal in stem with moisture-repellent insulators and SAE J259 ignition-proof compliance. [1, 2]
