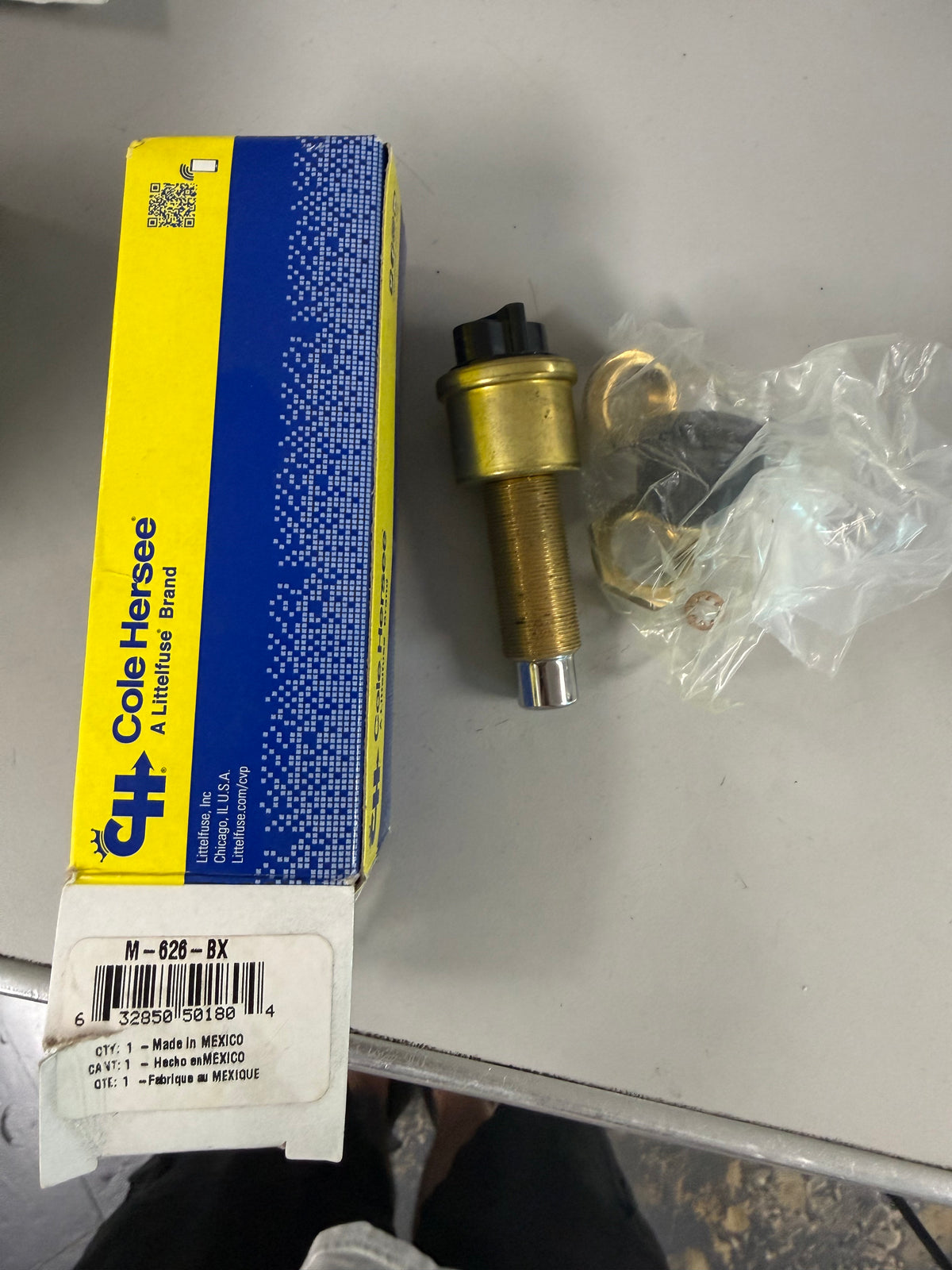

Cole Hersee M-626-BX Push-Button Switch
Cole Hersee M-626-BX Push-Button Switch
No reviews
Precio habitual
$26.90 USD
Precio habitual
Precio de oferta
$26.90 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Specifications & Features
- Circuitry: SPST (Normally OFF / Momentary ON — active only while the button is depressed, with a spring return to OFF). [1, 2]
- Electrical Rating: 35A at 12V DC, 20A at 24V DC, and 10A at 36V DC. [1]
- Terminals: Two brass screw terminals. [1, 2]
- Mounting Stem: Brass, 5/8"-32 thread diameter, 1-3/8" (34.9 mm) long, fits panels up to 1" (25.4 mm) thick. [1, 2]
- Contacts: Silver contacts for reliable conductivity. [1, 2]
- Included Accessory: Comes with the 407-03 snap-on black moisture-repellent rubber button cover/cap. [1, 2]
