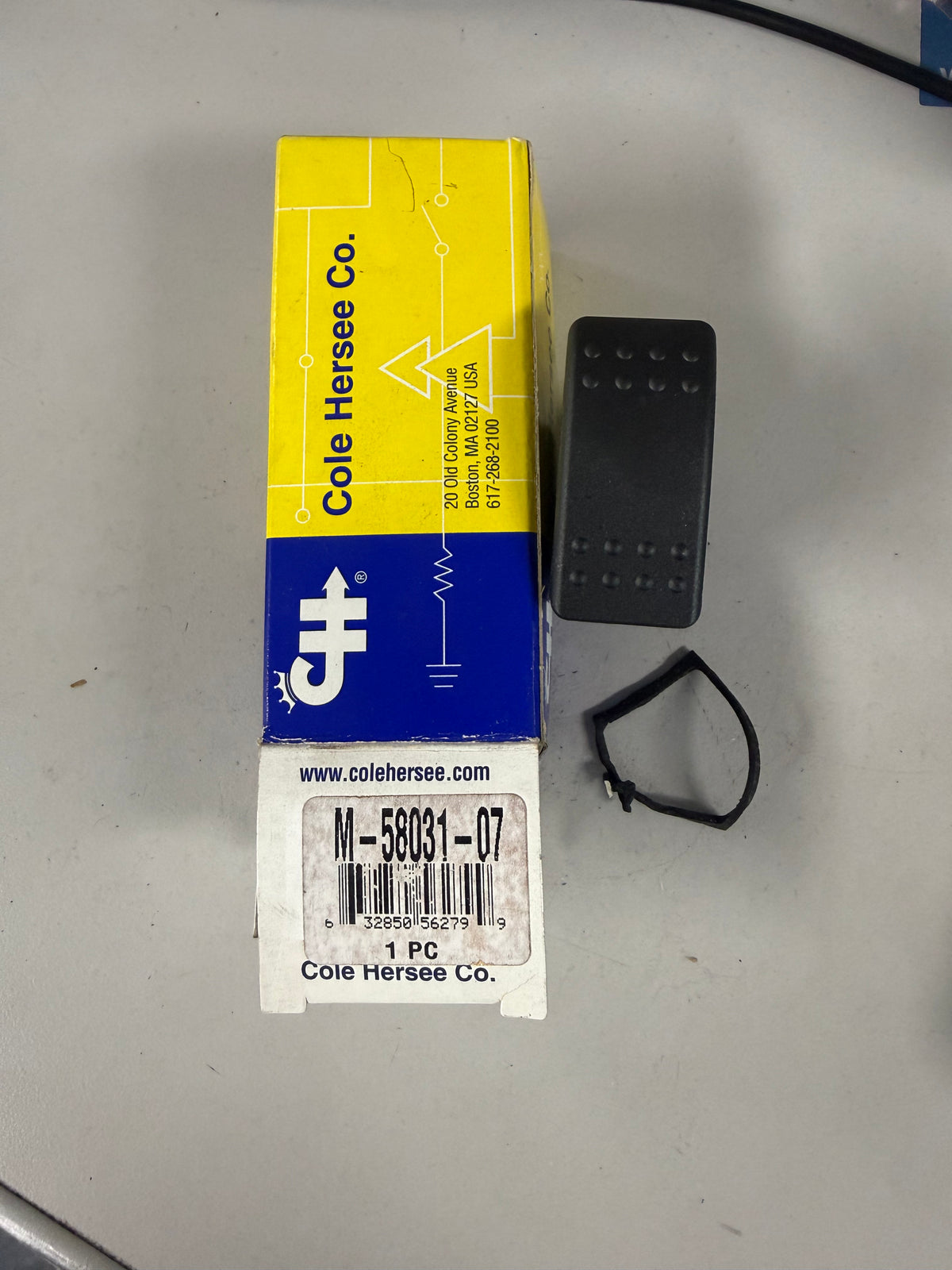

Cole Hersee M-58031-07 heavy-duty, marine-grade Single-Pole, Single-Throw (SPST) Sealed Momentary Rocker Switch
Cole Hersee M-58031-07 heavy-duty, marine-grade Single-Pole, Single-Throw (SPST) Sealed Momentary Rocker Switch
No reviews
Precio habitual
$18.99 USD
Precio habitual
Precio de oferta
$18.99 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specs
- Circuitry: Single-Pole, Single-Throw (SPST) [1]
- Switch Action: Momentary On - None - Off (Often written as (On)-Off; it stays spring-loaded in the "Off" position and only activates the circuit while held down) [1]
- Electrical Capacity: Handles high-amperage demands:
- Terminals: 2 brass blade terminals (0.250" quick-connect layout) [1]
- Contacts: High-conductivity silver contacts engineered to reduce internal arcing and maximize service life [1]
- Environmental Protection: Certified to IP66 and IP68 standards, providing total dust resistance and complete defense against heavy seas, pressurized wash-downs, or temporary immersion [1]
- Safety Approvals: Meets UL 1500 Ignition Protection standards, verifying it will not spark gas vapors and is certified safe for marine engine compartments [1]
- Aesthetics: Matte-finish black plastic housing, black nylon bezel, and a black convex actuator with no stamped imprints or labels [1, 2]
- Mounting: Built as a snap-in panel switch fitting standard 1.45" x 0.83" (36.83mm x 21.08mm) rectangular dashboard cutouts. Fits panel thicknesses from 0.040" to 0.100" and includes a neoprene panel seal for a watertight face gasket.
