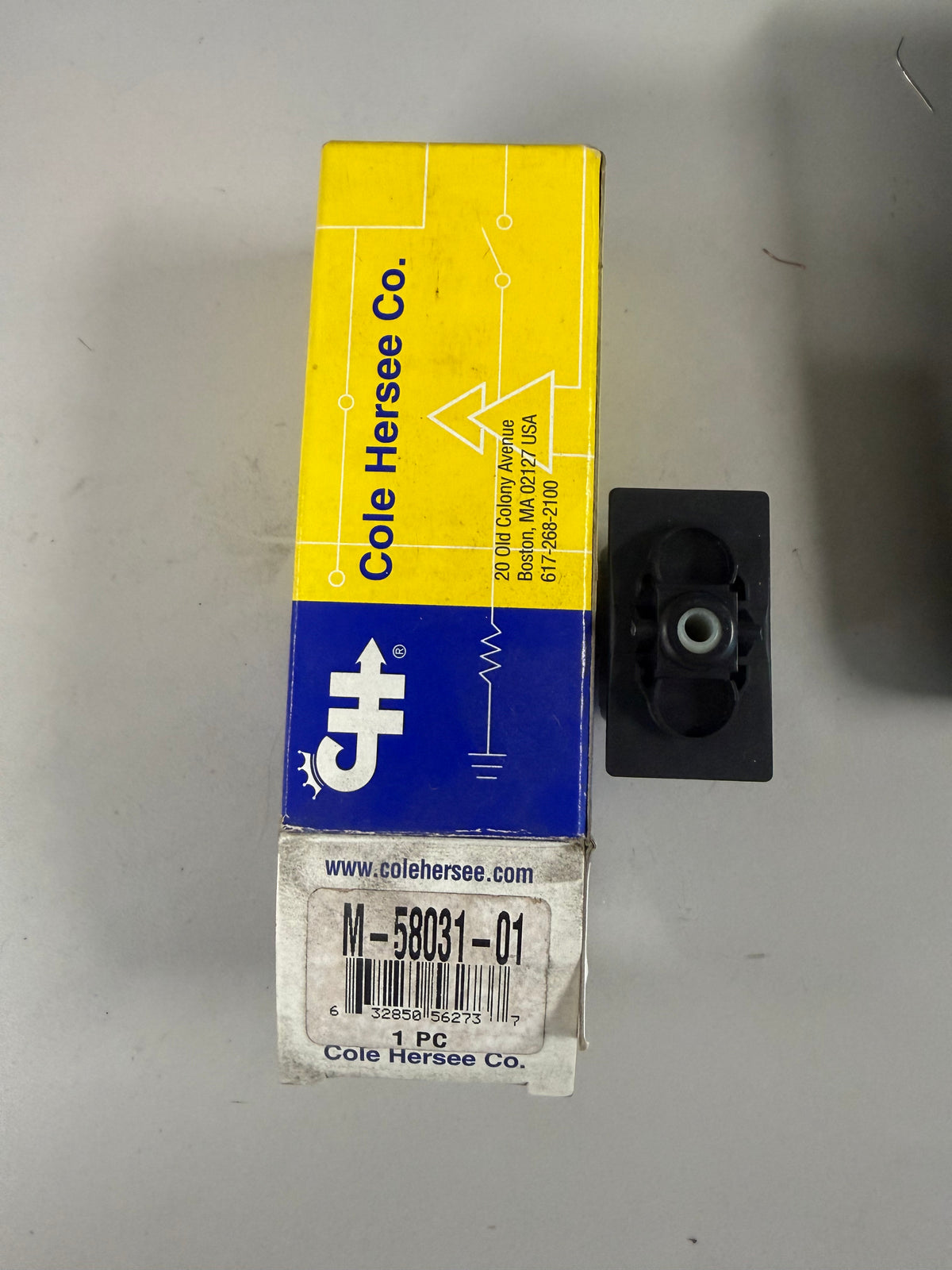

Cole Hersee M-58031-01 marine-grade, heavy-duty Single-Pole, Single-Throw (SPST) Sealed Rocker Switch
Cole Hersee M-58031-01 marine-grade, heavy-duty Single-Pole, Single-Throw (SPST) Sealed Rocker Switch
No reviews
Precio habitual
$16.88 USD
Precio habitual
Precio de oferta
$16.88 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specs
- Circuitry: Single-Pole, Single-Throw (SPST)
- Switch Action: On - Off
- Electrical Capacity: Max rating of 20A at 12V DC and 15A at 24V DC
- Terminals: 2 brass blade terminals (0.250" quick-connect layout)
- Contacts: High-conductivity silver contacts that reduce internal arcing and maximize lifespan
- Environmental Protection: Certified to IP66 ingress rating (fully dustproof and completely protected against heavy seas or high-pressure wash-downs)
- Safety Certifications: Recognized to UL 1500 standards for ignition protection, making it safe for use in marine engine compartments where gas fumes may be present
- Aesthetics: Molded black plastic housing, bezel, and a black convex actuator (no imprints/markings)
- Mounting: Includes a neoprene gasket/panel seal. Snaps seamlessly into standard rectangular 1.45" x 0.83" (36.8mm x 21.1mm) dashboard cutouts. Designed for panel thicknesses ranging from 0.09" to 0.19".
