Lauderdale Speedometer & Compass

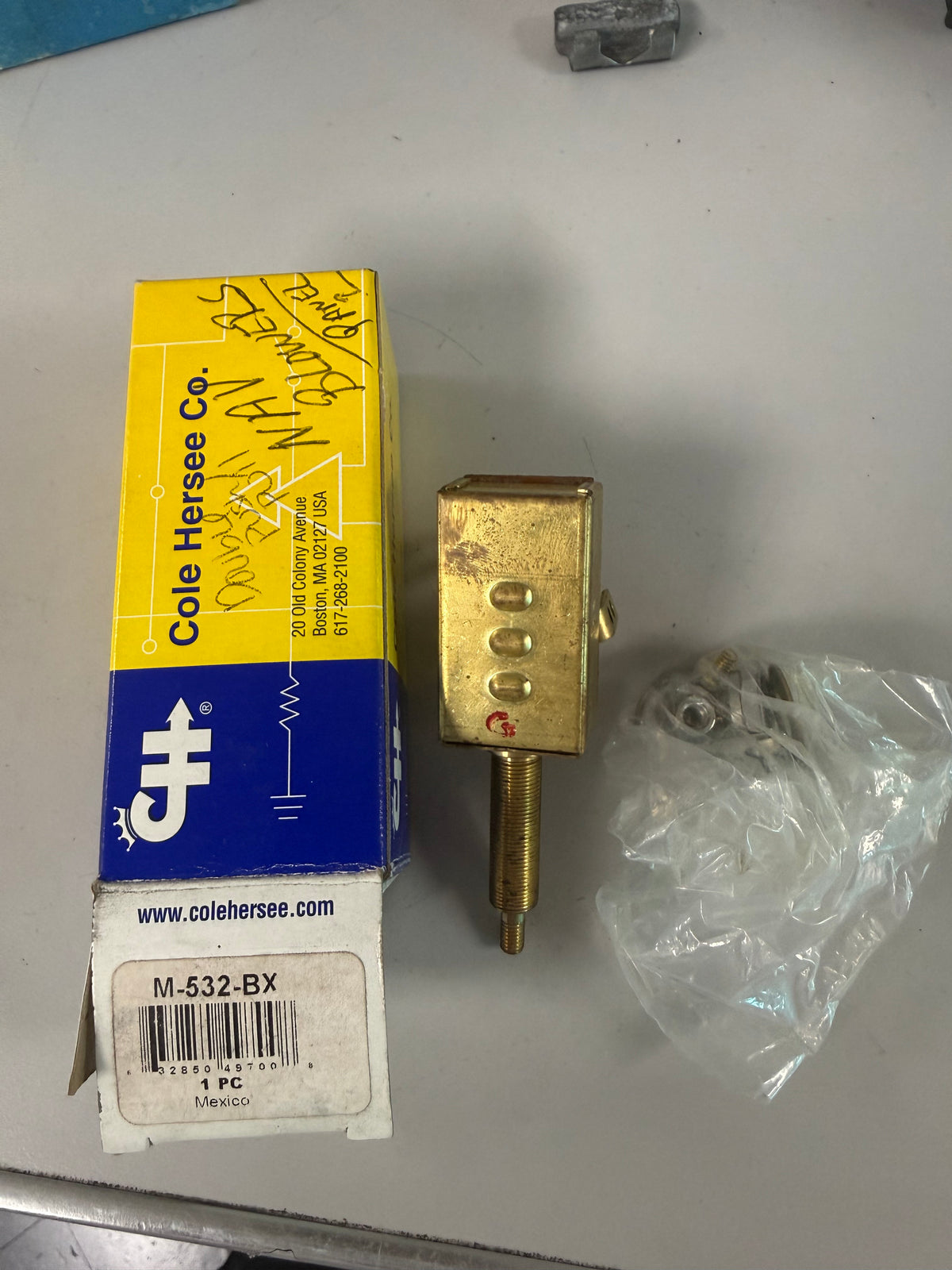

Cole Hersee M-532-BX
Cole Hersee M-532-BX
No reviews
Precio habitual
$65.11 USD
Precio habitual
Precio de oferta
$65.11 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Specifications & Features
- Type: SPDT (Single Pole Double Throw) push-pull switch [1]
-
Positions (3-Position):
- Off (pushed in all the way)
- Position 1 (On): Anchor/First stop
- Position 2 (On): Underway/Second stop [1]
- Electrical Rating: 10 Amps at 12V DC (compatible with 6V–36V DC systems) [1]
- Terminals: 4 brass screw terminals [1, 2]
- Material & Build: Heavy-duty brass case, mounting stem, and hardware with a chrome-plated brass knob [1, 2]
- Mounting: 3/8"-32 thread mounting stem (1-1/4" long), fits panels up to 1" thick; includes face nut, washer, and hex nut [1, 2]
