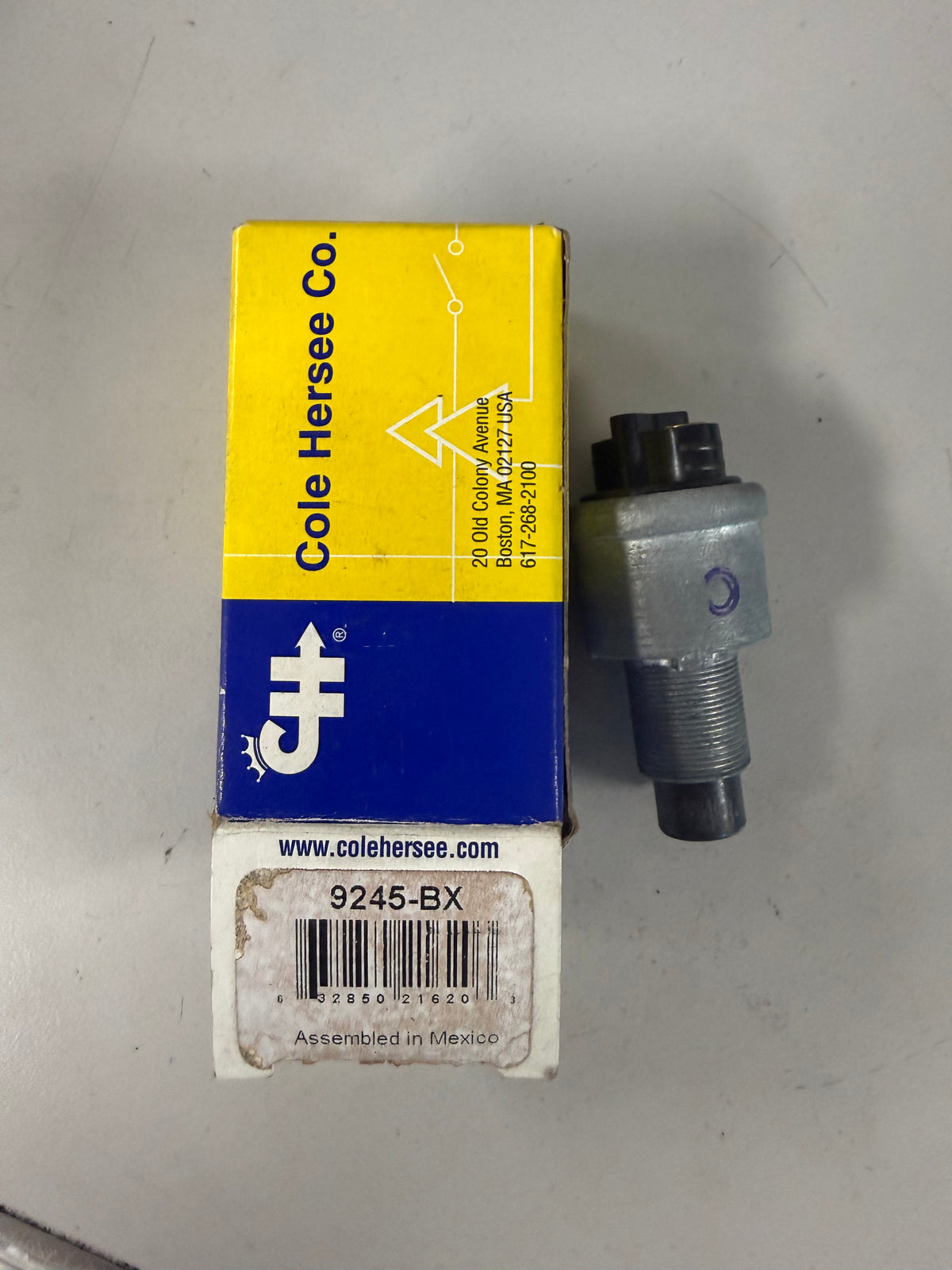

Cole Hersee 9245-BX heavy-duty, single-pole single-throw (SPST) momentary push-button switch
Cole Hersee 9245-BX heavy-duty, single-pole single-throw (SPST) momentary push-button switch
No reviews
Precio habitual
$16.99 USD
Precio habitual
Precio de oferta
$16.99 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Key Specifications
- Circuitry: SPST (Off-On, normally Off / Normally Open) [1, 2]
- Action: Momentary (On with button depressed, spring return to Off) [1]
- Electrical Rating: 35A at 12V DC [1, 2]
- Terminals: 2 screw terminals with lockwashers (#8 screw size) [1, 2]
- Mounting: Fits a 5/8" (5/8"-32, .63" long) mounting hole; maximum panel depth of 3/8" [1, 2]
- Contacts: Silver contacts [1, 2]
- Protection: Includes an O-ring seal in the mounting stem and a snap-on black rubber protective cap (#407-03) against dust and moisture [1, 2, 3]
- Body Housing: Cylindrical diecast body with chrome-plated button and face nut (black plastic button variant
