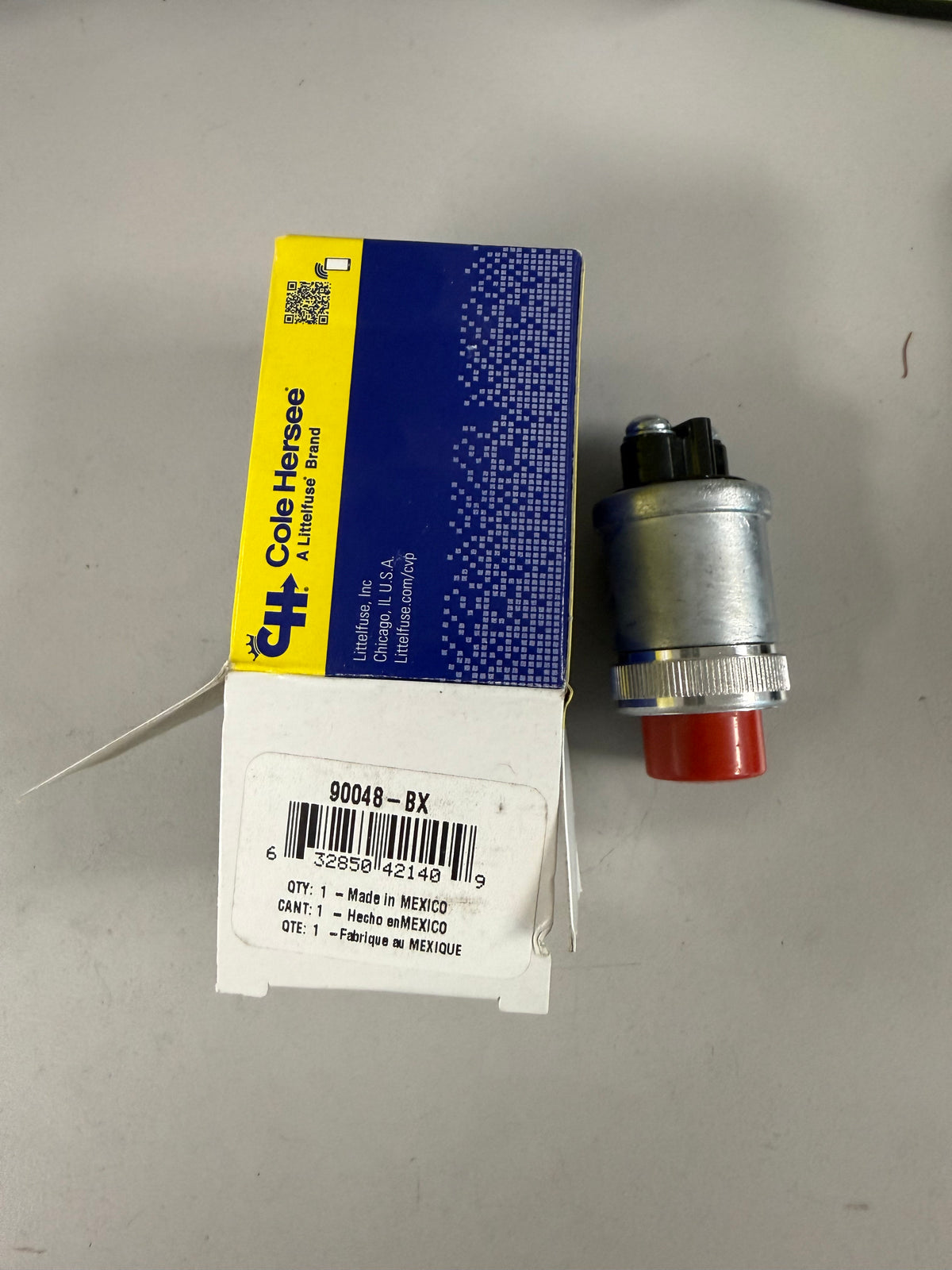

Cole Hersee 90048-BX heavy-duty, Weather-Resistant Momentary Push-Button Switch
Cole Hersee 90048-BX heavy-duty, Weather-Resistant Momentary Push-Button Switch
No reviews
Precio habitual
$27.86 USD
Precio habitual
Precio de oferta
$27.86 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specs
- Circuitry: Single-Pole, Single-Throw (SPST), Normally Open (N.O.)
- Voltage: Multi-voltage system capacity operating from 6V to 36V DC
- Amperage Rating: Highly robust 35A at 12V DC / 20A at 24V DC
- Switch Action: Off - Momentary On (Engages when pushed, snaps off when released)
- Actuator: Impact-resistant red plastic plunger that actively repels water, oil, and common workshop fluids
- Terminals: 2 screw terminals with included lock washers
- Contacts: Highly conductive silver contacts for reliable electrical cycling
- Housing: Zinc die-cast housing with a knurled aluminum face nut and a built-in weather seal
- Mounting: 7/8"-24 thread mounting stem keyed to prevent spinning, fitting panels 0.04" to 0.10" (1.0mm to 2.5mm) thick
