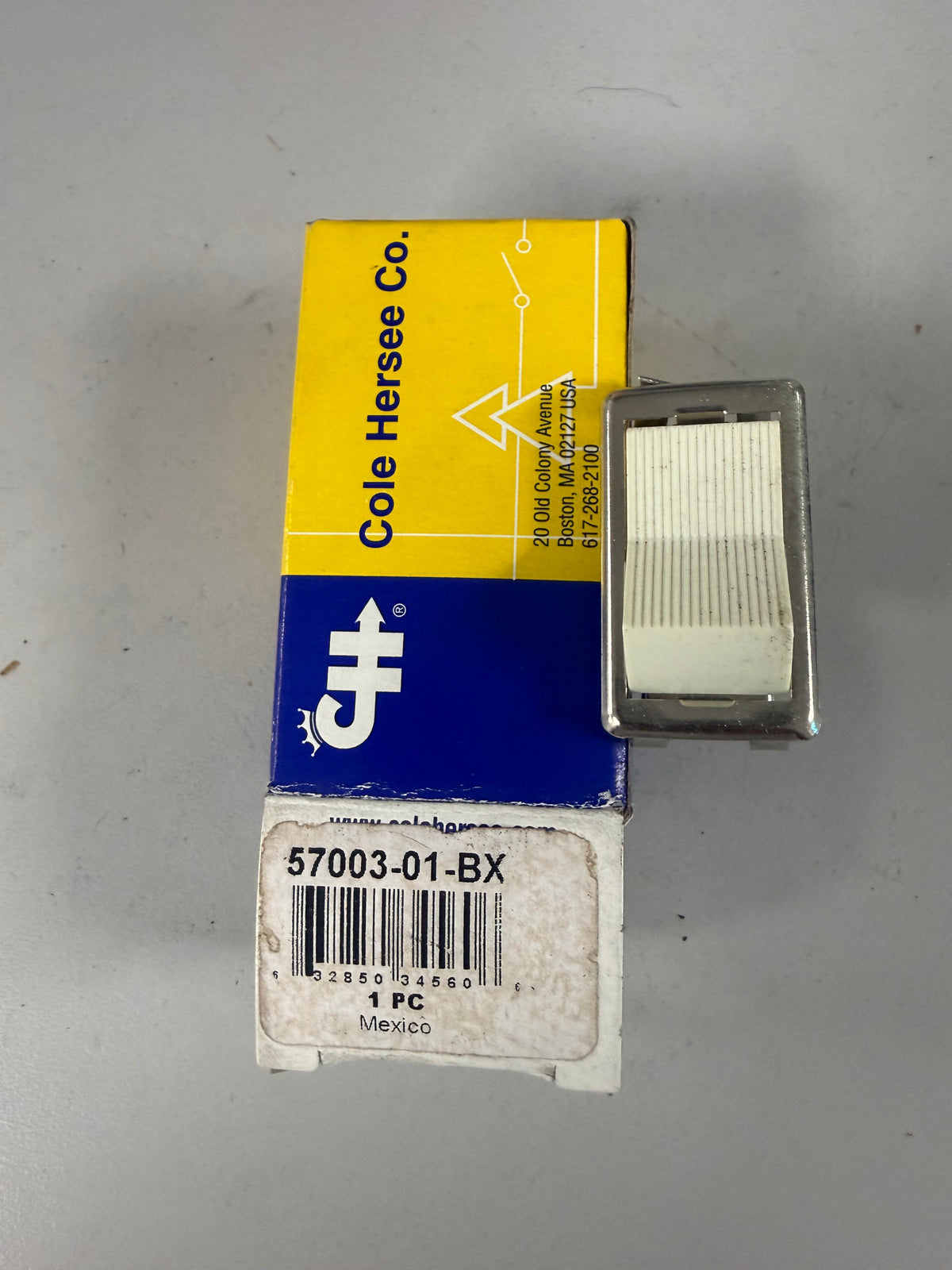

Cole Hersee 57003-01-BX heavy-duty Single-Pole, Double-Throw (SPDT) Standard Series Rocker Switch
Cole Hersee 57003-01-BX heavy-duty Single-Pole, Double-Throw (SPDT) Standard Series Rocker Switch
No reviews
Precio habitual
$24.62 USD
Precio habitual
Precio de oferta
$24.62 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specs
- Circuitry: Single-Pole, Double-Throw (SPDT)
- Switch Action: On - Off - On (Maintained in all positions; stays where you click it)
- Electrical Rating: Heavy-duty performance rated at 25A at 12V DC
- Terminals: 3 blade terminals (0.250" / 6.3mm quick-connect style)
- Contacts: High-conductivity silver contacts to prevent pitting and internal arcing
- Aesthetics: Features a clean white concave actuator paired with a bright finished bezel
- Housing & Body: Moisture-resistant molded plastic housing engineered for harsh vehicle environments
- Mounting: Snap-in panel mount design built to fit standard 0.83" x 1.45" (21.1mm x 36.8mm) rectangular dashboard cutouts
- Panel Thickness: Fits dashboard panels from 0.060" to 0.250" (1.5mm to 6.4mm) thick
