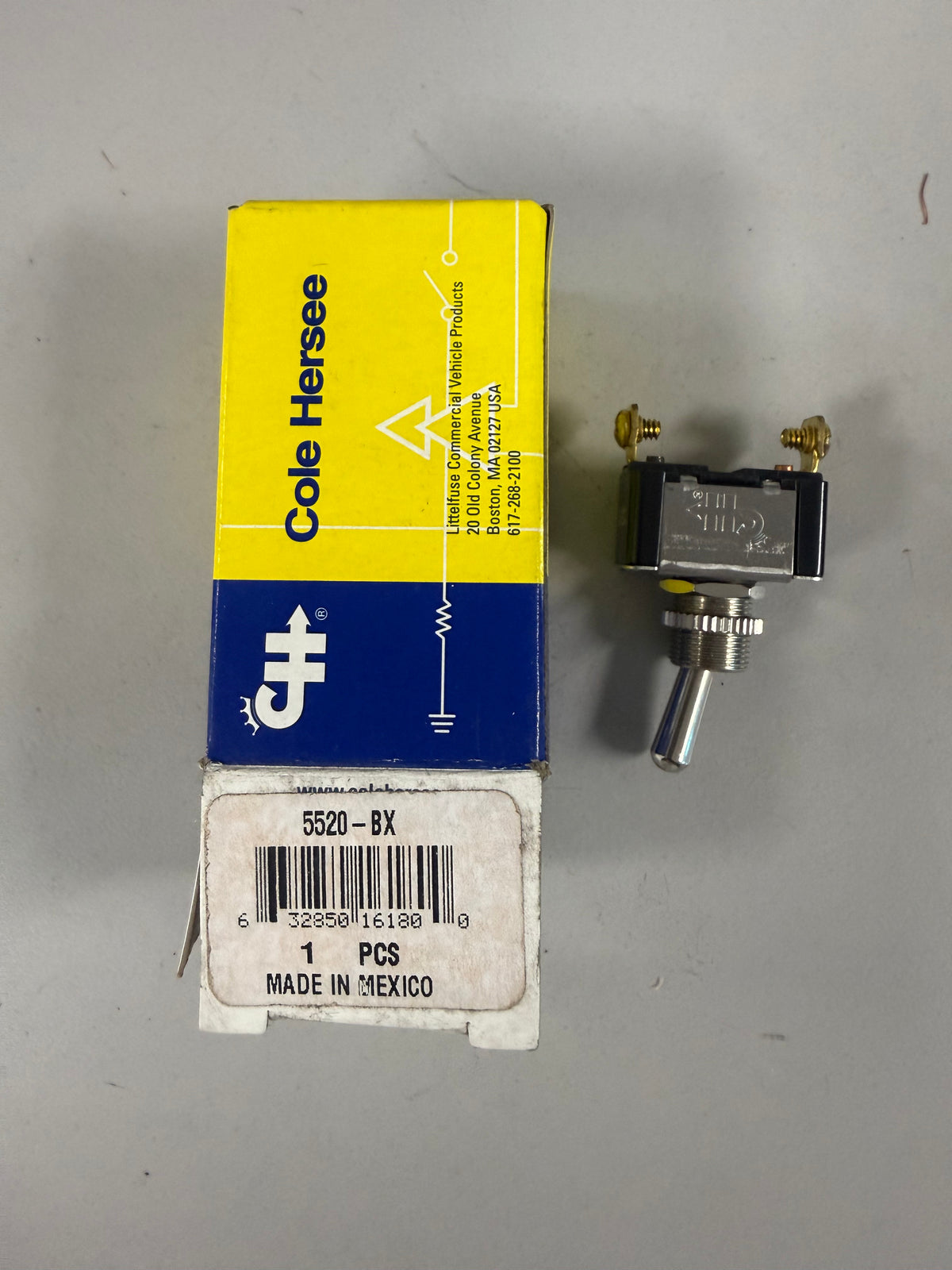

Cole Hersee 5520-BX heavy-duty Single-Pole, Single-Throw (SPST) Toggle Switch

Cole Hersee 5520-BX heavy-duty Single-Pole, Single-Throw (SPST) Toggle Switch

$7.64 USD
$7.64 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Core Specs

  • Circuitry: Single-Pole, Single-Throw (SPST) [1]
  • Switch Action: On - Off (Up position is On, Down position is Off) [1]
  • Electrical Ratings: Robust multi-voltage capacity:
    • 25A at 12V DC
    • 15A at 24V DC
    • 10A at 36V DC [1]
  • Terminals: 2 screw terminals (6-32 thread copper hardware) [1]
  • Contacts: High-conductivity silver contacts resist arcing and extend component life. [1, 2]
  • Housing & Construction: Moisture-resistant plastic Bakelite housing topped with a plated steel cap. [1]
  • Actuator: Standard 11/16" long nickel-plated brass bat handle. [1]
  • Mounting: 15/32"-32 thread nickel-plated brass mounting stem (15/32" / 11.9mm long); fits panels up to 9/32" (7.1mm) thick.
Ver todos los detalles
