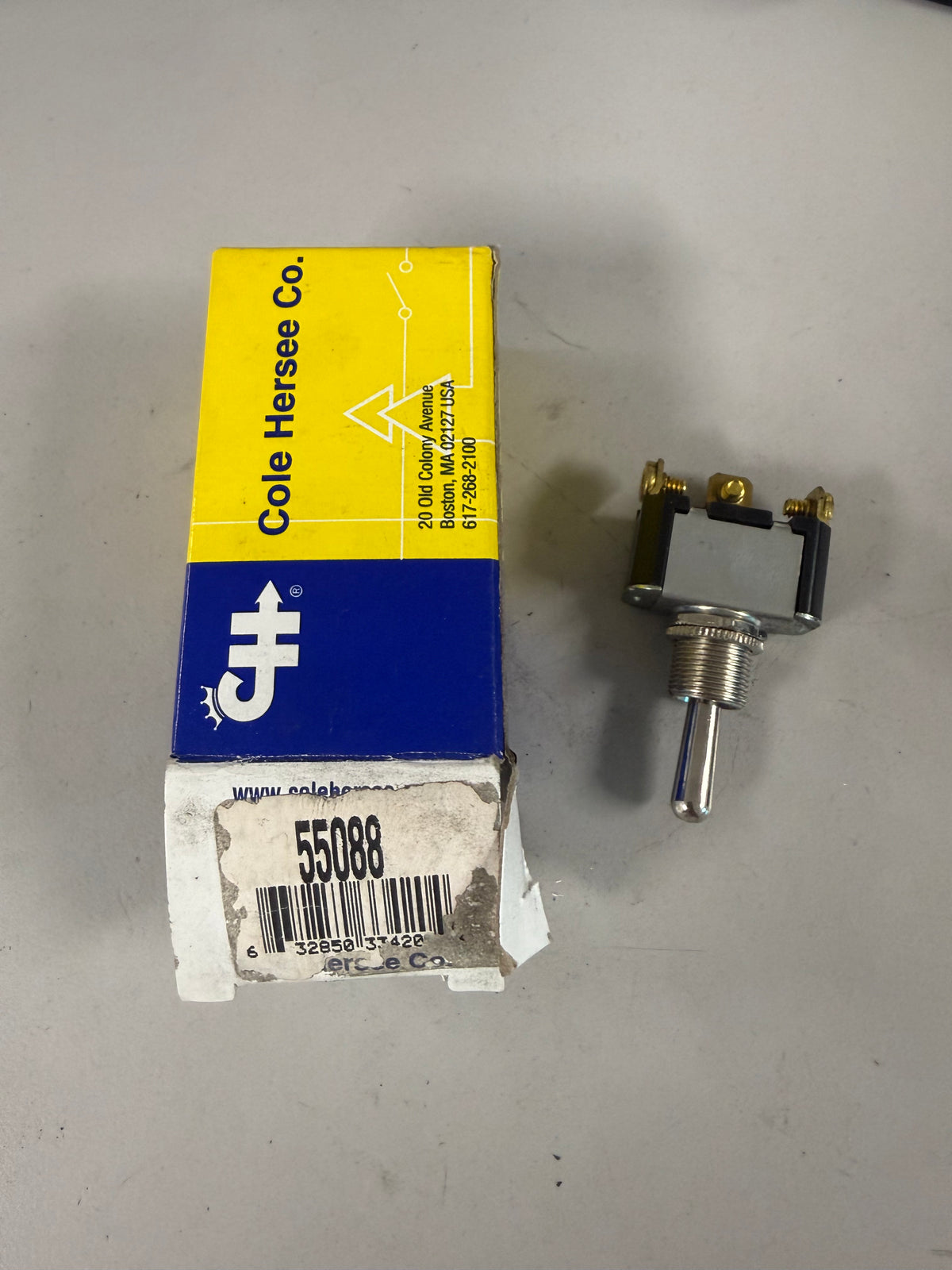

Cole Hersee 55088 heavy-duty Single-Pole, Double-Throw (SPDT) Toggle Switch

Cole Hersee 55088 heavy-duty Single-Pole, Double-Throw (SPDT) Toggle Switch

$12.29 USD
$12.29 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Core Specs

  • Circuitry: Single-Pole, Double-Throw (SPDT) [1]
  • Switch Action: On - Off - Momentary On (Often noted as On-Off-(On)) [1, 2]
  • Electrical Ratings: Robust multi-voltage capacity:
    • 25A at 12V DC
    • 15A at 24V DC
    • 10A at 36V DC [1]
  • Terminals: 3 screw terminals (6-32 thread copper hardware) [1, 2]
  • Contacts: High-conductivity silver contacts resist arcing and pitting. [1, 2]
  • Housing & Construction: Moisture-resistant phenolic Bakelite housing topped with a plated steel cap. [1, 2]
  • Actuator: Standard 11/16" (17.5mm) long nickel-plated brass bat handle. [1, 2]
  • Mounting: 15/32"-32 thread nickel-plated brass mounting stem (15/32" / 11.9mm long); fits dashboard panels up to 1/4" (6.4mm) thick.
