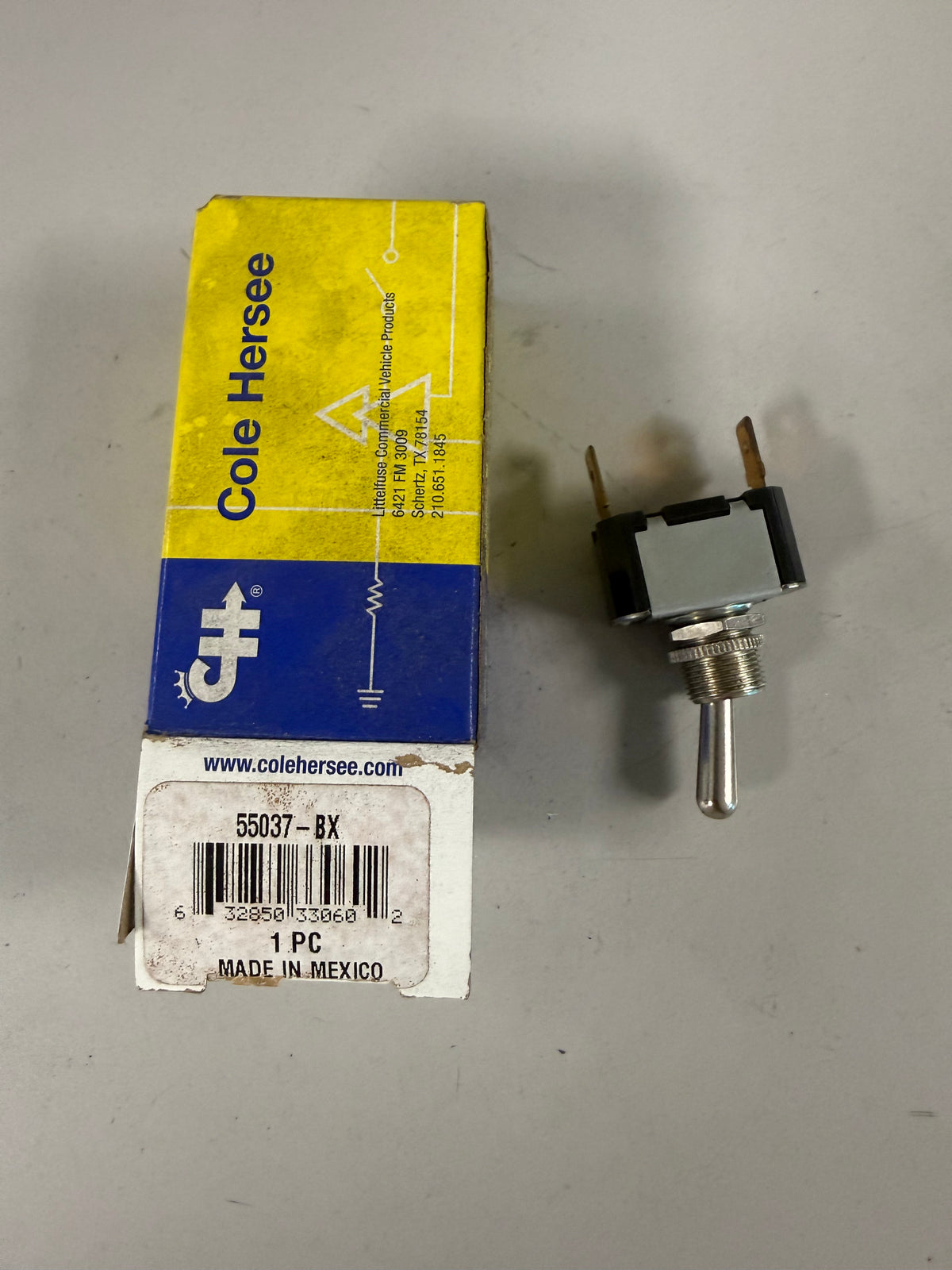

Cole Hersee 55037-BX heavy-duty Single-Pole, Single-Throw (SPST) Momentary Toggle Switch
Cole Hersee 55037-BX heavy-duty Single-Pole, Single-Throw (SPST) Momentary Toggle Switch
No reviews
Precio habitual
$8.44 USD
Precio habitual
Precio de oferta
$8.44 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specs
- Circuitry: Single-Pole, Single-Throw (SPST), Normally Open [1, 2]
- Switch Action: Momentary On - Off (Actuation notation is commonly listed as (On)-Off) [1, 2, 3, 4]
-
Electrical Ratings: Highly robust multi-voltage capability:
- 25A at 12V DC
- 15A at 24V DC
- 10A at 36V DC [1]
- Terminals: 2 male blade terminals (0.250" quick-connect layout) [1, 2]
- Contacts: High-conductivity silver contacts resist corrosion and arcing. [1]
- Housing & Construction: Moisture-resistant phenolic housing topped with a plated steel cap. [1]
- Actuator: Standard 11/16" long nickel-plated brass bat handle. [1, 2]
- Mounting: 15/32"-32 thread nickel-plated brass mounting stem (15/32" / 11.9mm long) that fits dashboard panels up to 9/32" (7.1mm) thick. [1]
