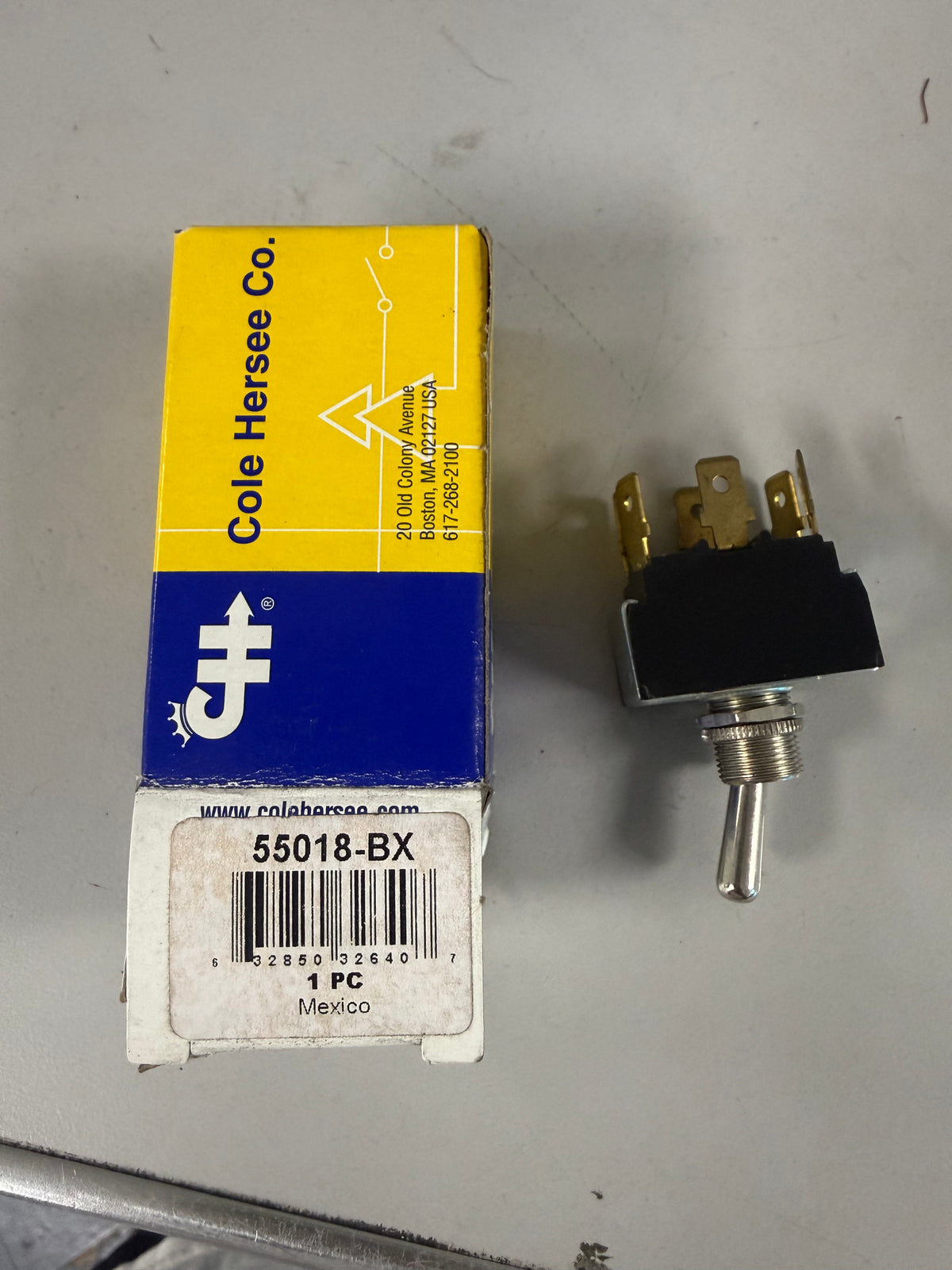

Cole Hersee 55018-BX heavy-duty Double-Pole, Double-Throw (DPDT) Toggle Switch
Cole Hersee 55018-BX heavy-duty Double-Pole, Double-Throw (DPDT) Toggle Switch
No reviews
Precio habitual
$9.95 USD
Precio habitual
Precio de oferta
$9.95 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specs
- Circuitry: Double-Pole, Double-Throw (DPDT) [1]
- Switch Action: On - On (Up position switches one set of circuits on; Down position alternates to the second set) [1, 2]
-
Electrical Ratings: Heavy-duty multi-voltage operation:
- 25A at 12V DC
- 15A at 24V DC
- 10A at 36V DC [1]
- Terminals: 6 blade terminals (0.250" quick-connect layout) [1, 2]
- Contacts: High-conductivity silver contacts resist arcing and extend the product life cycle. [1, 2]
- Housing & Construction: Moisture-resistant phenolic housing topped with a rugged plated steel cap. [1, 2]
- Actuator: Standard 11/16" (17.5mm) long nickel-plated brass handle. [1, 2]
- Mounting: 15/32"-32 thread nickel-plated brass mounting stem (15/32" / 11.9mm long) that fits dashboard panels up to 1/4" (6.35mm) thick. [1, 2]
