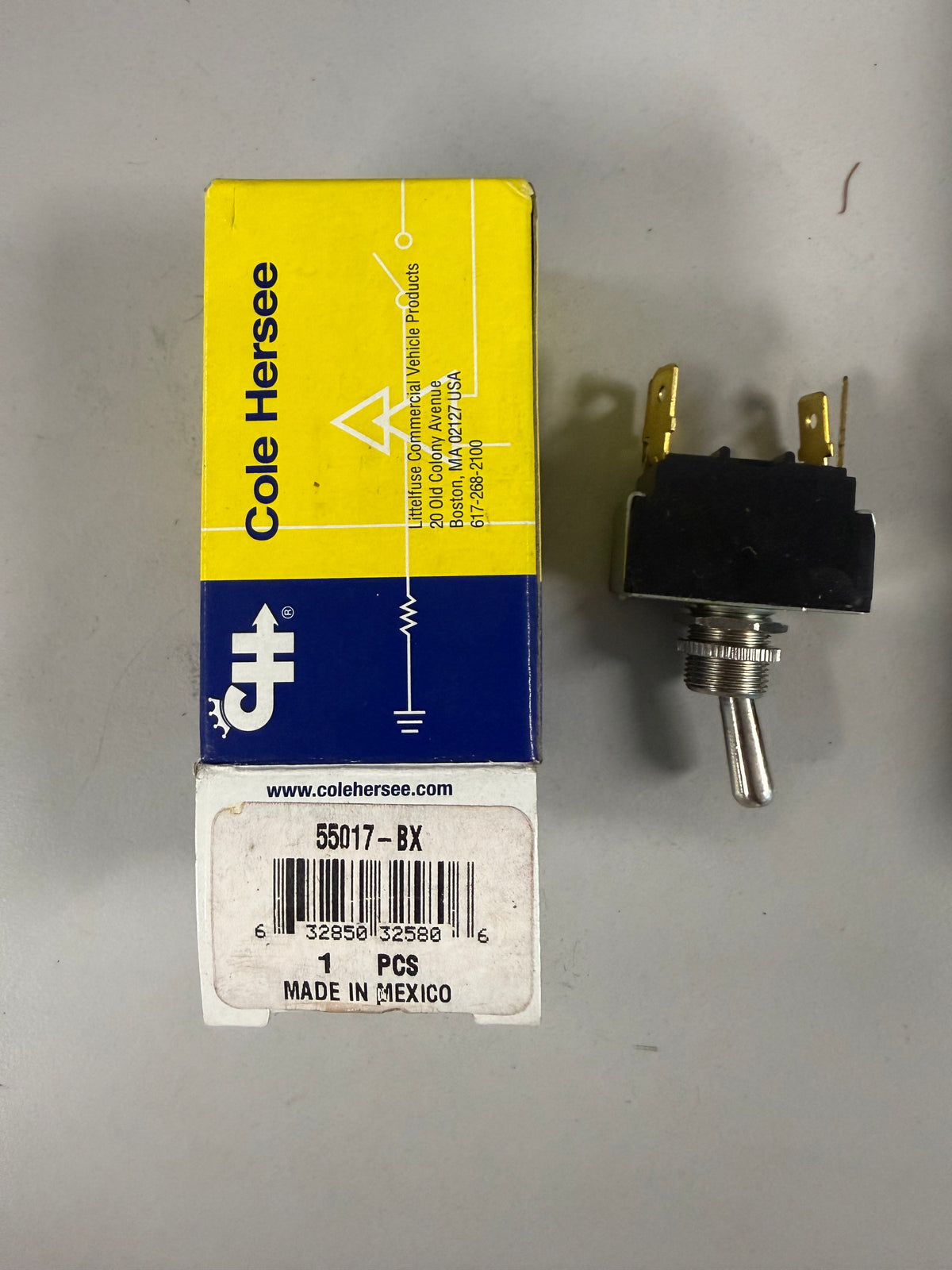

Cole Hersee 55017-BX standard heavy-duty Double-Pole, Single-Throw (DPST) Toggle Switch
Cole Hersee 55017-BX standard heavy-duty Double-Pole, Single-Throw (DPST) Toggle Switch
No reviews
Precio habitual
$25.91 USD
Precio habitual
Precio de oferta
$25.91 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specs
- Circuitry: Double-Pole, Single-Throw (DPST)
- Switch Action: On - Off (Up position is On, Down position is Off)
-
Electrical Ratings: Robust multi-voltage capacity:
- 25A at 12V DC
- 15A at 24V DC
- 10A at 36V DC
- Terminals: 4 blade terminals (0.250" quick-connect layout)
- Contacts: High-conductivity silver contacts for an extended product life cycle
- Housing & Construction: Moisture-and-dirt resistant phenolic housing topped with a rugged plated steel cap
- Actuator: Standard 11/16" (17.5mm) long nickel-plated brass handle
- Mounting: 15/32"-32 thread nickel-plated brass mounting stem (15/32" / 11.9mm long); fits dashboard panels up to 9/32" (7.1mm) thick.
