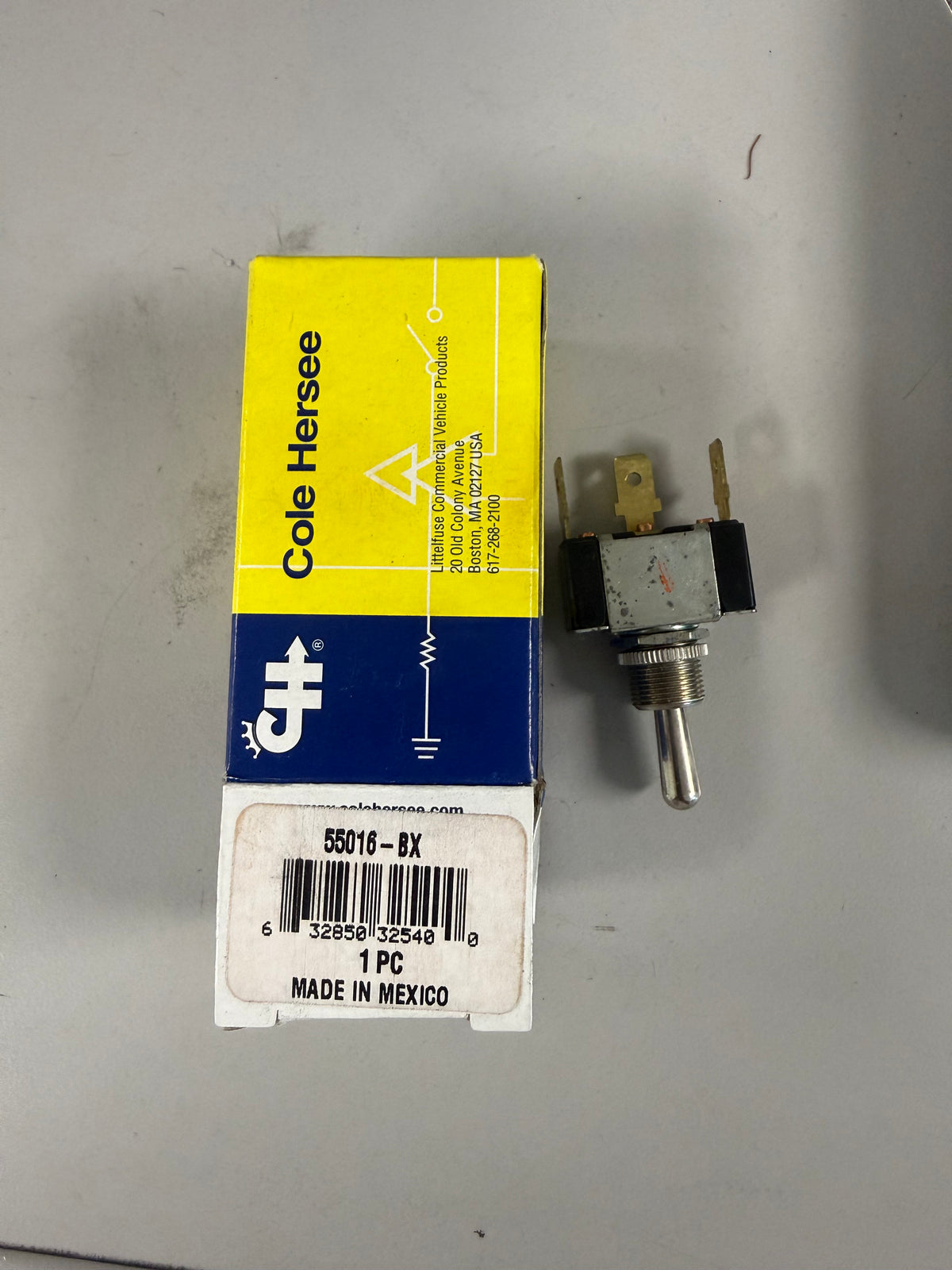

Cole Hersee 55016-BX heavy-duty Single-Pole, Double-Throw (SPDT) Toggle Switch
Cole Hersee 55016-BX heavy-duty Single-Pole, Double-Throw (SPDT) Toggle Switch
No reviews
Precio habitual
$9.19 USD
Precio habitual
Precio de oferta
$9.19 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specs
- Circuitry: Single-Pole, Double-Throw (SPDT) [1]
- Switch Action: On - Off - On (Up is On, Center is Off, Down is On) [1, 2]
-
Electrical Ratings: Heavy-duty multi-voltage capability:
- 25A at 12V DC
- 15A at 24V DC
- 10A at 36V DC [1]
- Terminals: 3 blade terminals (0.250" quick-connect style) [1]
- Contacts: High-conductivity silver contacts to resist arcing and pitting. [1]
- Housing & Construction: Moisture-resistant phenolic housing topped with a rugged plated steel cap. [1]
- Actuator: Standard 11/16" (17.5mm) long nickel-plated brass handle. [1, 2]
- Mounting: 15/32"-32 thread mounting stem (15/32" / 11.9mm long) that fits panels up to 9/32" (7.1mm) thick.
