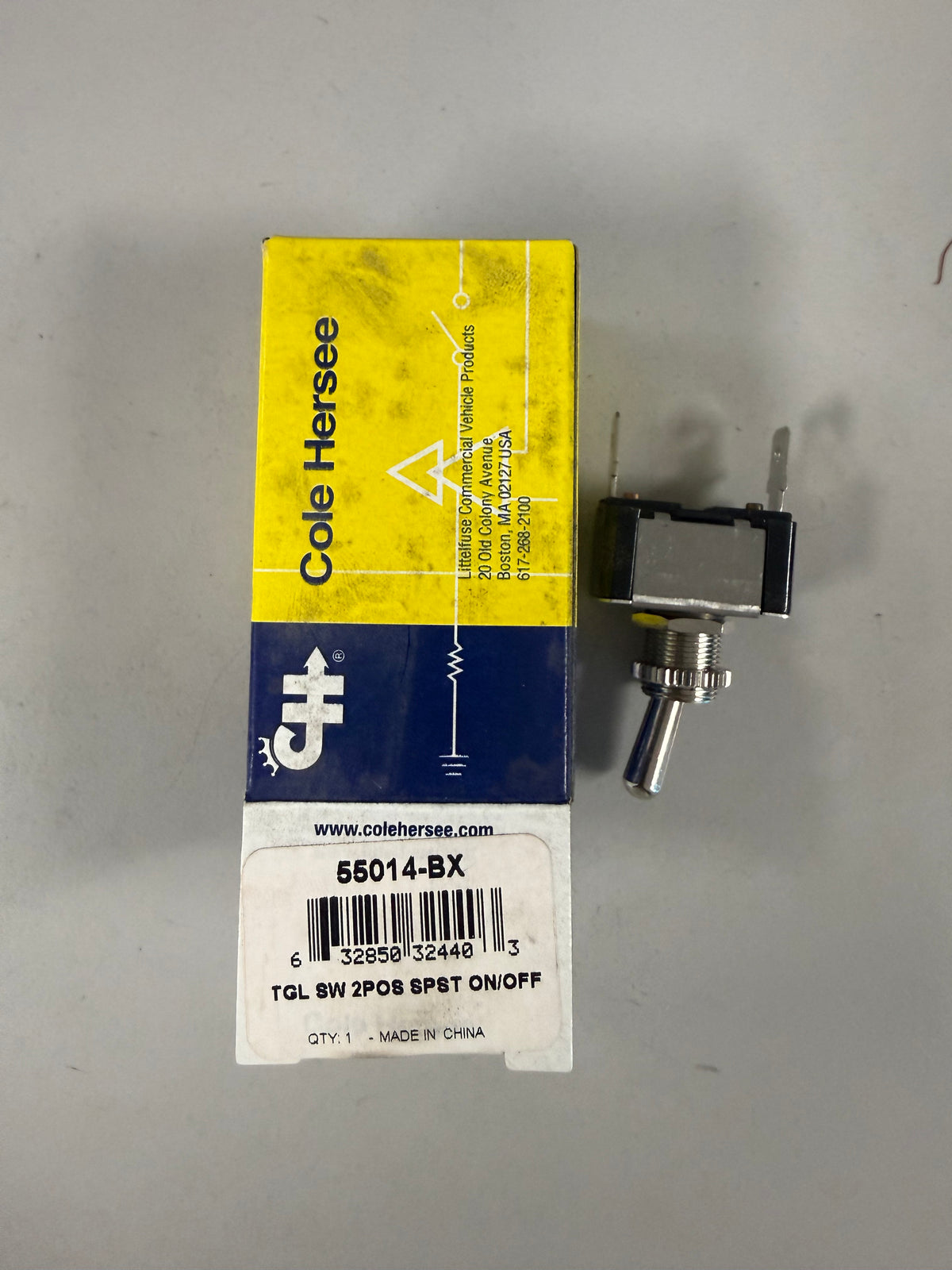

Cole Hersee 55014-BX heavy-duty Single-Pole, Single-Throw (SPST) Toggle Switch

Cole Hersee 55014-BX heavy-duty Single-Pole, Single-Throw (SPST) Toggle Switch

$9.44 USD
$9.44 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Core Specs

  • Circuitry: Single-Pole, Single-Throw (SPST) [1]
  • Switch Action: On - Off (Up position is On, Down position is Off) [1, 2]
  • Electrical Ratings: Highly capable multi-voltage capacity:
    • 25A at 12V DC
    • 15A at 24V DC
    • 10A at 36V DC [1]
  • Terminals: 2 blade terminals (0.250" quick-connect layout) [1, 2]
  • Contacts: High-conductivity silver contacts resist corrosion and ensure an extended product lifecycle. [1, 2]
  • Housing & Construction: Moisture-resistant phenolic housing topped with a plated steel cap. [1, 2]
  • Actuator: Standard 11/16" (17.5mm) long nickel-plated brass handle. [1, 2]
  • Mounting: 15/32"-32 thread nickel-plated brass mounting stem (15/32" / 11.9mm long) that fits panels up to 9/32" (7.1mm) thick. [1, 2]
