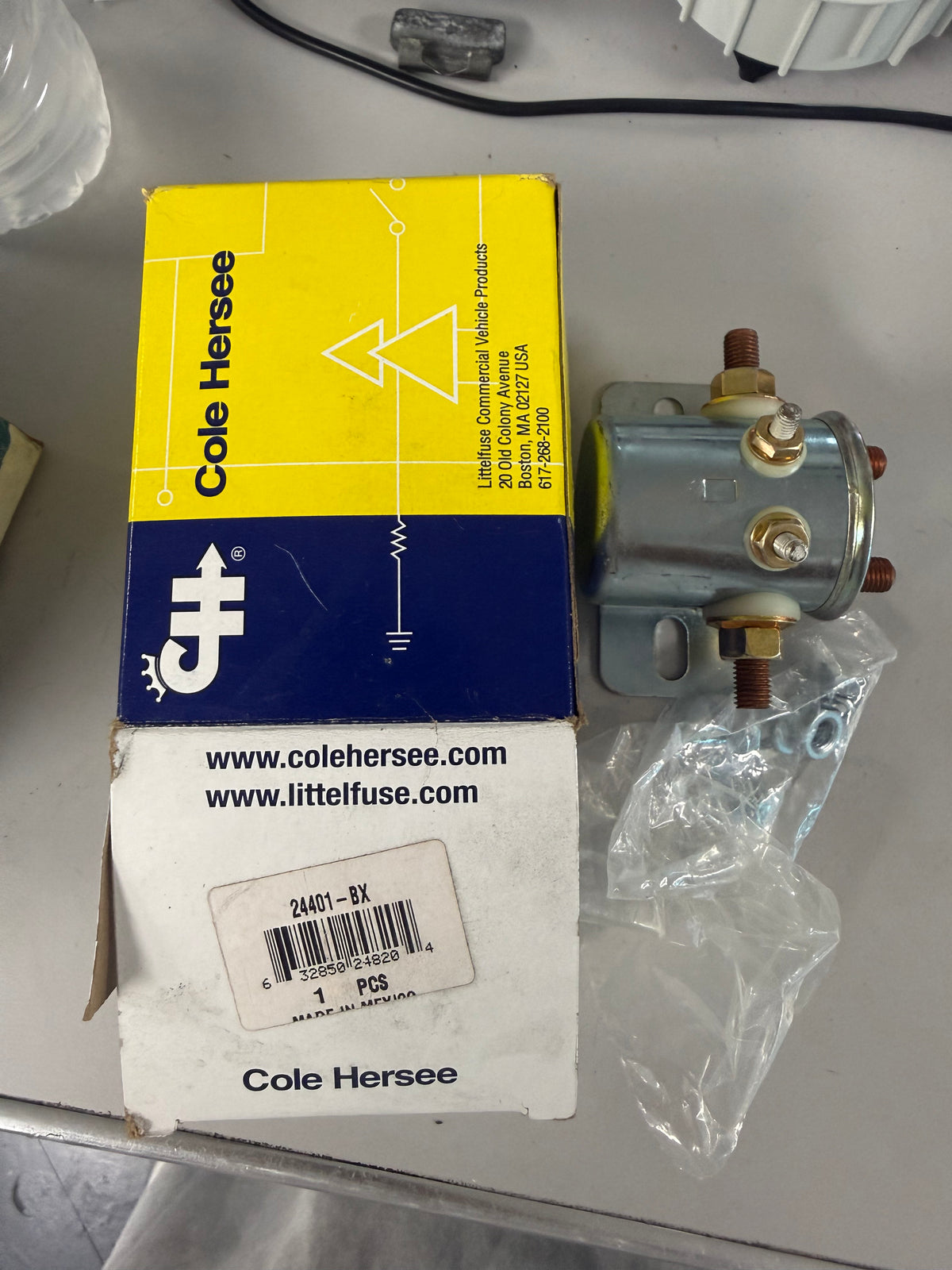

Cole Hersee 24401-BX heavy-duty 12V Two-Circuit Continuous Duty Solenoid

Cole Hersee 24401-BX heavy-duty 12V Two-Circuit Continuous Duty Solenoid

$54.49 USD
$54.49 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Core Specs

  • Circuitry: Single-Pole, Double-Throw (SPDT) / Double-Acting DPST layout [1, 2]
  • Voltage: Rated for 12V DC (17.5 Ohm coil resistance) [1, 2]
  • Amperage Rating:
    • 85A continuous current on the Normally Open (N.O.) contacts
    • 35A continuous current on the Normally Closed (N.C.) contacts [1, 2]
  • Duty Cycle: Continuous Duty (Capable of staying energized long-term without overheating) [1]
  • Housing: Plated steel housing with a straight mounting bracket [1]
  • Terminals: 6-stud layout (or 5-stud depending on exact sub-variant) using conductive copper hardware
    • Power studs: Four 5/16"-24 thread copper terminals
    • Control/Coil studs: Two 10-32 thread terminals [1, 2, 3, 4]
  • Design: Insulated construction, meaning the internal coil circuit is completely isolated from the steel mounting bracket (does not ground through the chassis). [1, 2]
