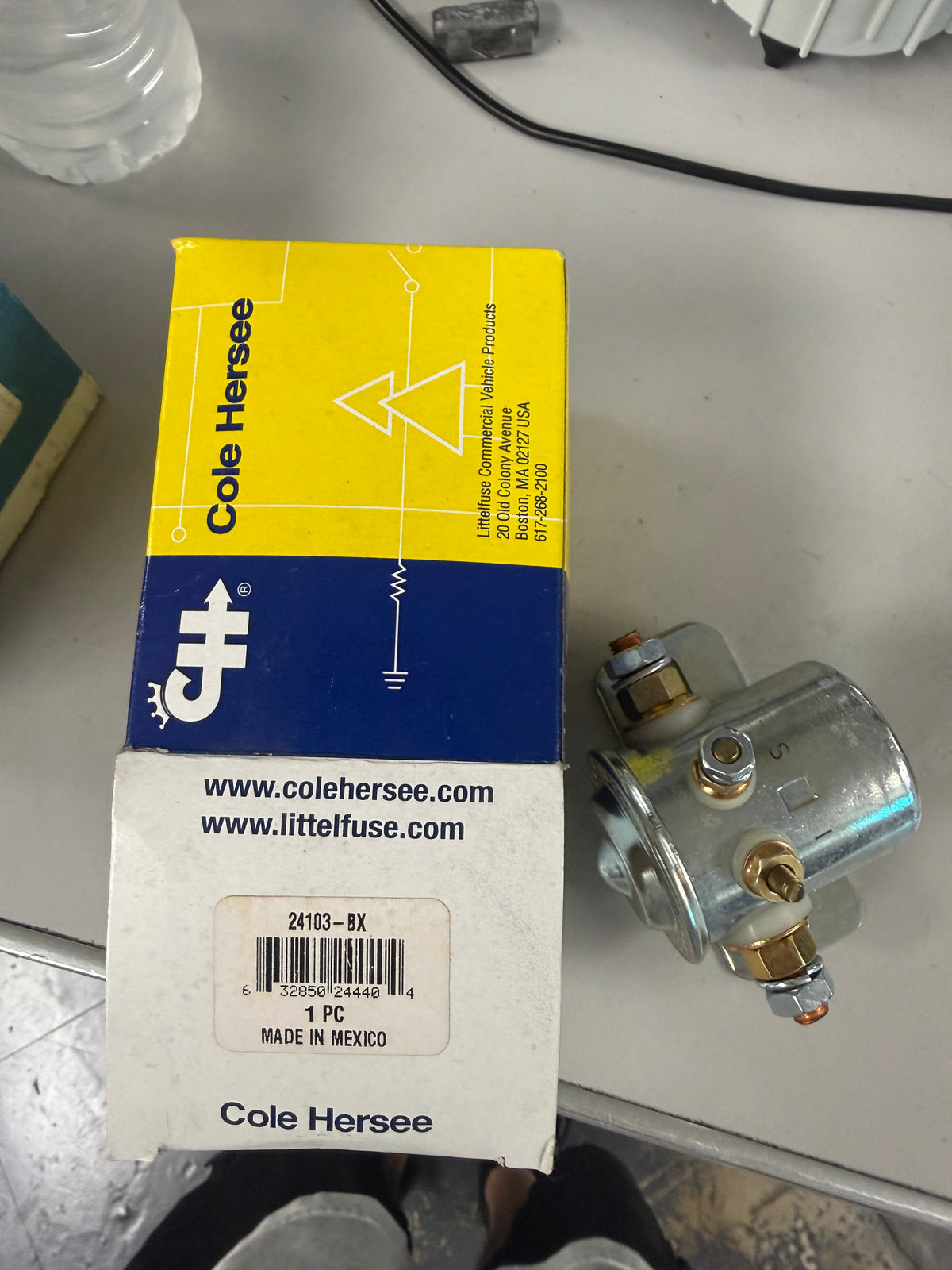

Cole Hersee 24103-BX heavy-duty 12V SPST Intermittent Duty Solenoid
Cole Hersee 24103-BX heavy-duty 12V SPST Intermittent Duty Solenoid
No reviews
Precio habitual
$43.34 USD
Precio habitual
Precio de oferta
$43.34 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specs
- Circuitry: Single-Pole, Single-Throw (SPST), Normally Open (N.O.) [1, 2]
- Voltage: Rated for 12V DC (4.4 Ohm insulated coil impedance) [1, 2]
- Amperage: 750A Make (inrush / surge) and 100A Break continuous [1, 2]
- Duty Cycle: Intermittent Duty (Rated for a maximum of 10 seconds ON, requiring a 20-minute cooldown OFF) [1, 2]
- Housing: Plated steel housing with a flat bracket mount [1, 2]
-
Terminals: 4-stud configuration
- Two large copper power studs: 5/16"-24 thread
- Two small copper control studs: 10-32 thread (one for activation, one "R" terminal for the resistor shorting circuit)
