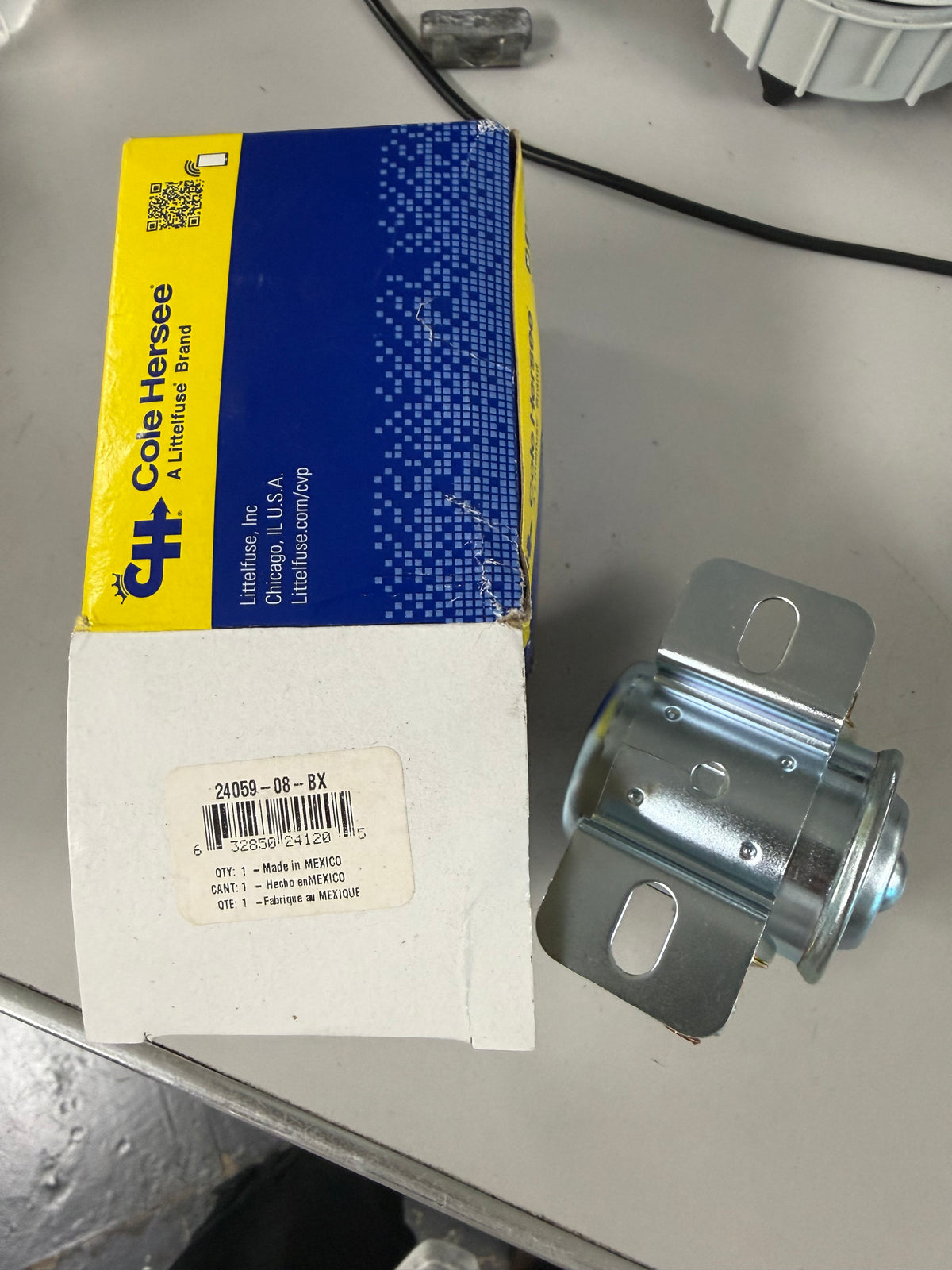

Cole Hersee 24059-08-BX heavy-duty 12V SPST Continuous Duty Solenoid

Cole Hersee 24059-08-BX heavy-duty 12V SPST Continuous Duty Solenoid

$46.80 USD
$46.80 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Core Specs

  • Circuitry: Single-Pole, Single-Throw (SPST), Normally Open (N.O.) [1]
  • Voltage: Rated for 12V DC (with a coil resistance of 17.5 Ohms) [1, 2]
  • Amperage: 65A continuous current rating (handles a 750A inrush "make" and 100A "break") [1]
  • Duty Cycle: Continuous Duty [1]
  • Housing: Rugged plated steel housing with a flat mounting bracket [1]
  • Terminals: 4-stud configuration using highly conductive copper hardware
    • Two large power studs: 5/16"-24 thread
    • Two small control studs: 10-32 thread [1, 2, 3]
  • Design: Insulated coil construction, which isolates the control studs from the metal housing bracket so it does not rely on a chassis ground. [1]
  • Packaging: The "-BX" suffix signifies that it is individually boxed for retail sale. [1]
