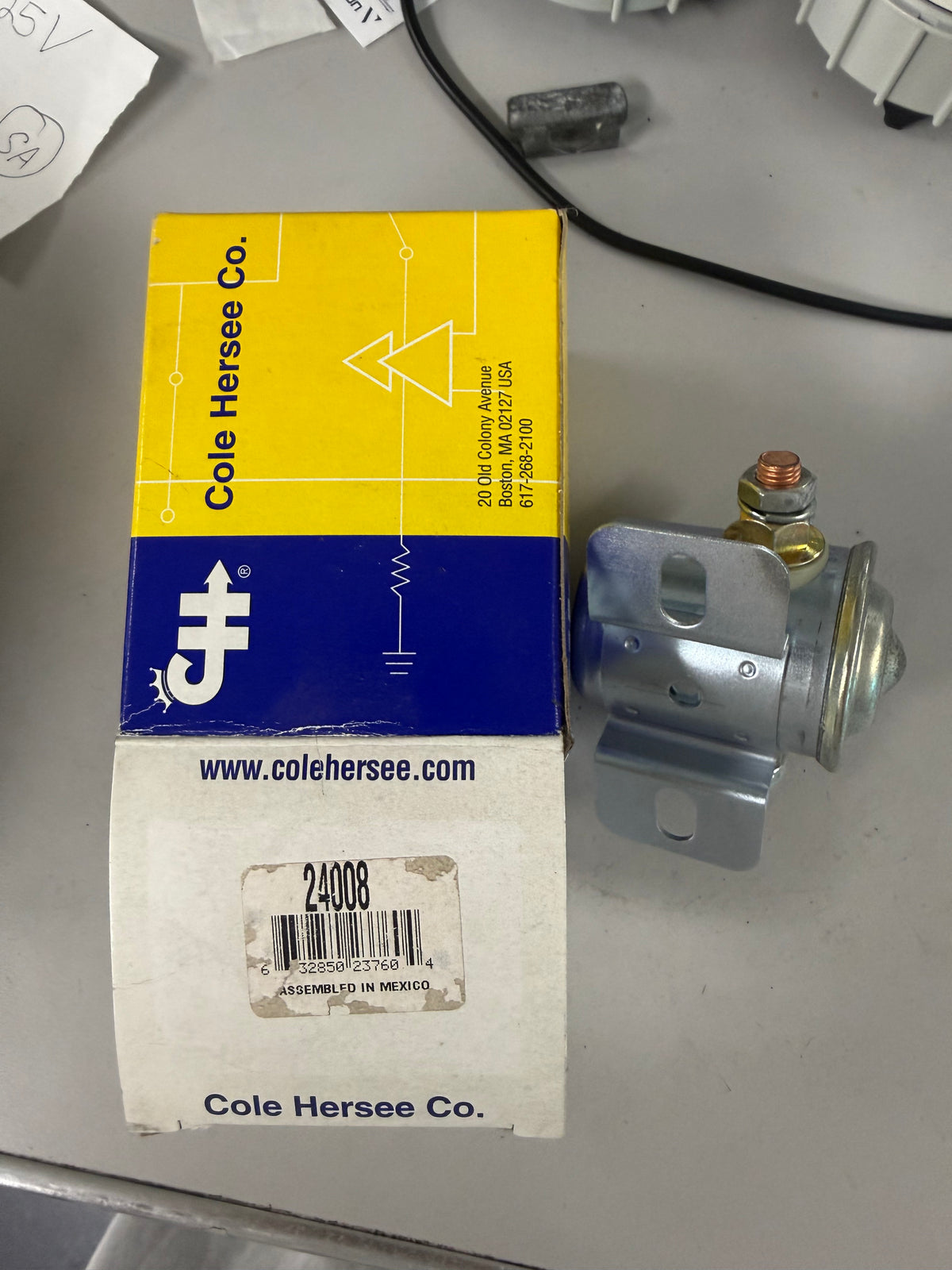

Cole Hersee 24008 heavy-duty 24V SPST Intermittent Duty Solenoid
Cole Hersee 24008 heavy-duty 24V SPST Intermittent Duty Solenoid
No reviews
Precio habitual
$44.99 USD
Precio habitual
Precio de oferta
$44.99 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Core Specs
- Circuitry: Single-Pole, Single-Throw (SPST), Normally Open (N.O.)
- Voltage: Rated for 24V DC
- Amperage: 120A Make (inrush current) / 65A Break (continuous interruption)
- Duty Cycle: Intermittent Duty (Do not keep energized for extended periods)
- Housing: Plated steel housing with a 4-stud configuration
-
Terminals:
- Two large electrical studs: 5/16"-24 thread copper terminals
- Two small coil/ignition studs: 10-32 thread terminals
- Design: Insulated construction, meaning the ground connection is a separate stud rather than grounded through the metal chassis bracket.
