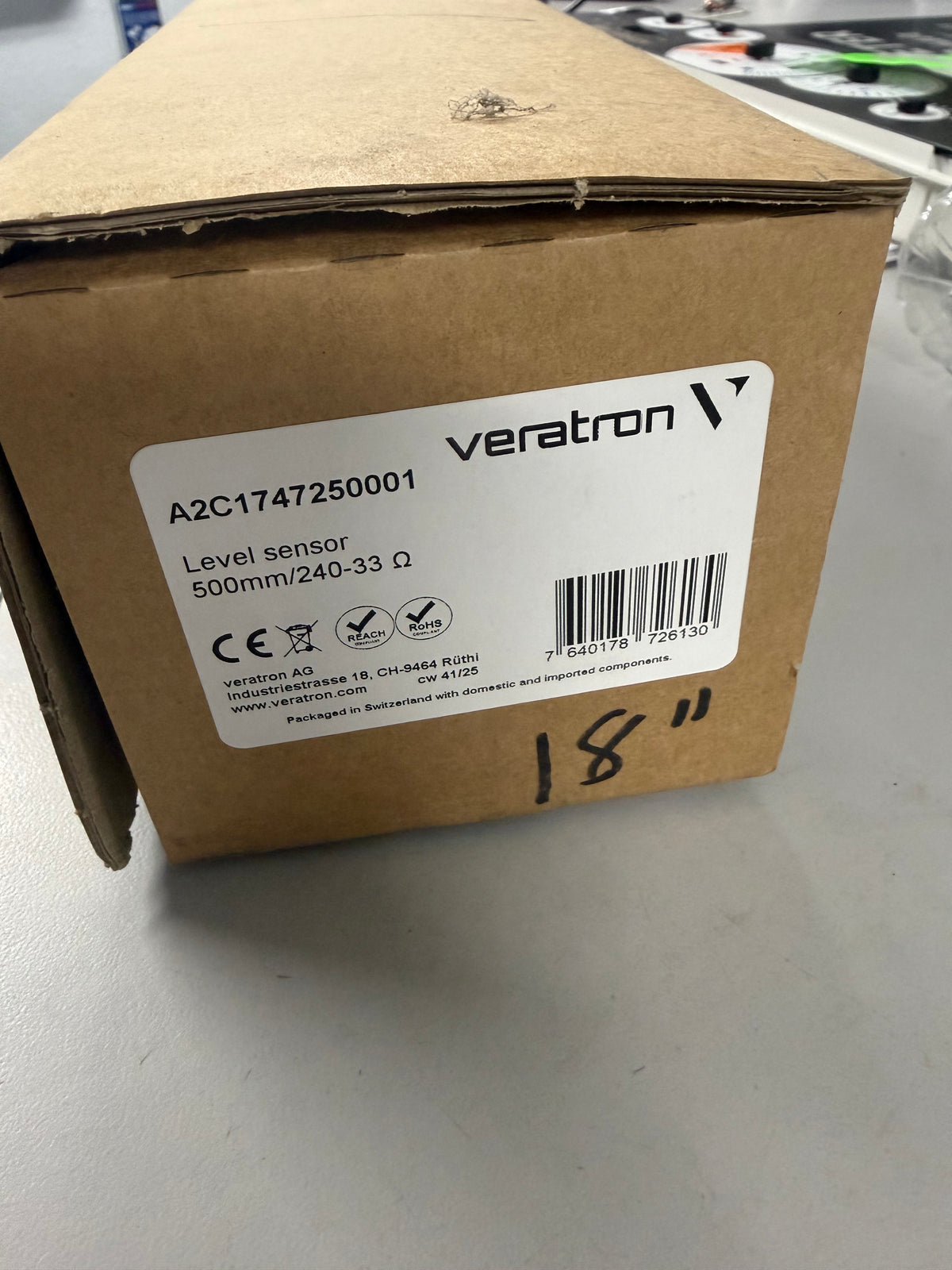

Veratron A2C1747250001 high-precision, heavy-duty 500mm tubular liquid level sensor
Veratron A2C1747250001 high-precision, heavy-duty 500mm tubular liquid level sensor
No reviews
Normaler Preis
$107.30 USD
Normaler Preis
Verkaufspreis
$107.30 USD
Versand wird beim Checkout berechnet
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
Key Specifications
| Feature | Specification | Detail / Purpose |
|---|---|---|
| Part Number | A2C1747250001 | Official manufacturer SKU |
| Sensor Length | 500 mm | Designed for deep tanks; requires at least a 4mm bottom clearance |
| Resistance / Calibration | 240–33 Ω | Standard ABYC American marine protocol (Full to Empty) |
| Tube Diameter | 38 mm | Compact vertical cross-section |
| Material | Stainless Steel (SS 316) | Maximum corrosion resistance against aggressive fuels and saltwater |
| Connector Type | TE Superseal 2-Pole | Waterproof marine-grade connection with a 200mm wiring harness |
| Protection Rating | IP67 | Completely sealed against high dust and water immersion |
| Operating Temp Range | -25°C to 65°C (-13°F to 149°F) | Performs reliably in extreme temperature conditions |
| Operating Voltage | 6 to 24 VDC | Fully compatible with 12V and 24V marine networks |
