Lauderdale Speedometer & Compass

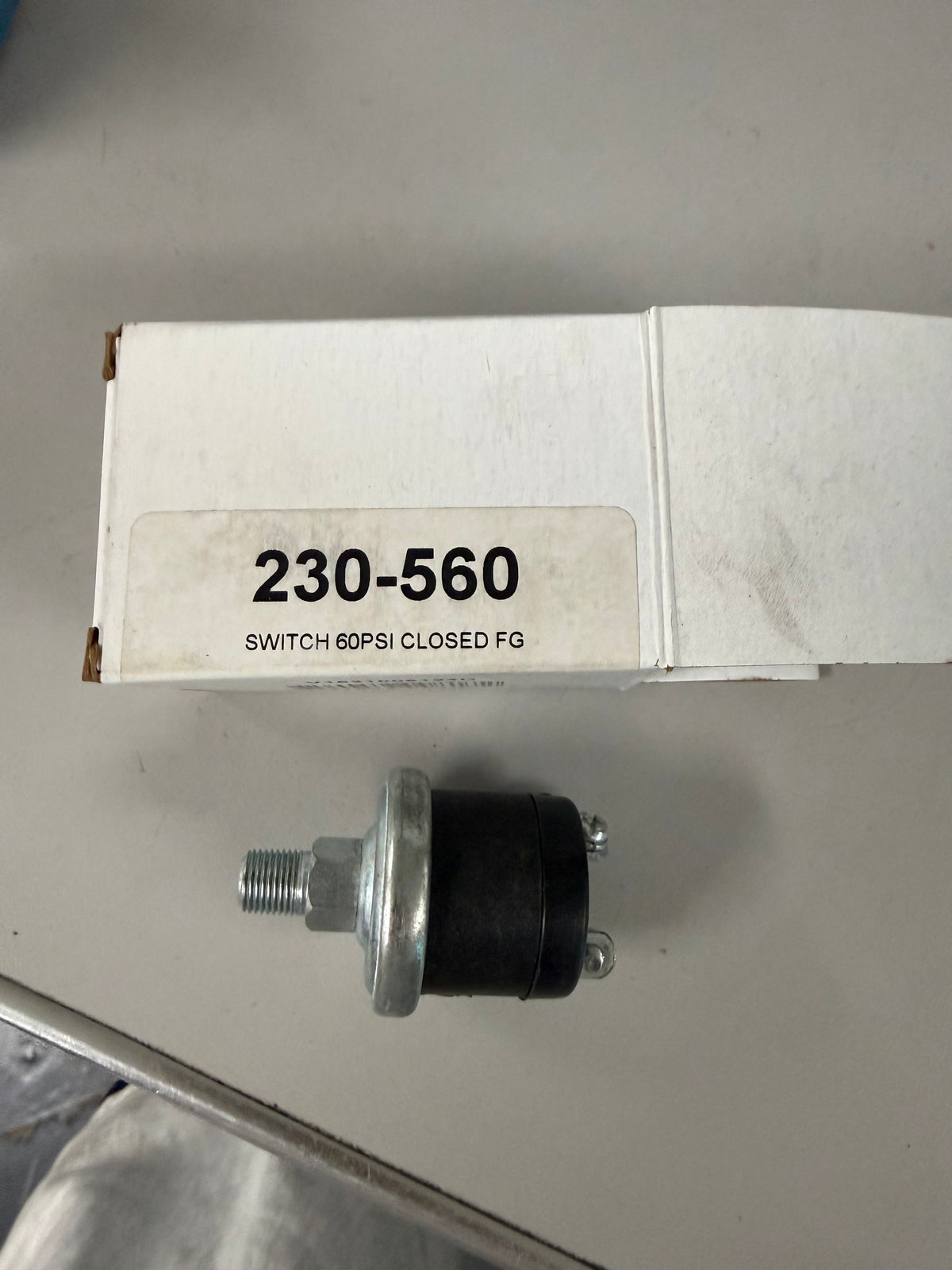

VDO heavy-duty, single-circuit high-pressure safety switch calibrated with a 60 PSI warning contact point #230-560

VDO heavy-duty, single-circuit high-pressure safety switch calibrated with a 60 PSI warning contact point #230-560

$13.99 USD
$13.99 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
Key Technical Specifications
  • Circuit Type: Normally Closed (N.C.) — The contacts stay closed at zero or low pressure. Once system pressure safely reaches or climbs above 60 PSI, the circuit breaks open. [1]
  • Grounding: Floating ground with 2 screw terminals (#8-32 thread size), completely isolating the switch's structural body from electrical ground pathways. [1, 2]
  • Thread Fitting: Standard 1/8"-27 NPTF male tapered pipe thread. [1]
  • Robust Build: Uses gold-plated silver alloy contacts, boasts a massive 700 PSI burst rating, and features standard waterproof capabilities up to 200 kPa. [1, 2]
