Lauderdale Speedometer & Compass

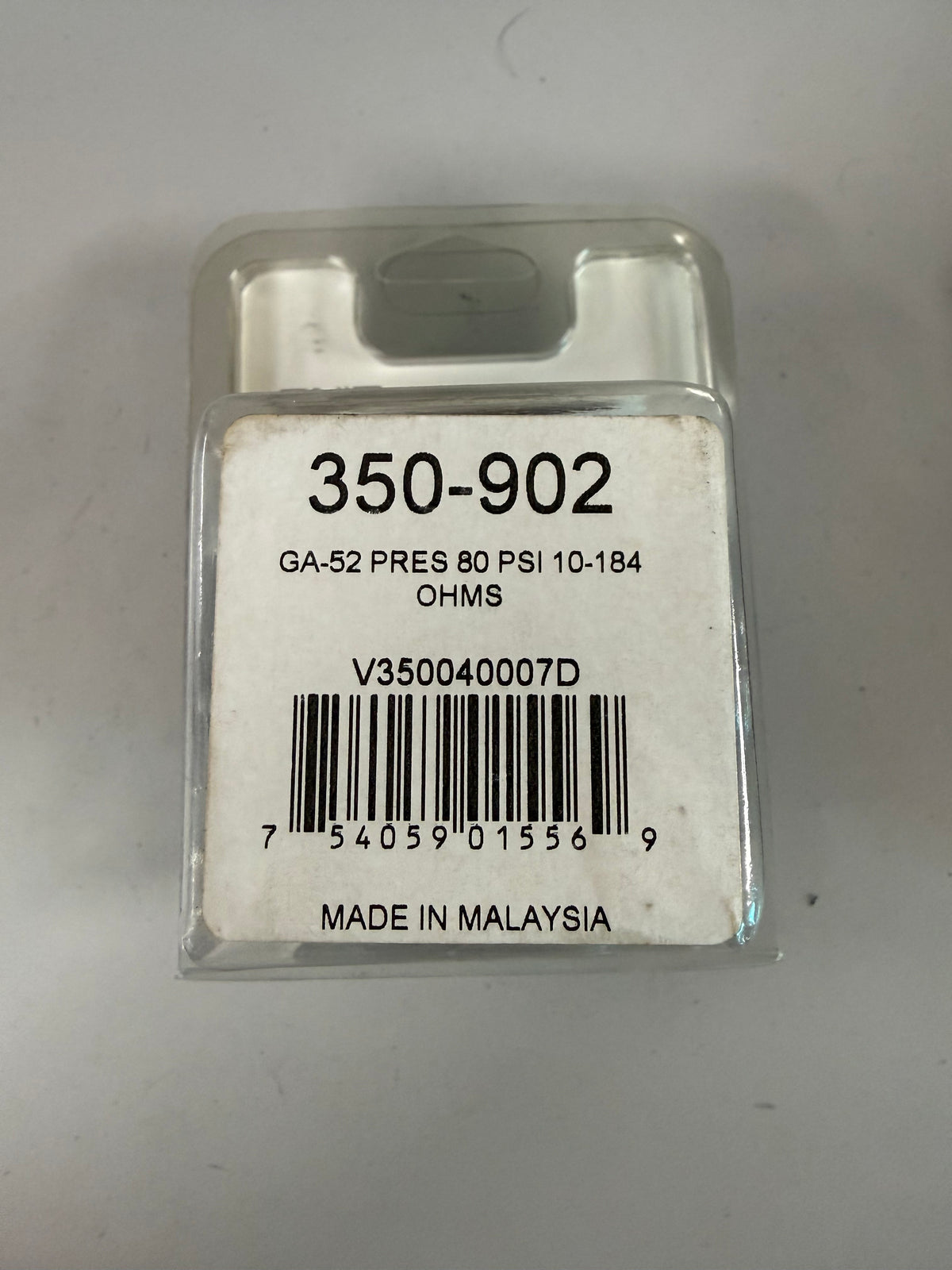

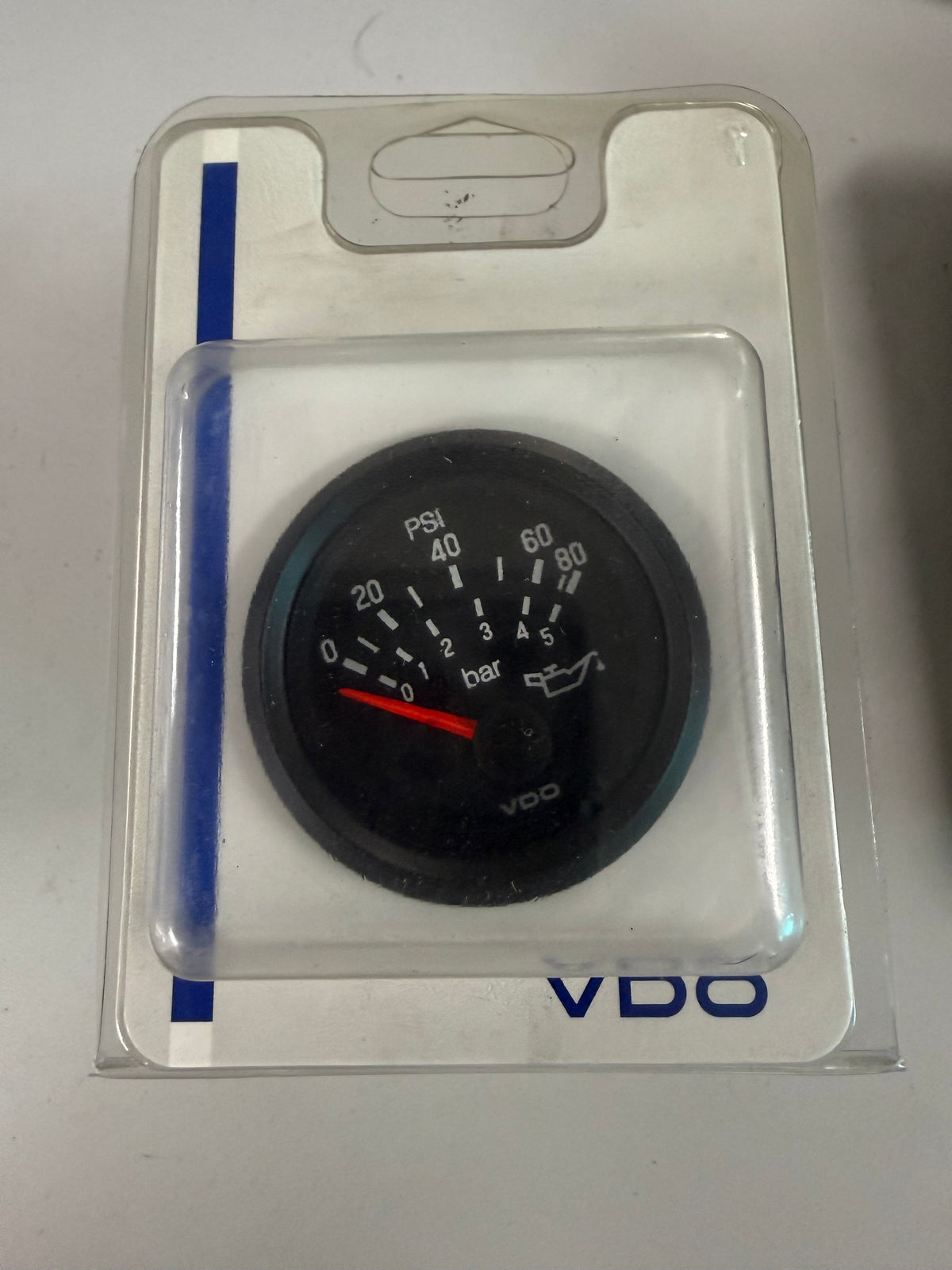

VDO 350-902 Cockpit International Series Electrical Oil Pressure Gauge

VDO 350-902 Cockpit International Series Electrical Oil Pressure Gauge

$59.33 USD
$59.33 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
Core Technical Specifications
  • Series: Cockpit International
  • Gauge Type: Electrical Oil Pressure
  • Pressure Scale: Dual scale showing 0 to 80 PSI and 0 to 5 bar (Short sweep analog layout).
  • Ohmic Signal Range: Universal 10Ω to 180Ω.
  • Diameter Size: Standard 2-1/16 inches (52mm metric diameter cutout).
  • Operating Voltage: 24V DC system compatibility.
  • Electrical Connection: Heavy-duty M4 thread studs.
  • Cockpit Styling Profile: Industrial flat matte black dial face, crisp white graphics, a solid red pointer needle, and a clean black-painted brass bezel.
  • Housing & Durability: Zinc-plated steel housing fitted with a single glass lens, matching an IP64 water- and dust-protection barrier to withstand high operational vibration. [1, 2, 3, 4]
