Lauderdale Speedometer & Compass

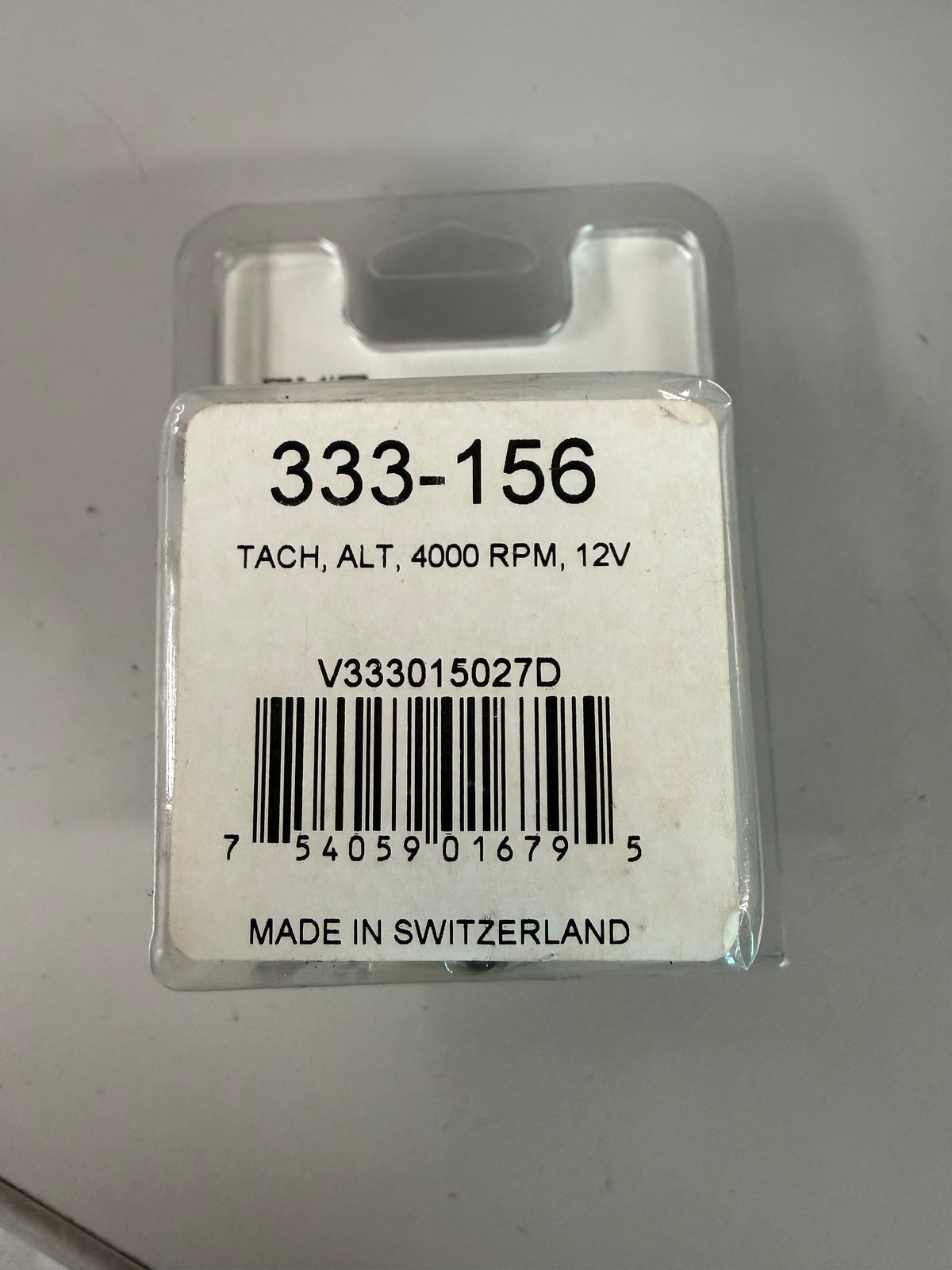

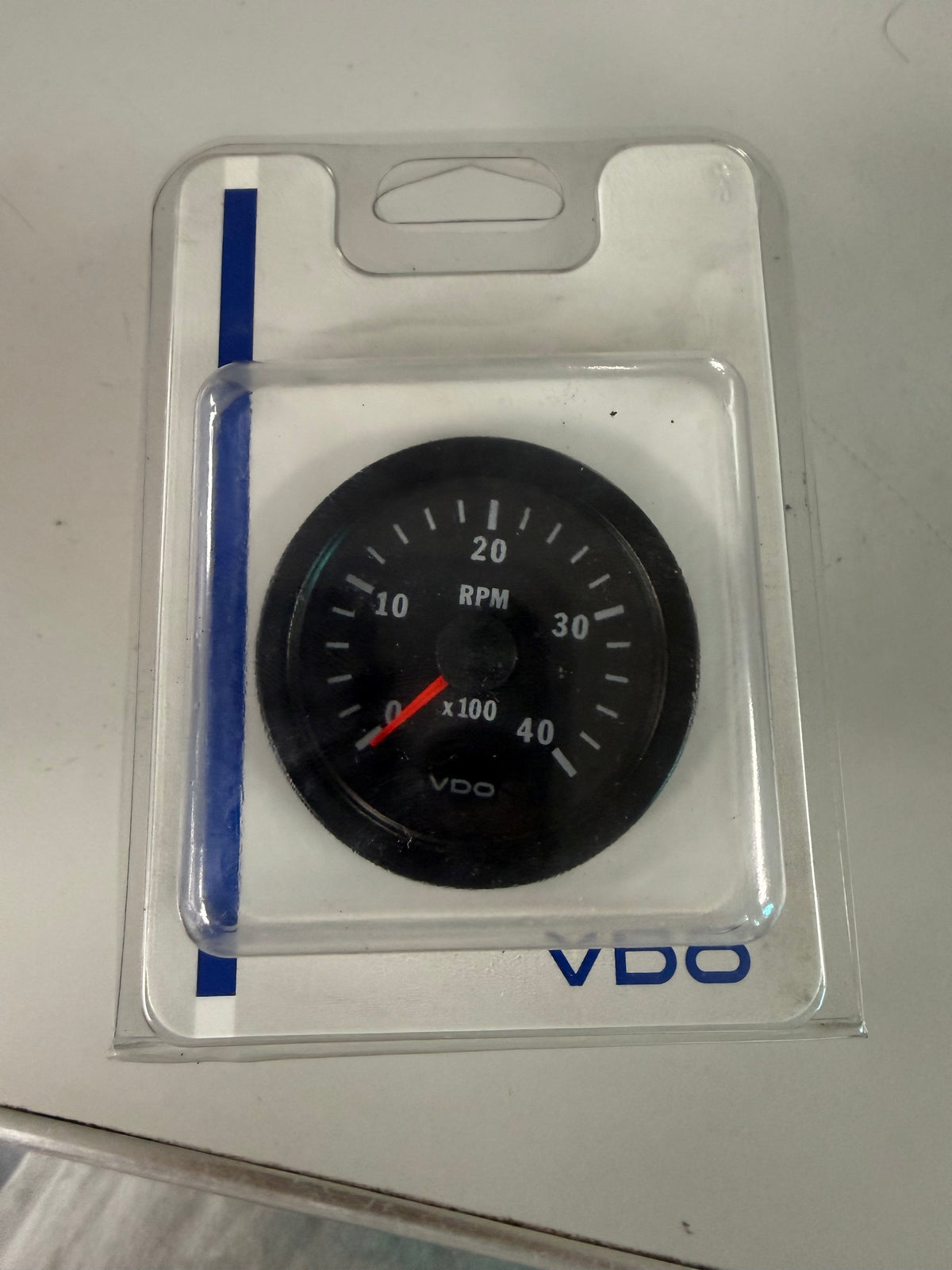

VDO 333-156 Vision Black Series Electrical Programmable Tachometer

VDO 333-156 Vision Black Series Electrical Programmable Tachometer

$159.00 USD
$159.00 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
Core Technical Specifications
  • Series: Vision Black
  • Gauge Type: Electrical Programmable Tachometer
  • Measurement Scale: 0–4,000 RPM (Full 270-degree sweep)
  • Diameter Size: Standard 2-1/16 inches (52mm metric cutout diameter)
  • Signal Input: Highly versatile; reads a 400–1300 Hz signal from an alternator "W" terminal, standard coil ignitions (on 4, 5, 6, or 8-cylinder engines), or square-wave electronic ignition control outputs.
  • Operating Voltage: 12V DC
  • Vision Aesthetics: Elegant matte black dial face, a matching low-profile black bezel, high-contrast white graphics, and a computer-balanced translucent red pointer needle.
  • Tri-Optic Illumination: Fiber-optic through-dial lighting includes green and red bulb diffuser caps. This allows you to easily change the dial face's nighttime backlight color tone from soft white to custom Red or Green.
  • Advanced Installation: Features VDO's Spin-Lok™ mounting hardware, a spin-on clamp ring that locks the gauge down with a full 360 degrees of uniform force. This specialized system prevents panel warping and keeps the housing from rotating over time.
  • Environmental & Wiring: Rated to IP64 water-resistance standards with mineral glass lens construction and rear .250" male spade connectors


    . [1, 2, 3, 4, 5]
