Lauderdale Speedometer & Compass

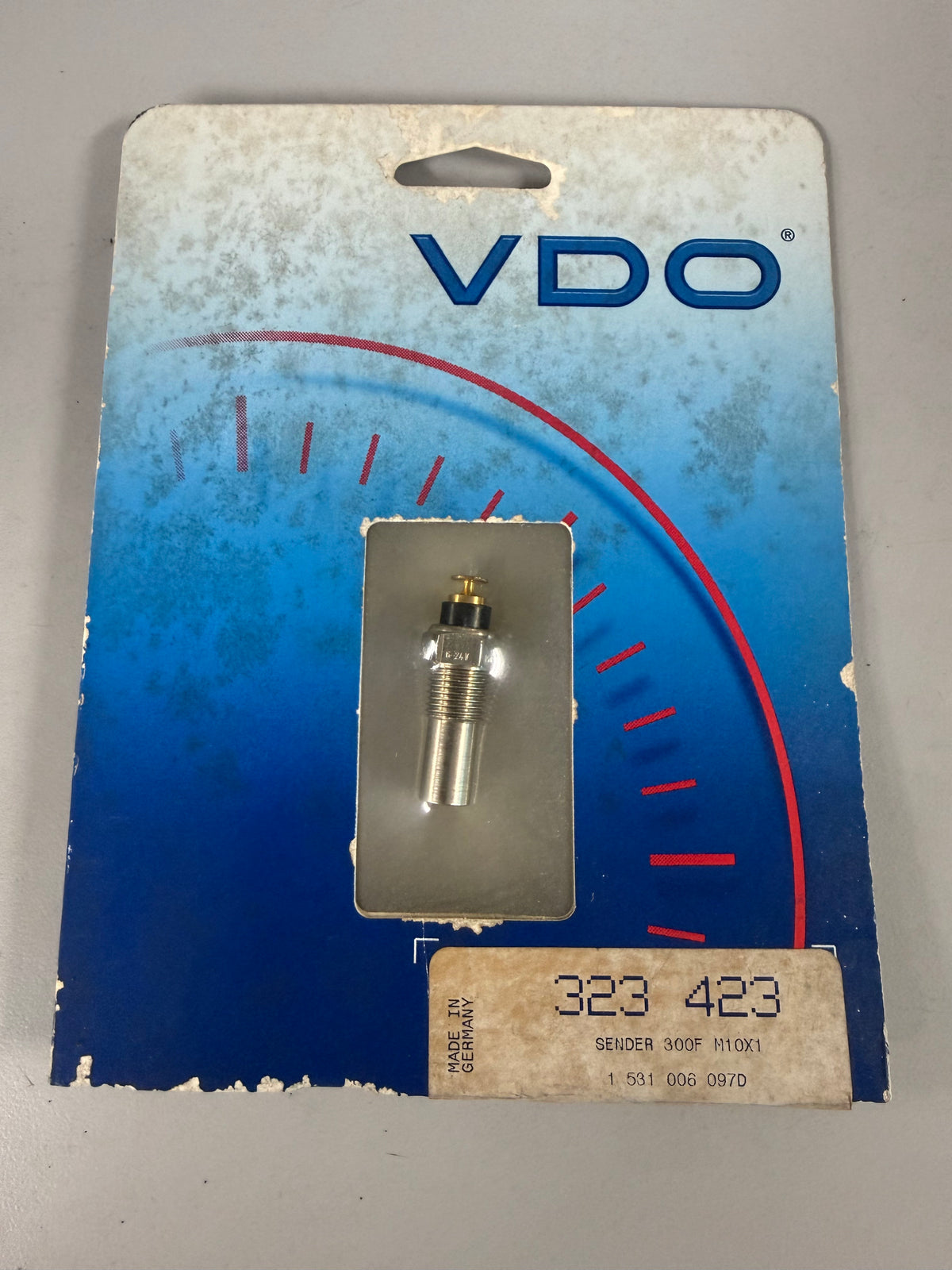

VDO 323-423 electrical fluid temperature sending unit primarily configured to track engine oil temperature
VDO 323-423 electrical fluid temperature sending unit primarily configured to track engine oil temperature
No reviews
Normaler Preis
$28.50 USD
Normaler Preis
Verkaufspreis
$28.50 USD
Versand wird beim Checkout berechnet
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
Technical Specs
- Thread Size: M10 x 1.0
- Temperature Range: Up to 300°F / 150°C
- Electrical Connection: Single 1-pin .250" Spade terminal (frequently referred to as a "nail head" or button connector style)
- Resistance Curve: 322.8 Ω (low scale) to 18.6 Ω (max scale), calibrated perfectly to match standard 10–180 Ω VDO dashboard gauges.
- Grounding: Standard chassis grounding through the brass body.
- Physical Dimensions: 52 mm (2-1/16") total length; 23 mm depth from the top of the threads to the probe tip.
