Lauderdale Speedometer & Compass

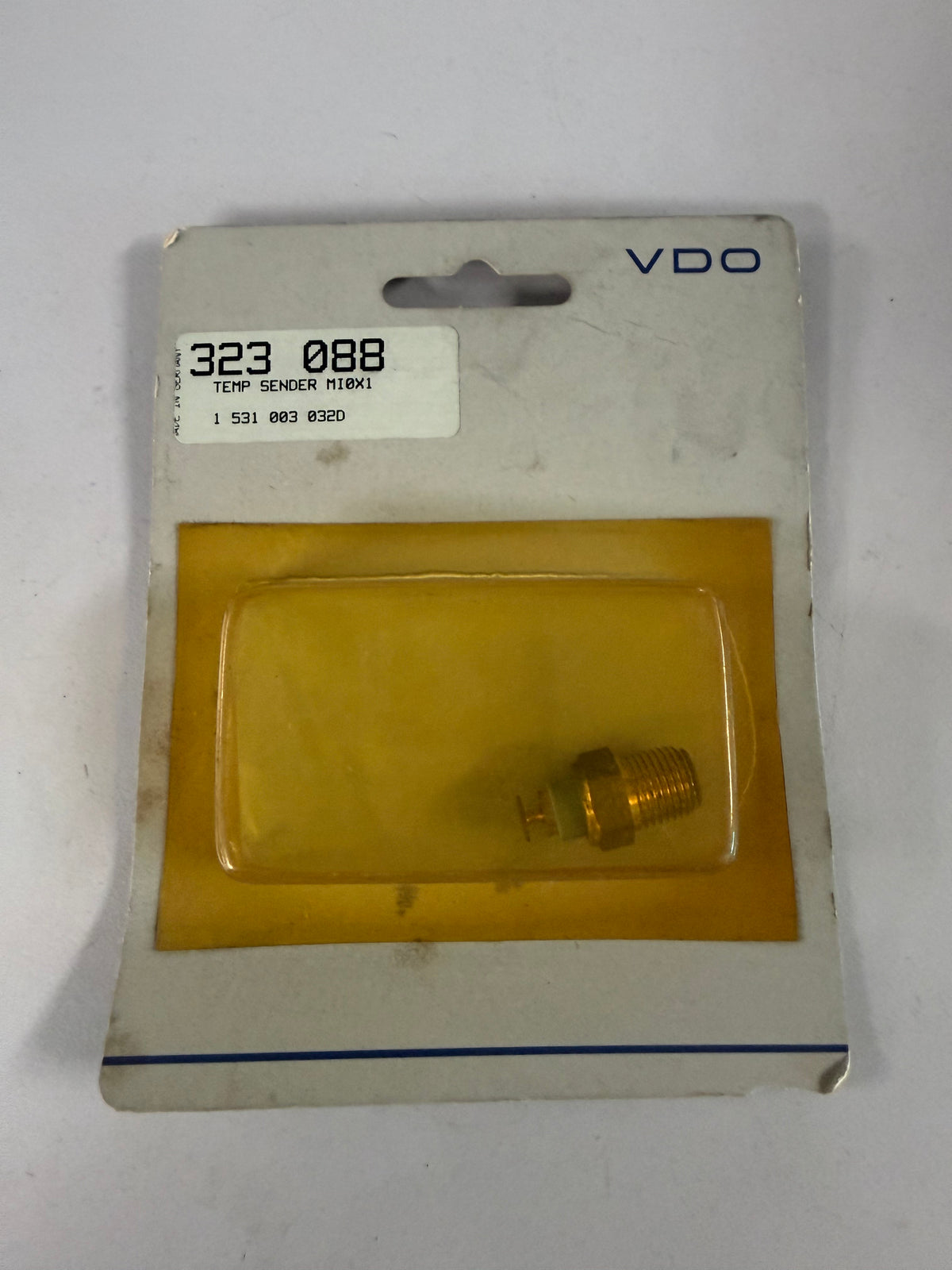

VDO 323-088 single-station electrical water temperature sending unit

VDO 323-088 single-station electrical water temperature sending unit

$30.84 USD
$30.84 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
Technical Specs
  • Thread Size: M10 x 1.0 (Straight/Parallel thread layout)
  • Temperature Range: Up to 250°F / 120°C
  • Electrical Connection:


    Single 1-pin .250" Male Spade terminal
  • Resistance Curve: 287.4 Ω (at low scale) to 22.7 Ω (at max scale) (Note: This specific resistance curve is uniquely calibrated to match 250°F / 120°C dashboard water temperature gauges).
  • Grounding: Standard chassis grounding through the sensor body
