Lauderdale Speedometer & Compass

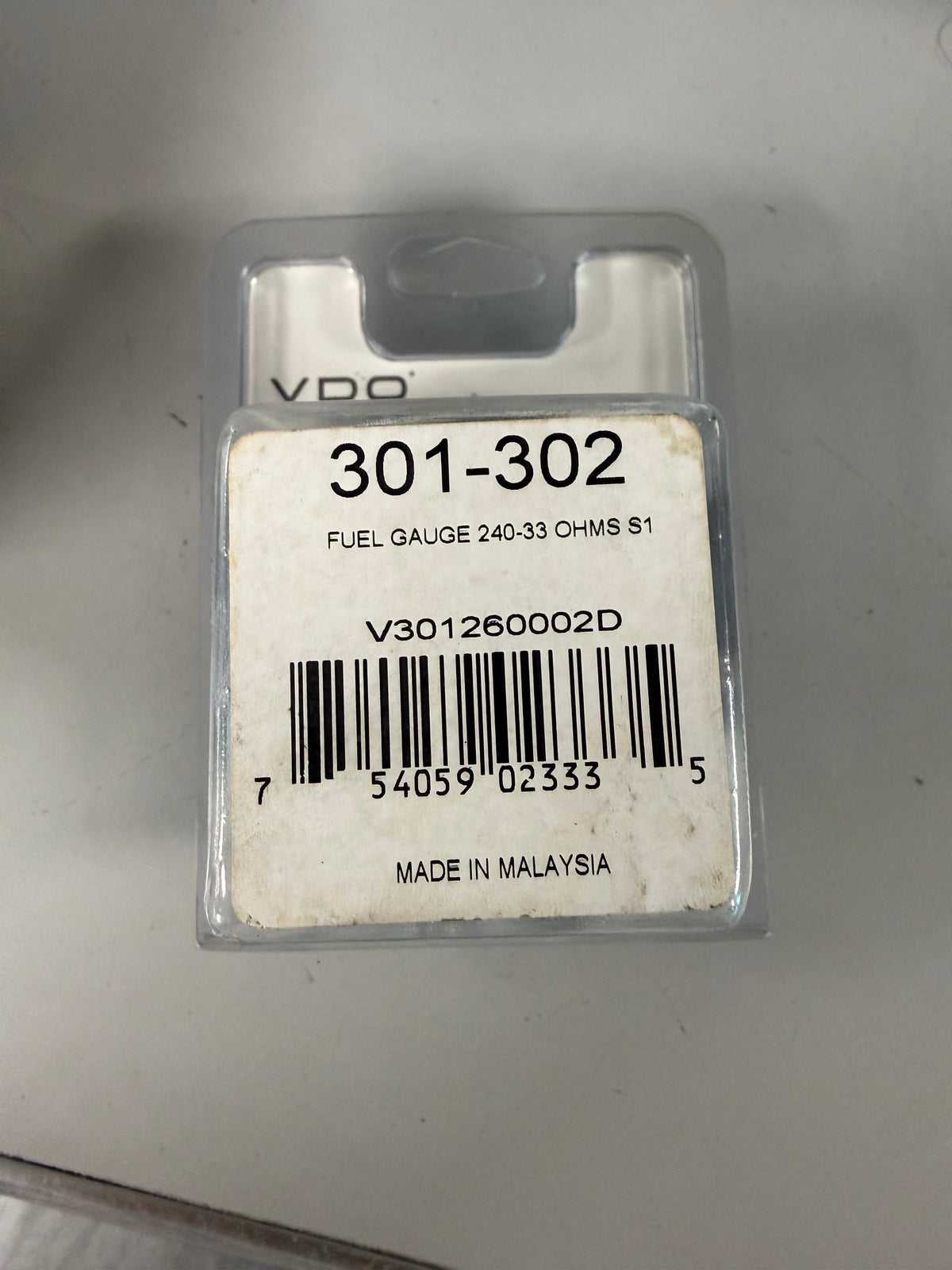

VDO 301-302 Series 1 (S1) Electrical Fuel Level Gauge configured for standard US sending units
VDO 301-302 Series 1 (S1) Electrical Fuel Level Gauge configured for standard US sending units
No reviews
Normaler Preis
$48.99 USD
Normaler Preis
Verkaufspreis
$48.99 USD
Versand wird beim Checkout berechnet
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
Core Technical Specifications
- Series: Series 1 (S1) [1]
- Gauge Type: Electrical Fuel Level [1]
- Ohmic Operating Range: 240Ω (Empty) to 33.5Ω (Full)—matching standard US universal fuel level senders. [1, 2]
- Diameter Size: Standard 2-1/16 inches (52mm metric cutout). [1]

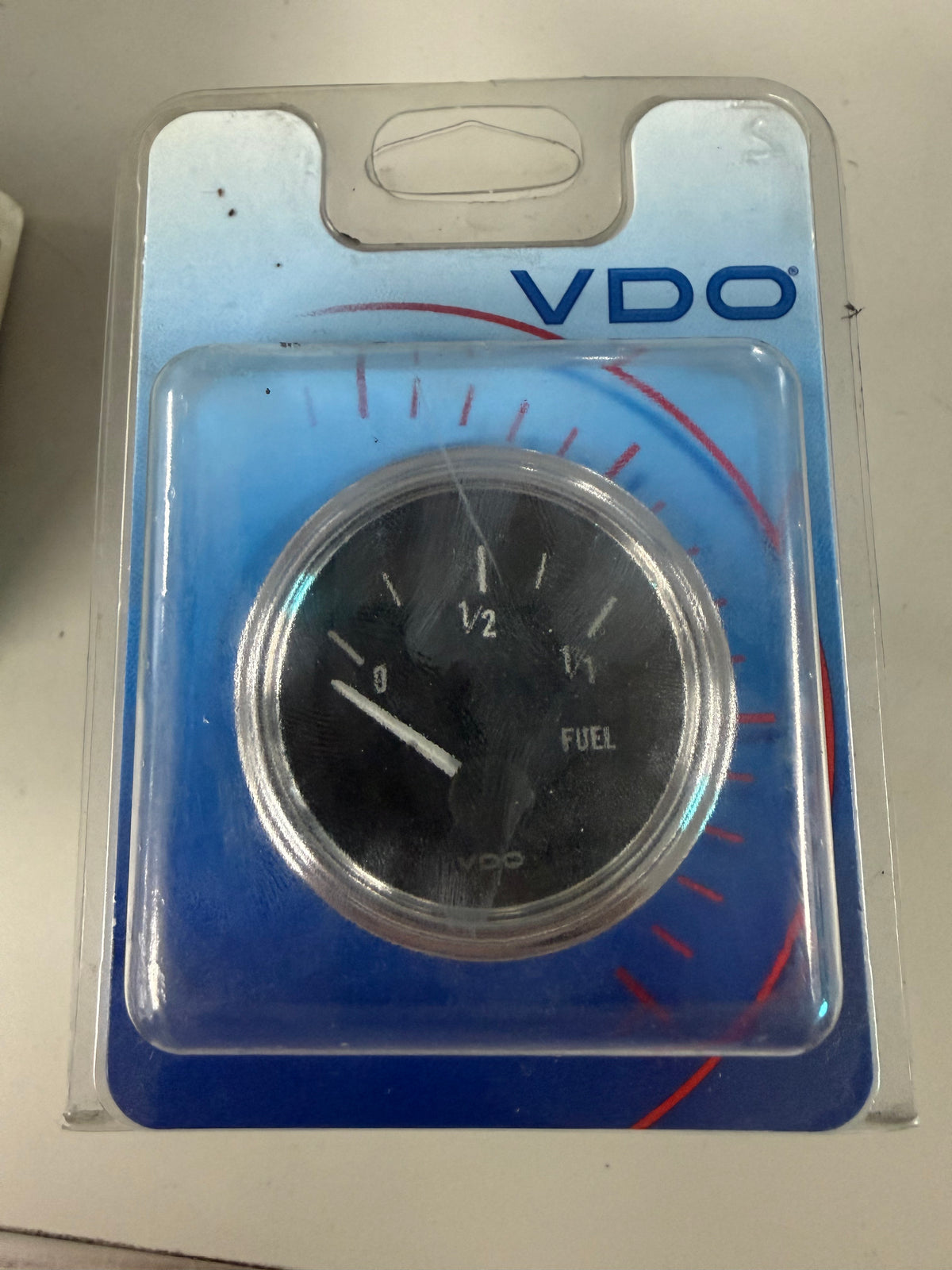

- Display Range: Short sweep analog layout reading Empty – 1/2 – Full (0 - 1/2 - 1/1). [1]
- Operating Voltage: 12V DC (standard edge-lit dial illumination). [1, 2]
- Vintage Design Profile: Features a matte black dial face, crisp white graphics, a stark white pointer needle, and a signature stepped chrome brass bezel. [1, 2]
- Housing & Connections: Rugged zinc-plated steel housing built with rigid M4 stud-type electrical connectors and a metal rear U-bracket mounting solution. [1, 2]
